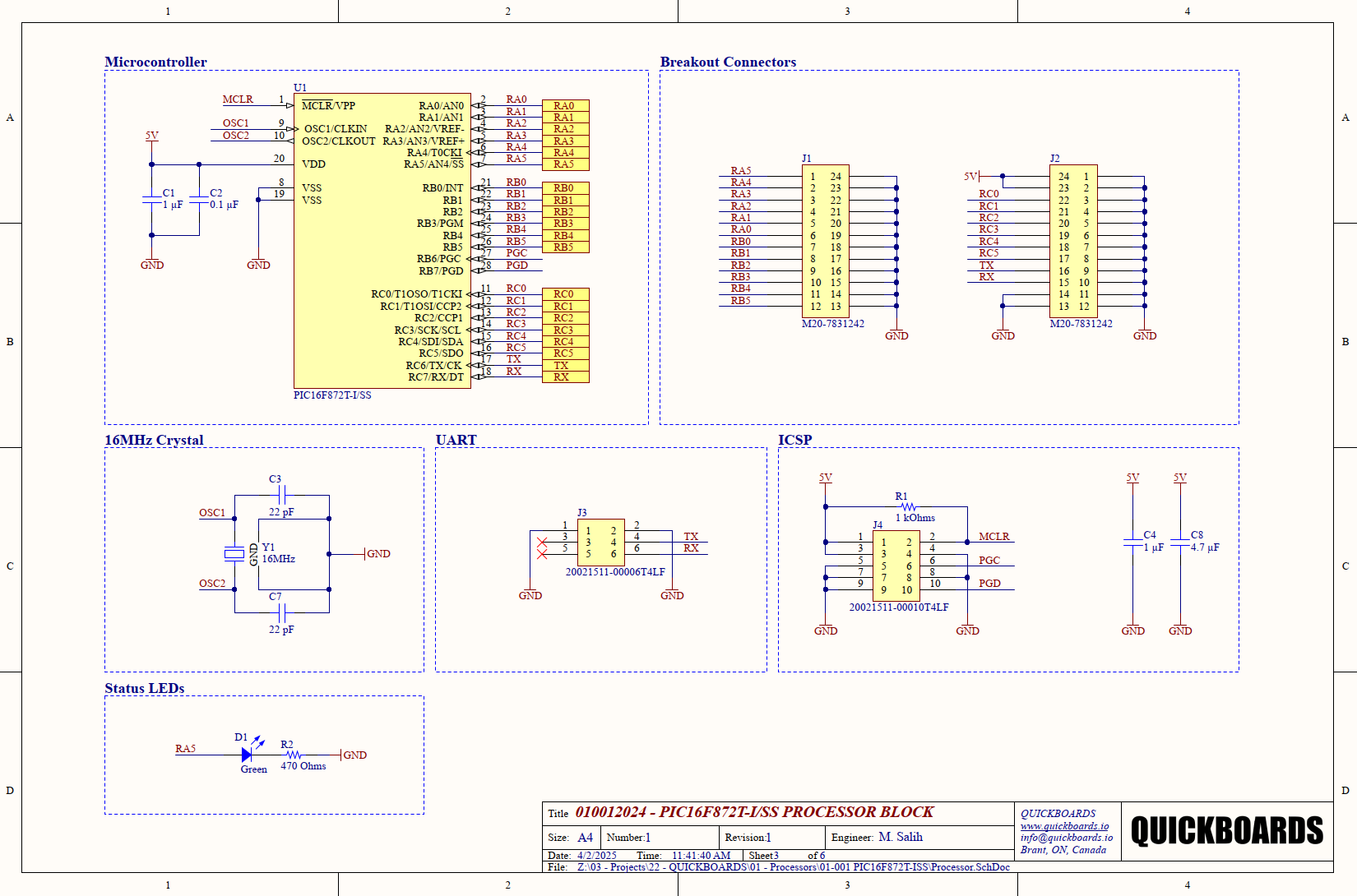

SB010012024 – PIC16F SCHEMATIC BLOCK

This schematic block features an 8-bit microcontroller from Microchip Technology’s PIC16F series, one of the most widely used microcontroller families for entry-level embedded designs and general-purpose control applications. Operating at 20 MHz, it integrates 3.5 KB of Flash memory, 128 bytes of RAM, and 128 bytes of EEPROM, providing just enough resources for compact, cost-sensitive projects.

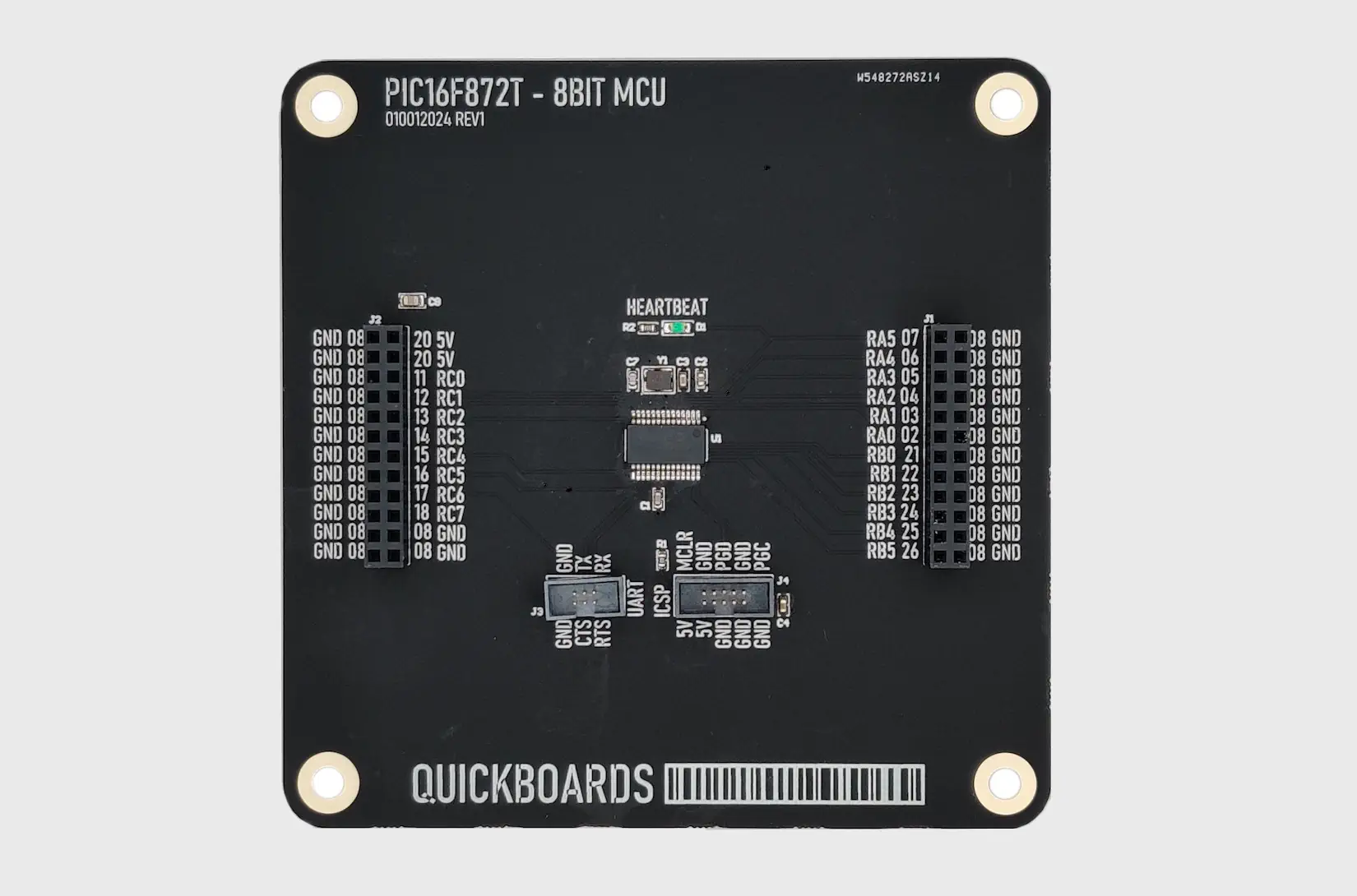

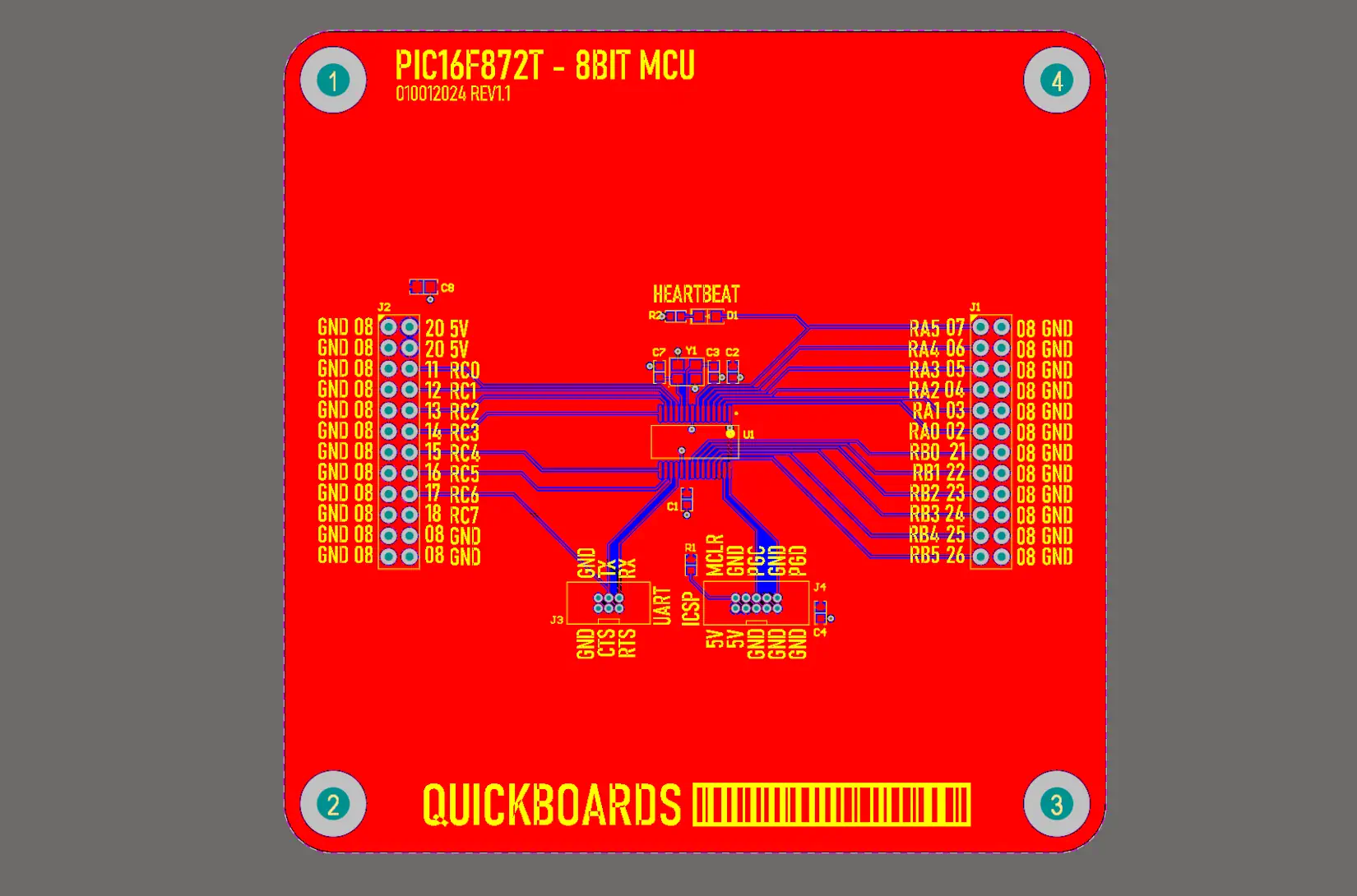

Packaged in a breakout board format, this block simplifies prototyping with a dedicated UART port for serial communication and an ICSP (In-Circuit Serial Programming) port for convenient programming and debugging.

The PIC16F family has been a trusted choice for decades thanks to its simplicity, low cost, and long production history, making it an excellent option for engineers, students, and makers who need reliable, lightweight control functionality in their designs.

Key Features:

• 8-bit PIC16F microcontroller operating at 20 MHz
• 3.5 KB Flash, 128B RAM, 128B EEPROM
• Breakout board configuration for quick prototyping
• Dedicated UART interface for serial communication
• ICSP port for programming and debugging
• Proven architecture with broad ecosystem support

Typical Applications:

• Consumer electronics controllers
• Educational projects and prototyping platforms
• Small robotics and motor drivers
• IoT nodes and sensor interfacing
• LED lighting and automation systems

By integrating this Quickboards schematic block, engineers can accelerate development, reduce design complexity, and take advantage of a reference-ready design that works seamlessly with MPLAB X IDE and the XC8 compiler toolchain.
