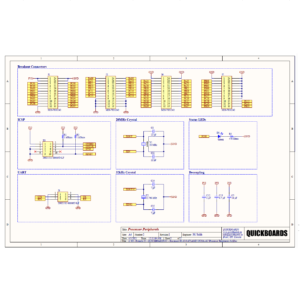

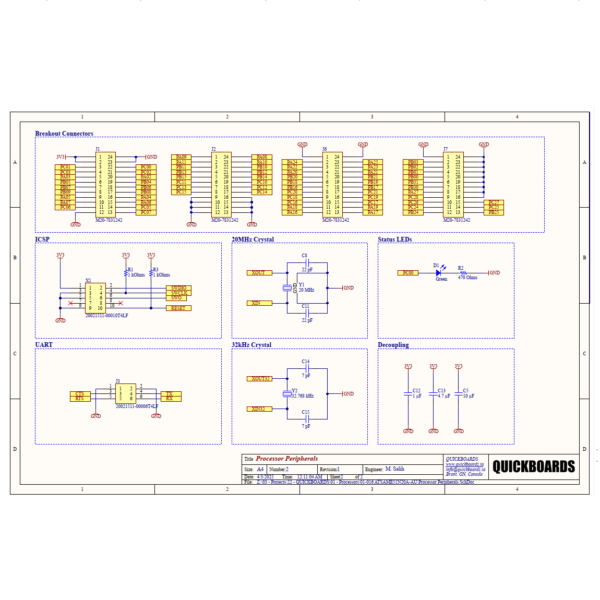

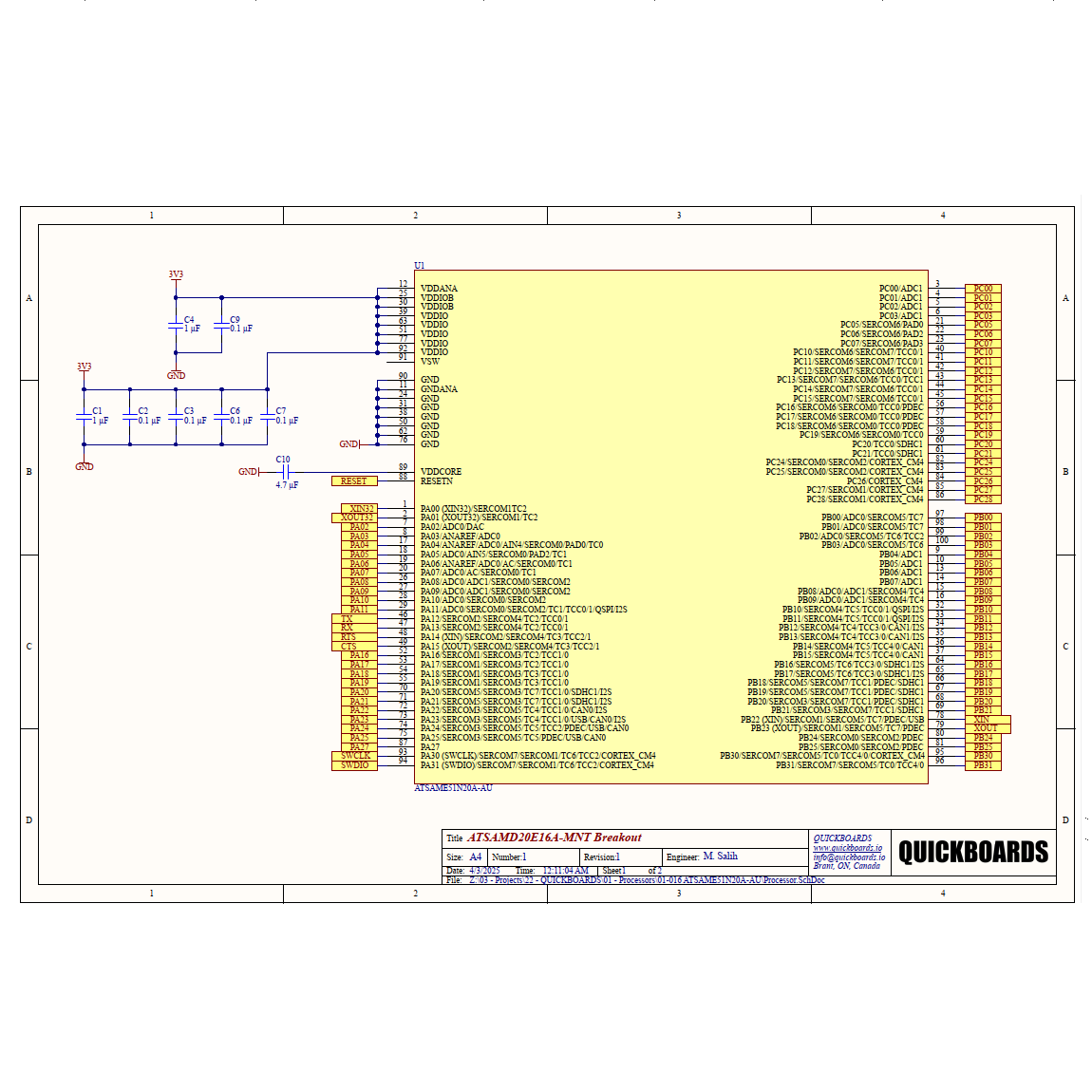

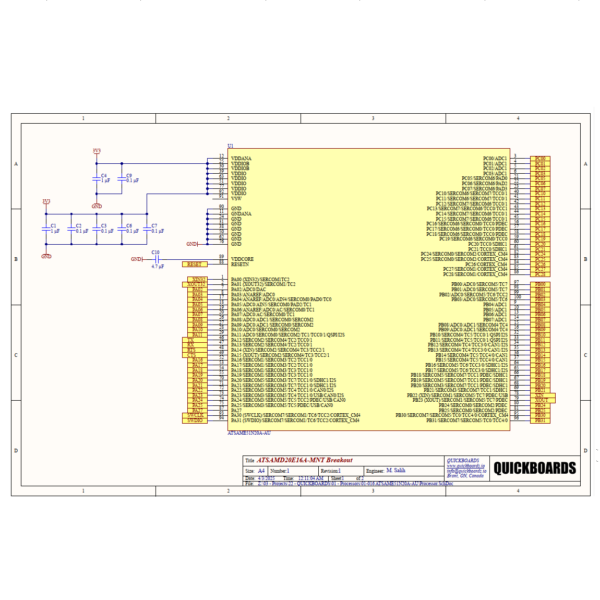

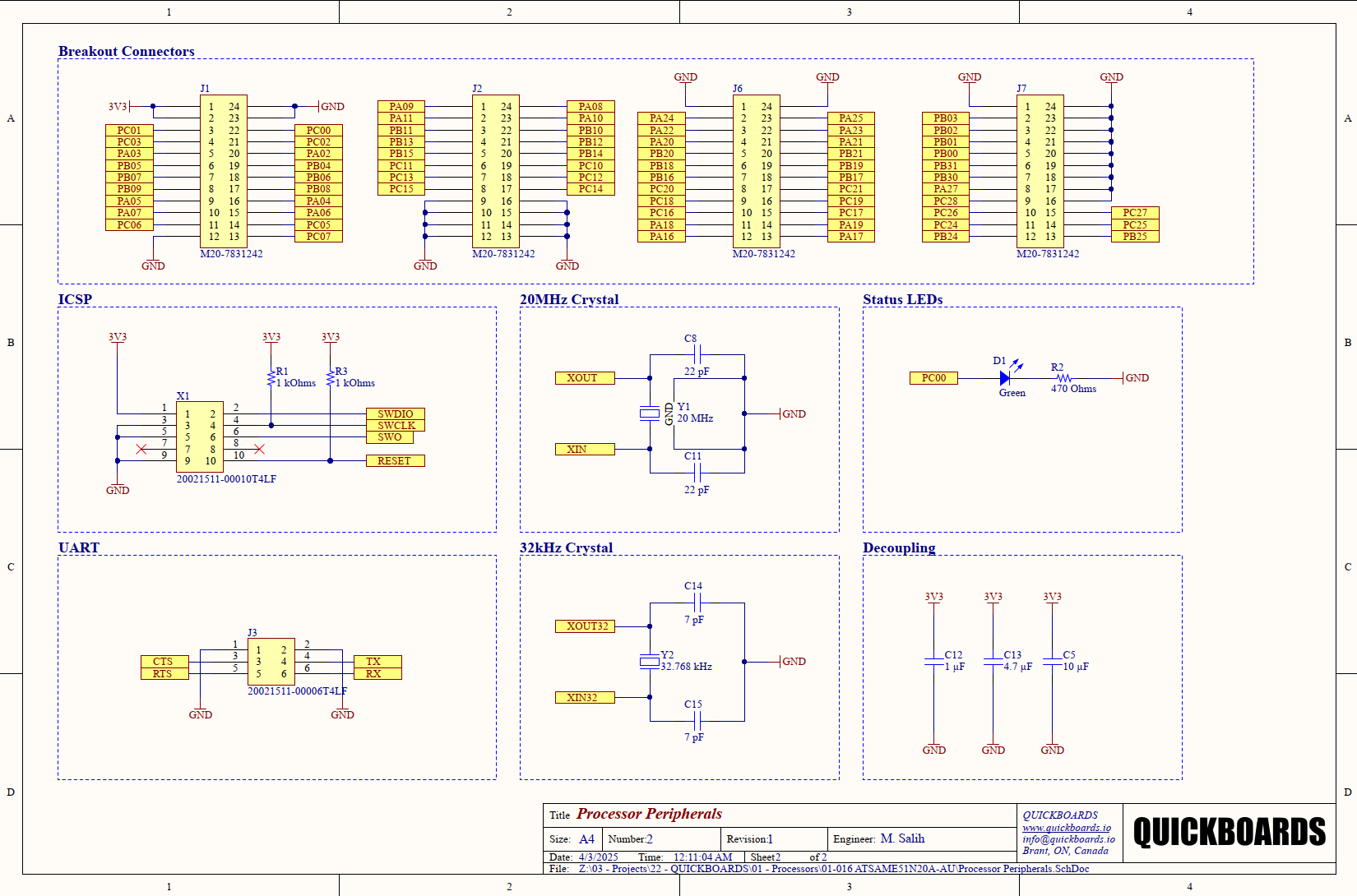

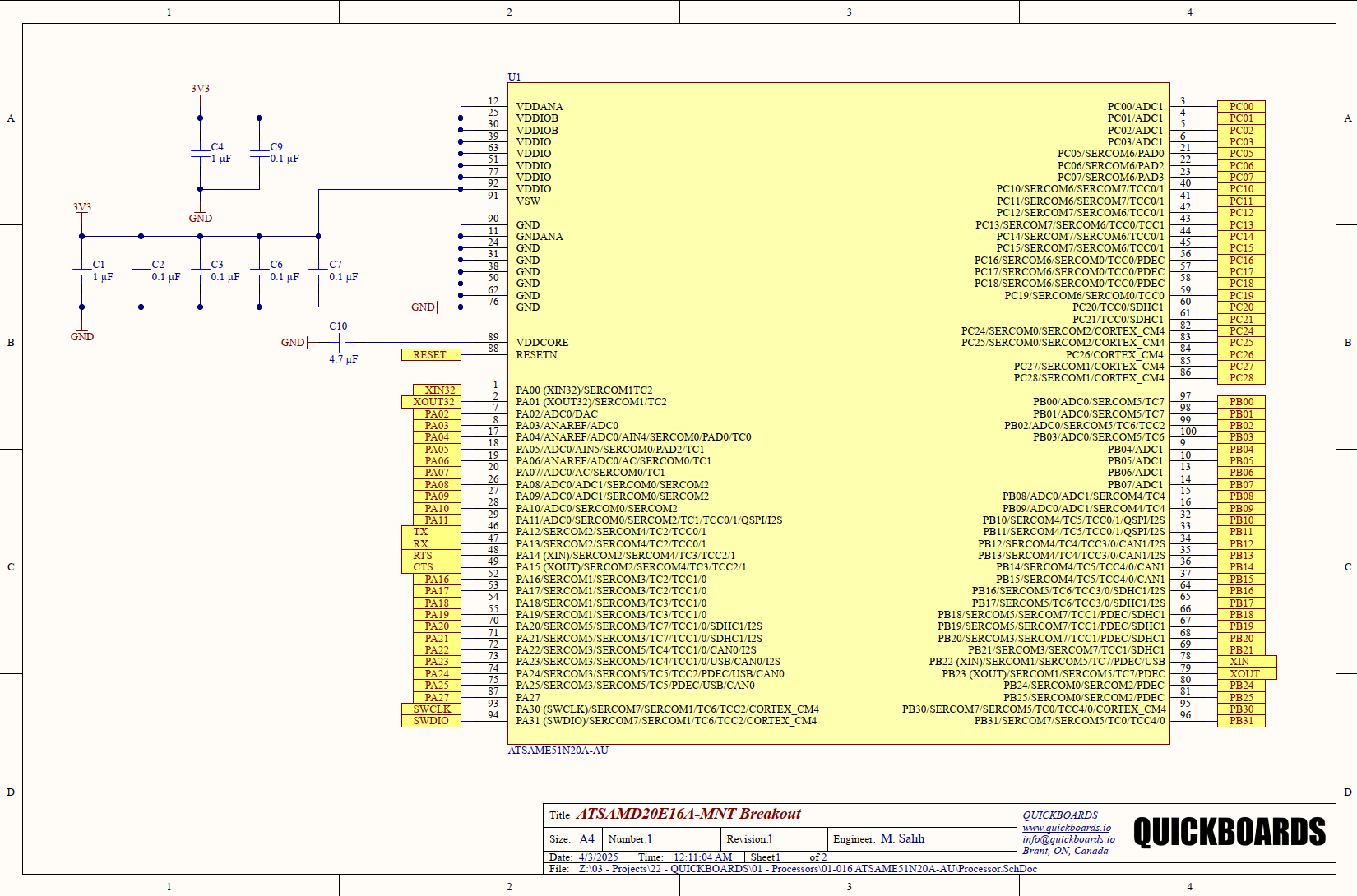

SB010162024 – ATSAME51 SCHEMATIC BLOCK

This schematic block features a 32-bit microcontroller from Microchip Technology’s SAM E51 series, powered by an ARM® Cortex®-M4F core. Running at up to 120 MHz, it delivers high performance with integrated floating-point support, enabling efficient execution of signal processing, control algorithms, and real-time applications.

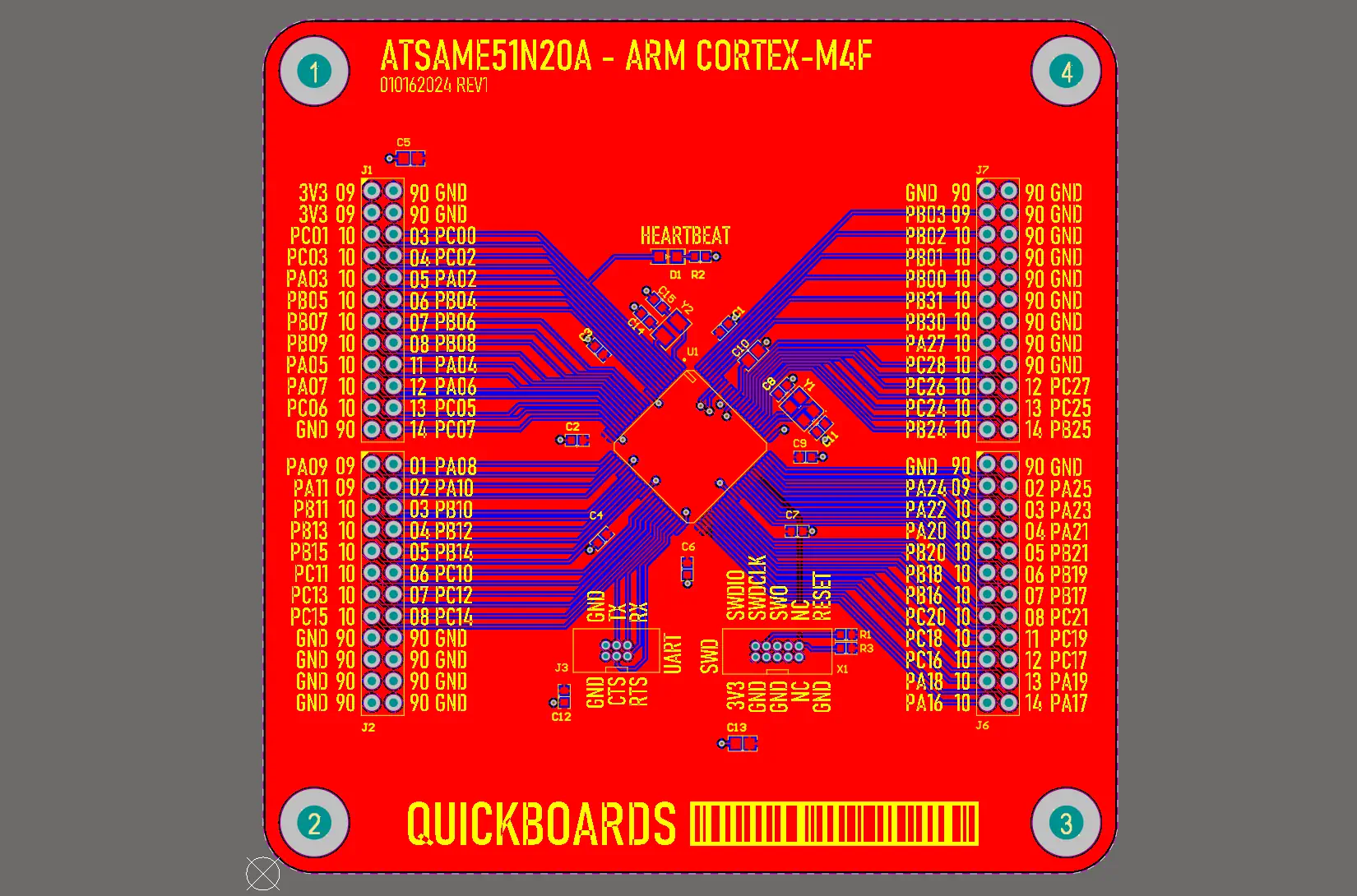

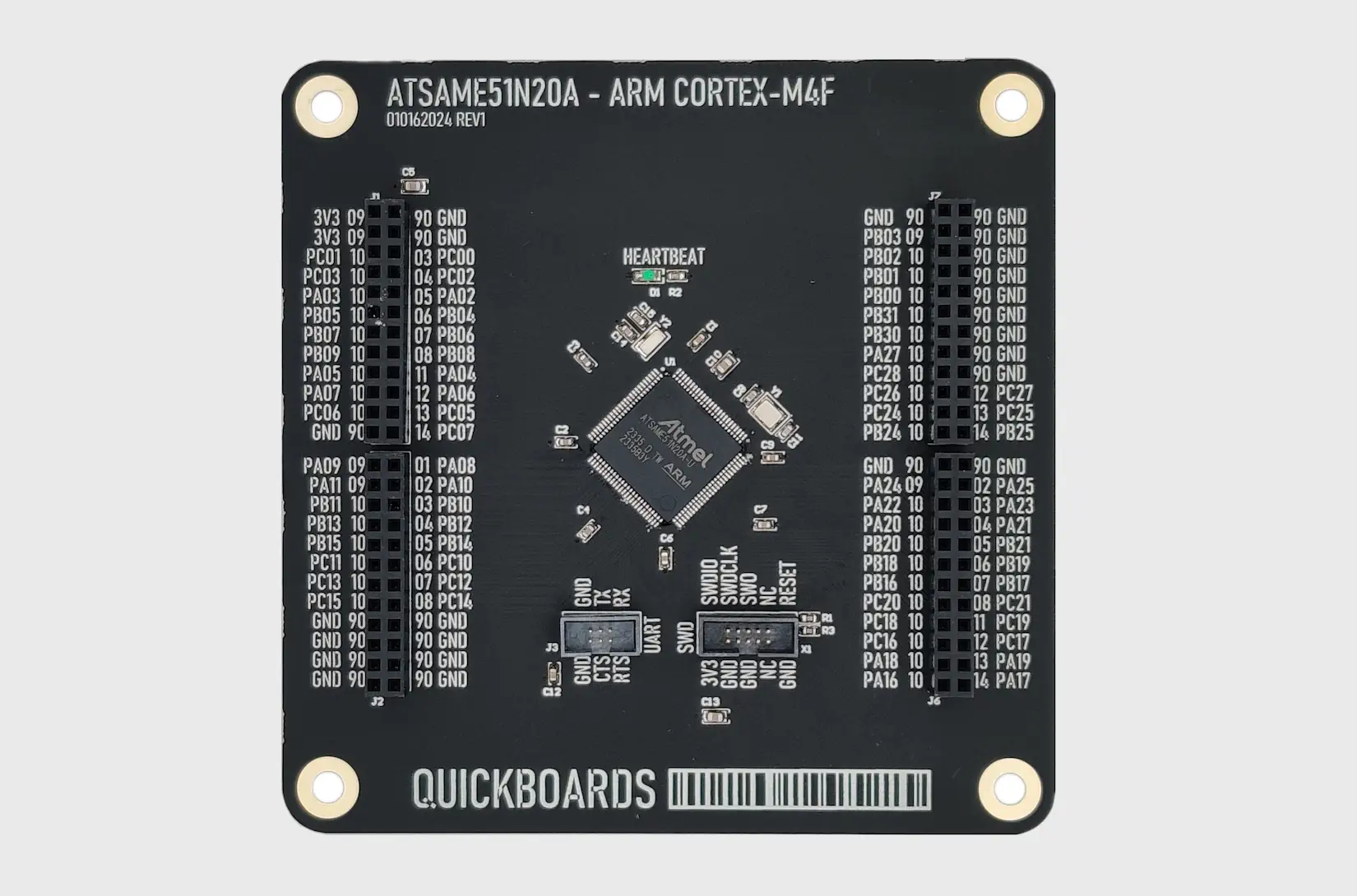

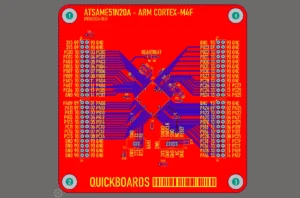

The device includes 1 MB of Flash memory and 256 KB of RAM, providing ample resources for complex embedded software stacks, communications, and security layers. Packaged in a breakout board configuration, this block offers a dedicated UART port for serial communication and an SWD (Serial Wire Debug) interface for programming and debugging.

The SAM E51 series is known for its advanced peripherals, robust security features, and scalable performance, making it an ideal platform for modern embedded applications where reliability, speed, and connectivity are essential.

Key Features:

• 32-bit SAM E51 microcontroller with ARM® Cortex-M4F core
• Operates at up to 120 MHz with floating-point support
• 1 MB Flash memory and 256 KB RAM
• Breakout board design for easy prototyping
• Dedicated UART port for communications
• SWD interface for programming and debugging
• Advanced peripheral set and integrated security features

Typical Applications:

• High-performance IoT devices
• Industrial automation and robotics
• Motor control and power electronics
• Secure communications and gateways
• Consumer electronics and smart appliances
• Data acquisition and signal processing

By using this Quickboards schematic block, engineers can accelerate embedded development, reduce integration risks, and leverage a proven reference design that supports MPLAB X IDE, Atmel Studio, and ARM toolchains for seamless development.
