SB010042024 – PIC32MX SCHEMATIC BLOCK

32-bit microcontroller from Microchip Technology’s PIC32MX series, operating at 80MHz with 512KB Flash memory and 128KB RAM, offering extensive connectivity options, housed in a breakout board with dedicated UART and ICSP Program ports.

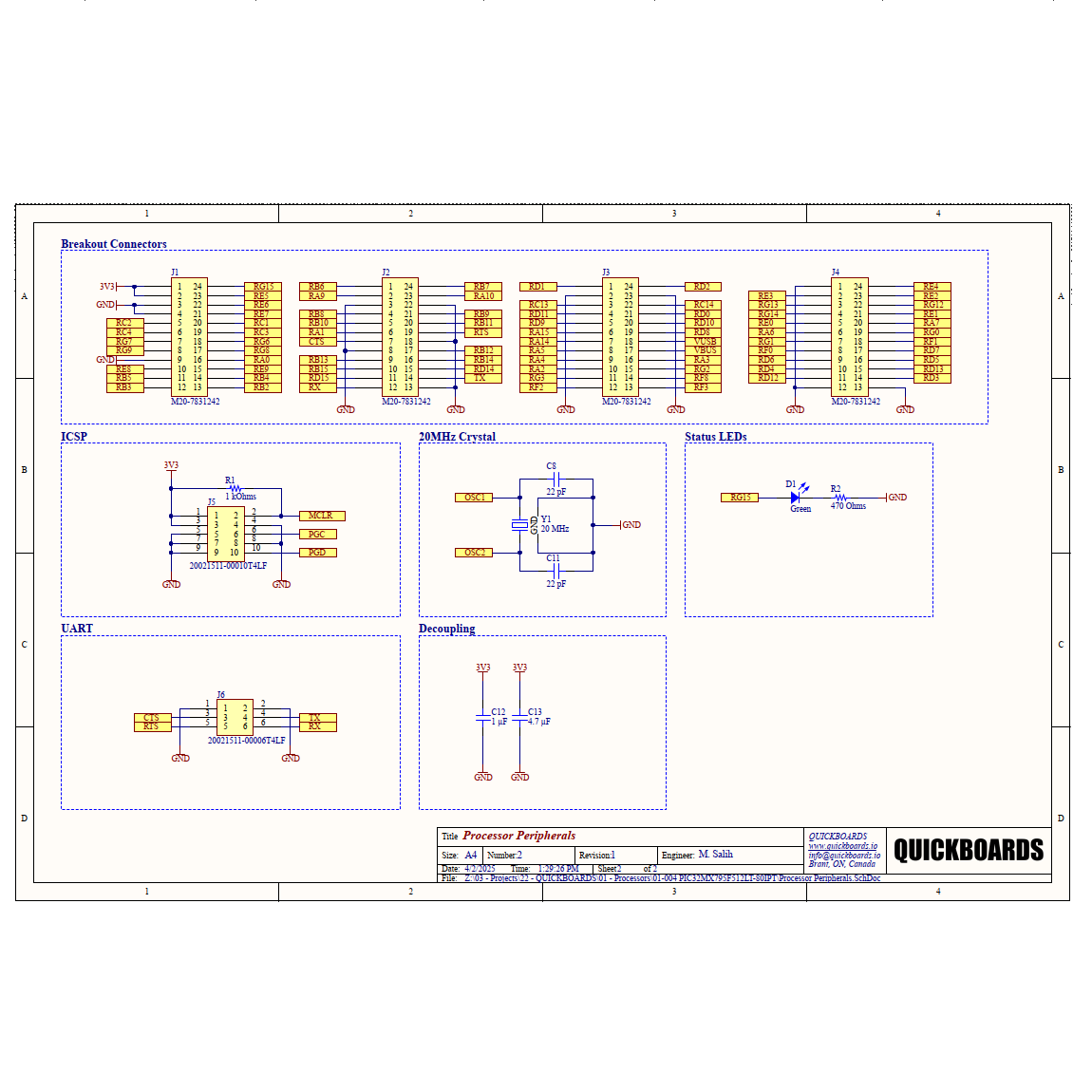

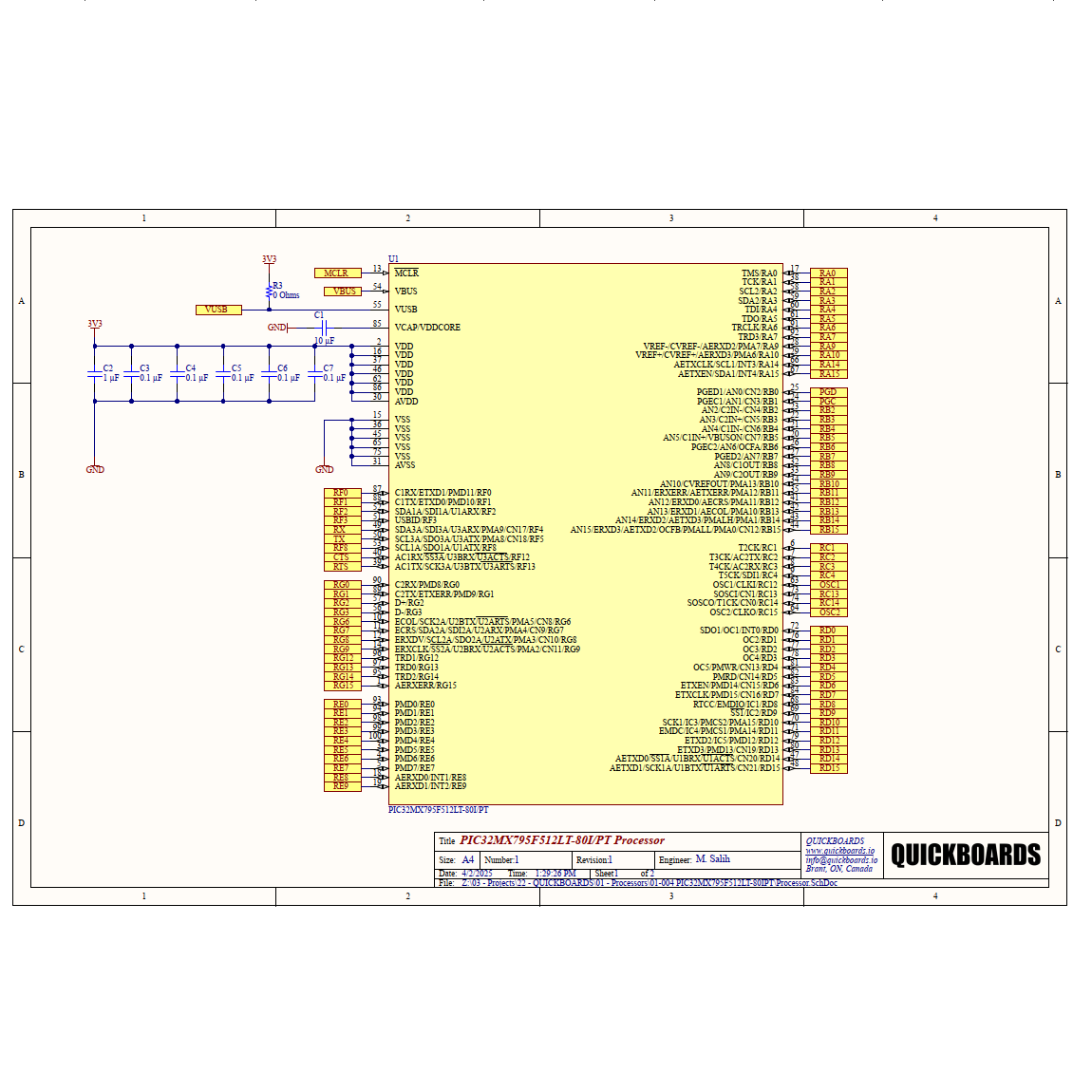

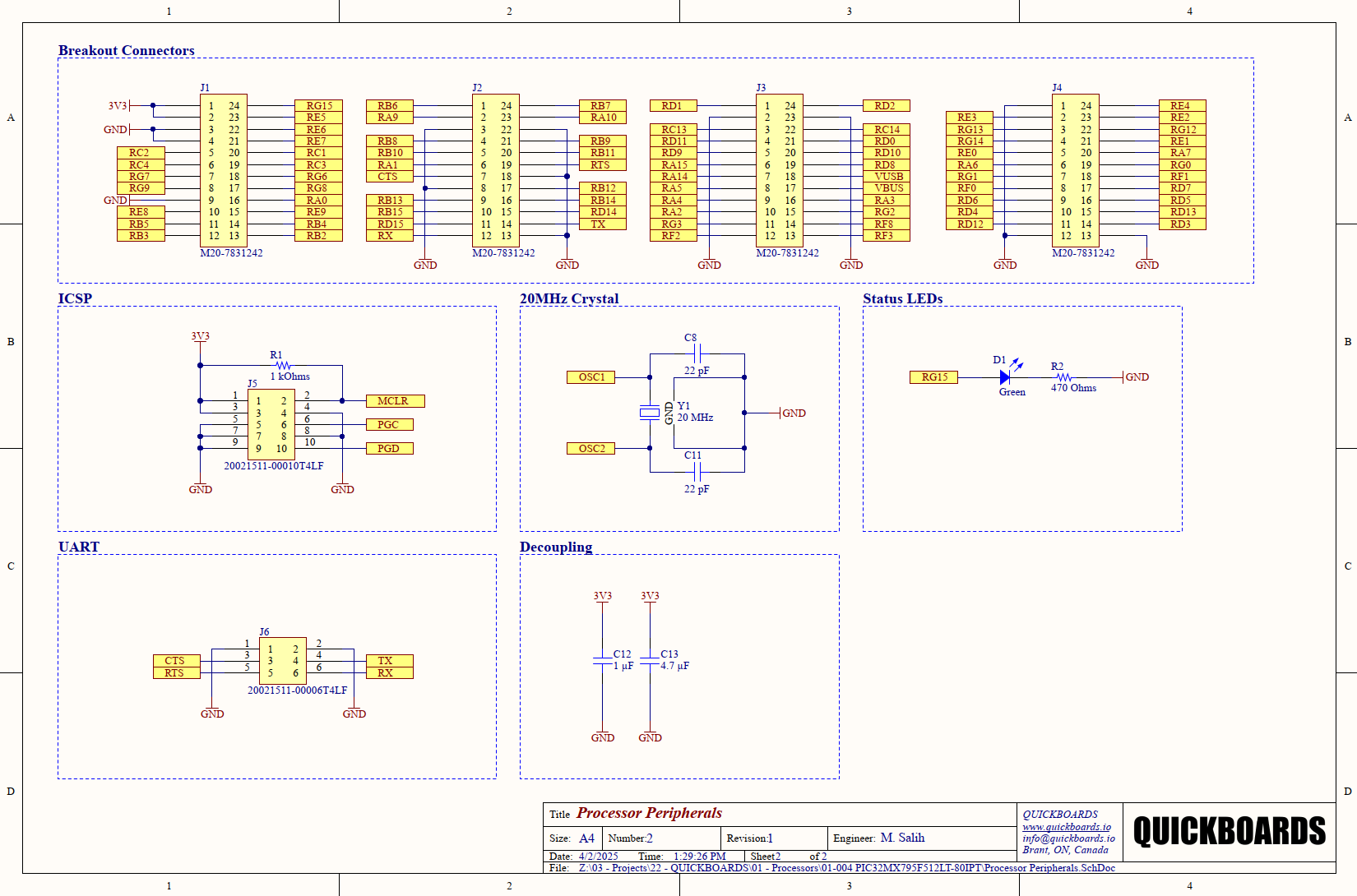

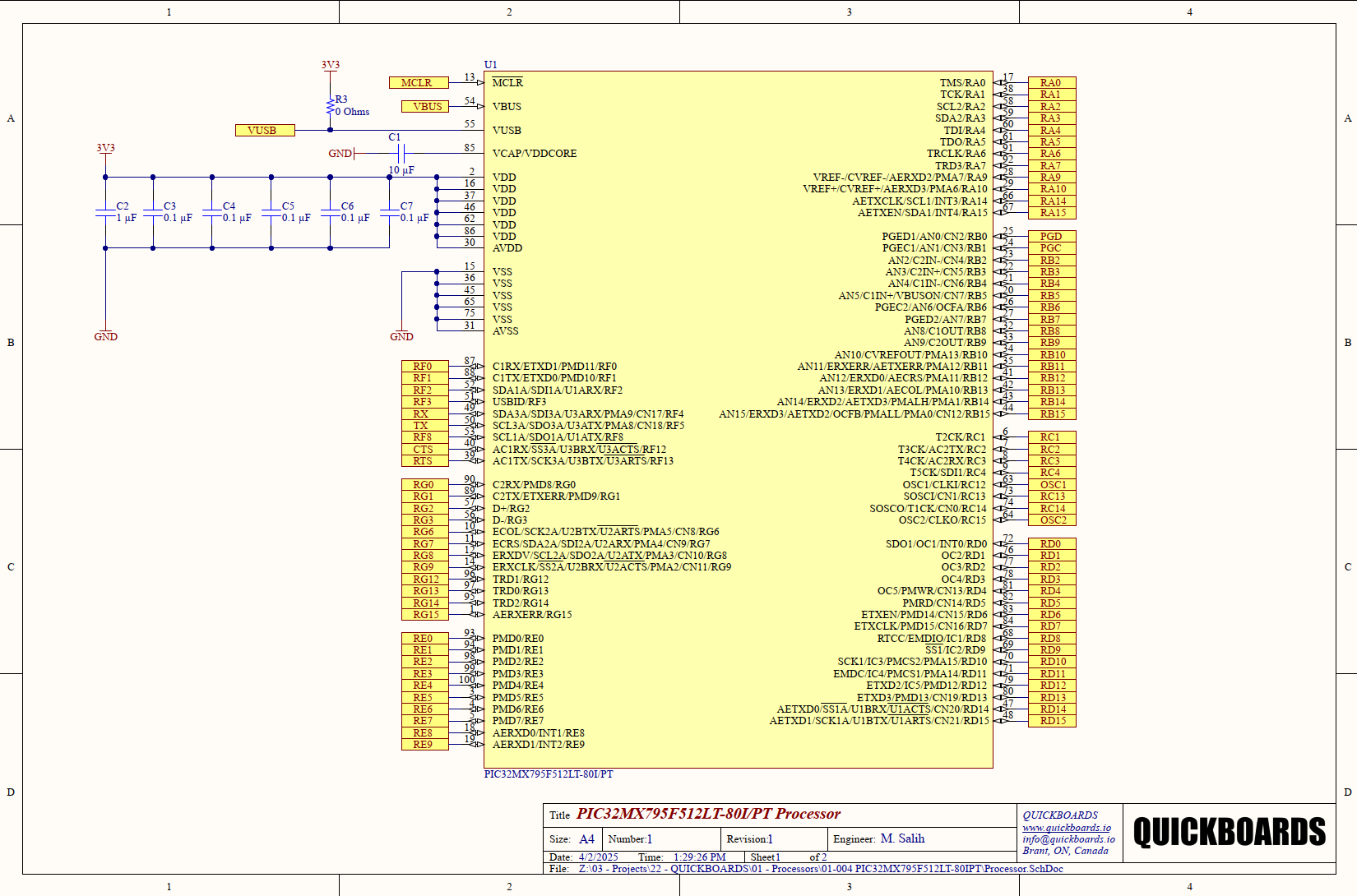

This schematic block features a 32-bit microcontroller from Microchip Technology’s PIC32MX series, designed for high-performance embedded applications that demand speed, memory, and connectivity. Running at 80 MHz, it integrates 512 KB of Flash memory and 128 KB of RAM, providing ample resources for complex real-time tasks, communication stacks, and advanced control algorithms.

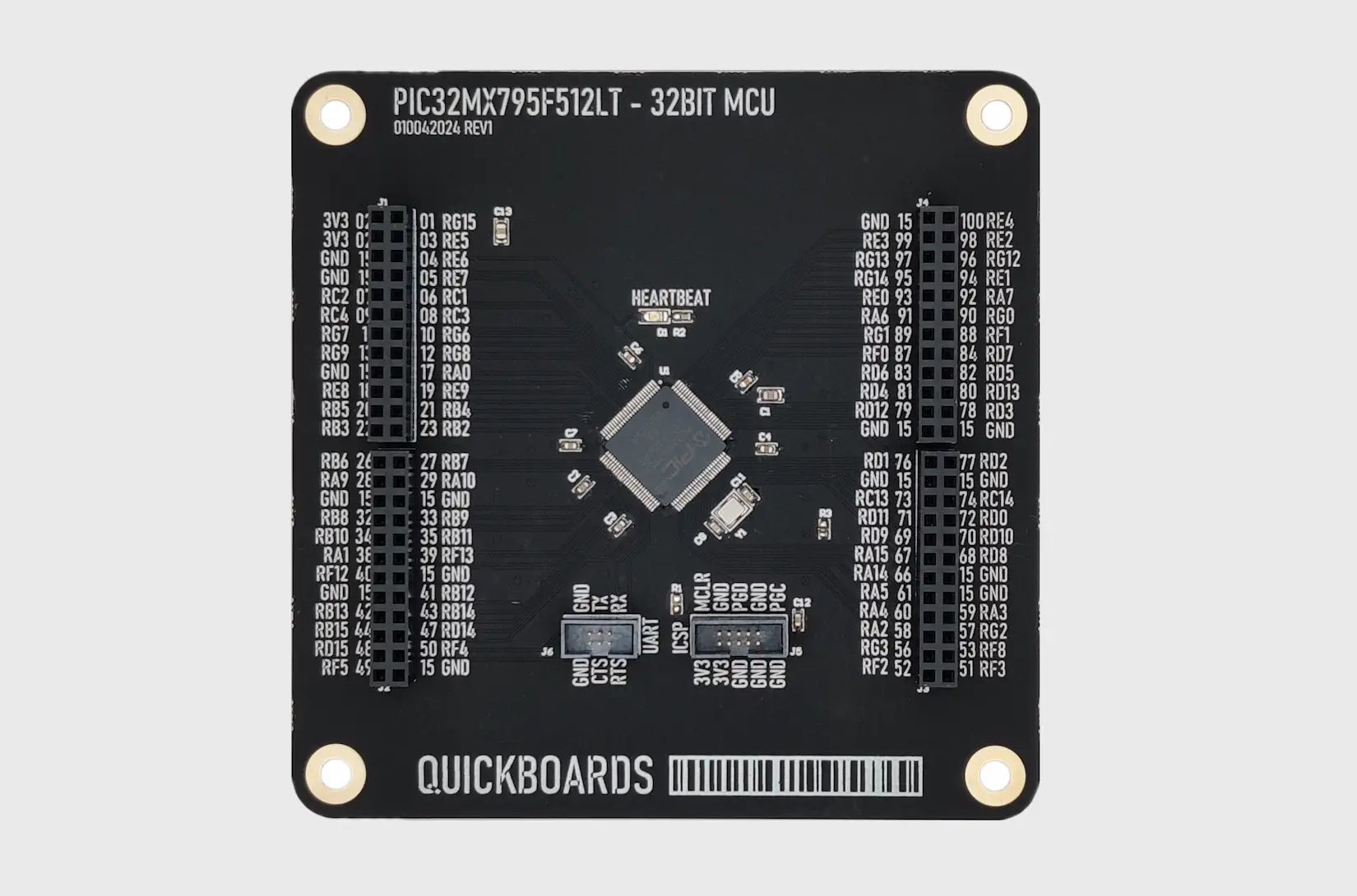

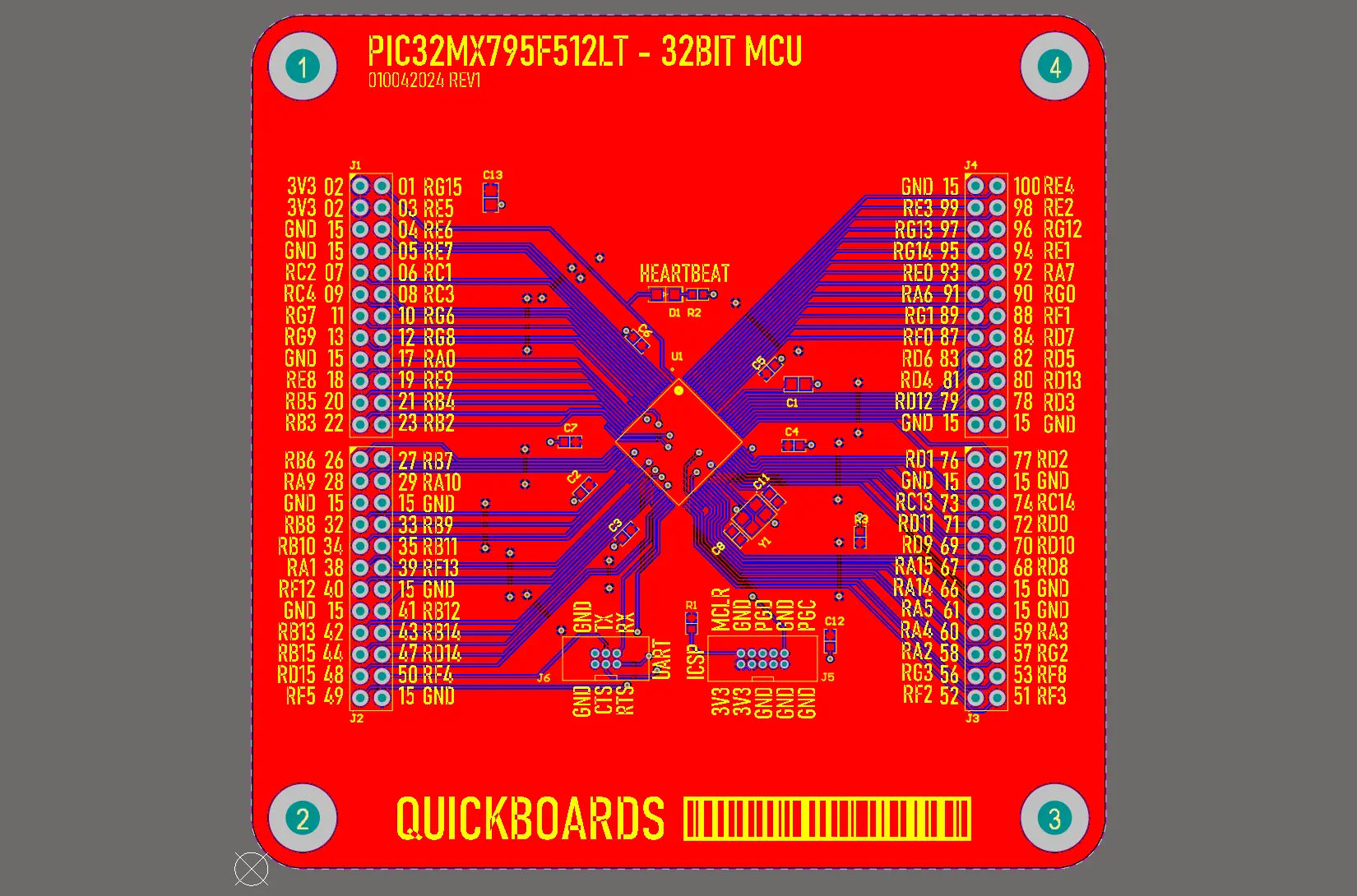

The block is provided in a breakout board configuration that simplifies integration into larger designs. It includes a dedicated UART interface for serial communication and an ICSP (In-Circuit Serial Programming) port for seamless debugging, programming, and firmware updates.

With its rich peripheral set and scalable performance, the PIC32MX series has been a long-standing choice for embedded engineers, offering reliability and long-term availability in production environments.

Key Features:

• 32-bit PIC32MX microcontroller running at 80 MHz
• 512 KB Flash and 128 KB RAM for complex applications
• Breakout board format for rapid prototyping
• Dedicated UART port for serial communication
• ICSP port for programming and debugging
• Proven architecture with broad industry adoption

Typical Applications:

• Embedded control systems
• Industrial automation
• Consumer electronics prototypes
• IoT edge devices and gateways
• Robotics and motor control
• Signal processing and data acquisition

By using this Quickboards schematic block, engineers can accelerate hardware development and quickly deploy firmware on a proven reference design — saving both time and cost while ensuring compatibility with existing toolchains like MPLAB X and Harmony frameworks.
