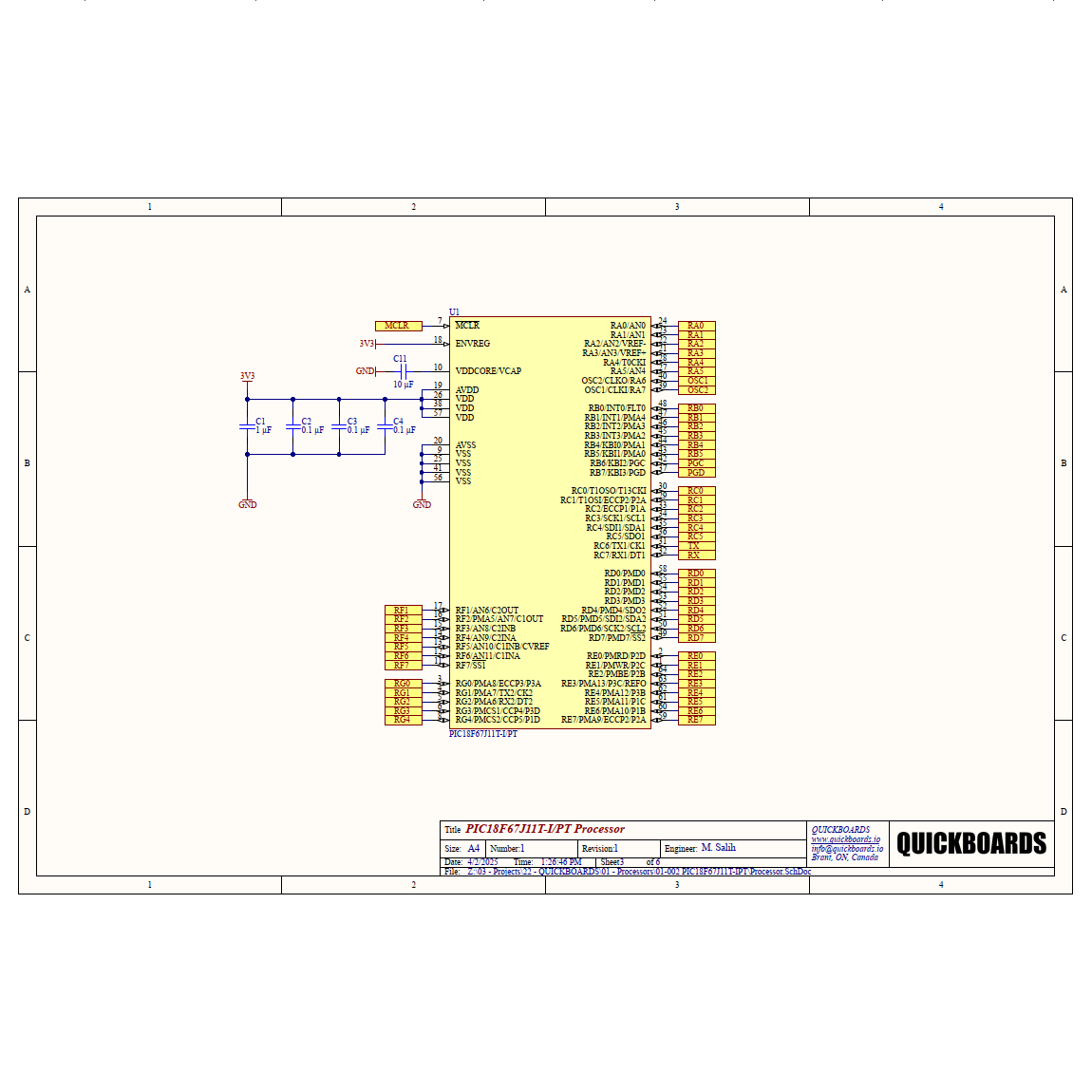

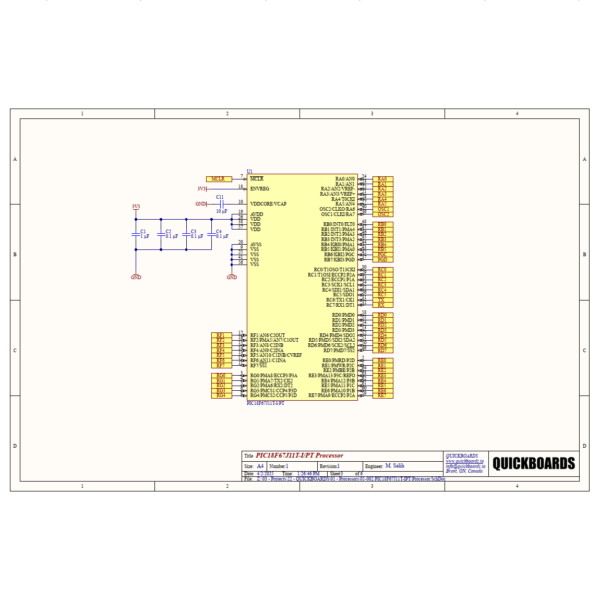

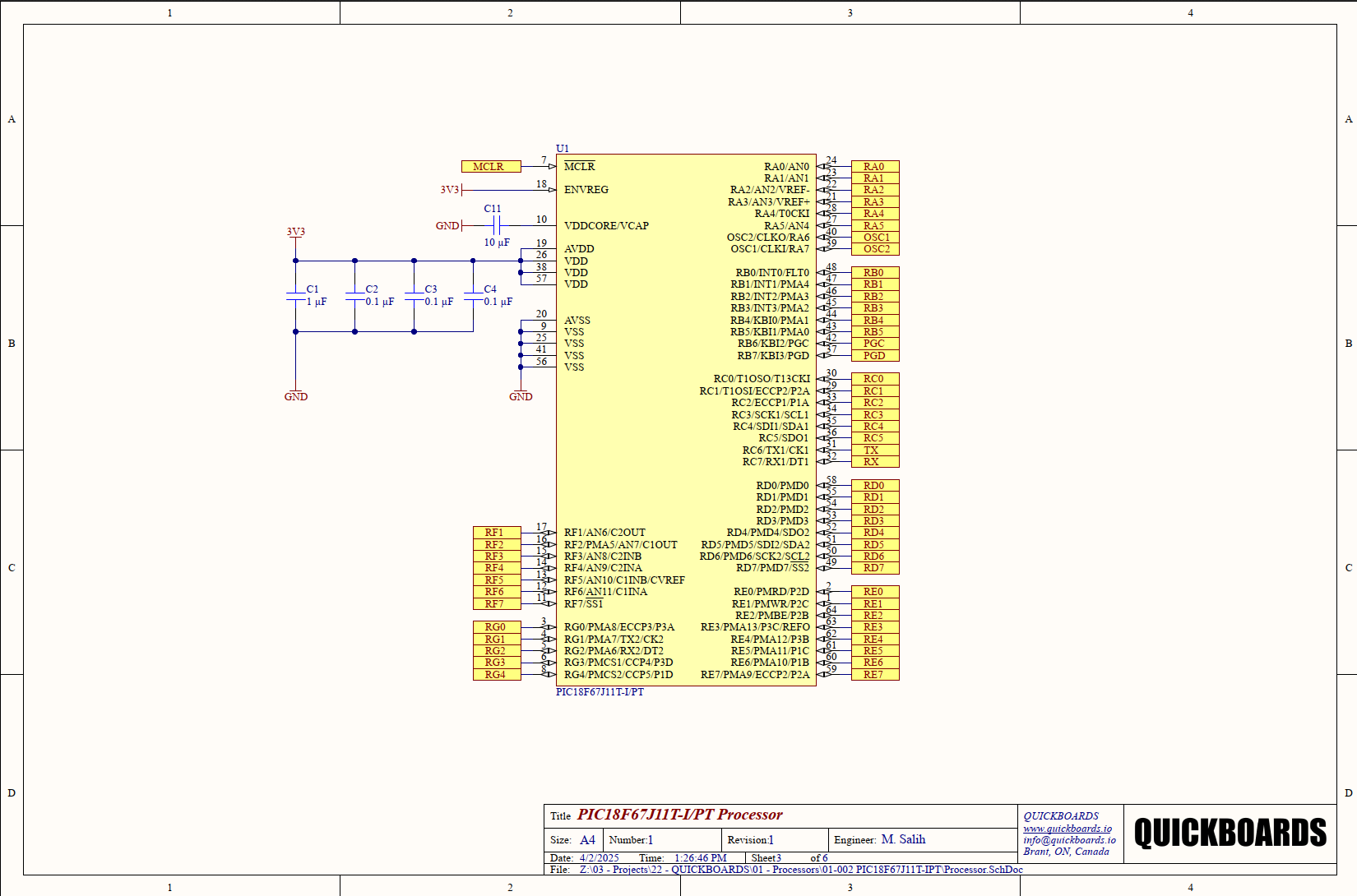

SB010022024 – PIC18F SCHEMATIC BLOCK

This schematic block features an 8-bit microcontroller from Microchip Technology’s PIC18F series, a proven family of devices trusted for robust embedded control and communication applications. Running at up to 48 MHz, it integrates 128 KB of Flash memory and 3.8 KB of RAM, providing the resources needed for handling communication stacks, peripheral management, and real-time control tasks.

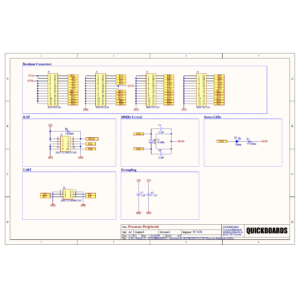

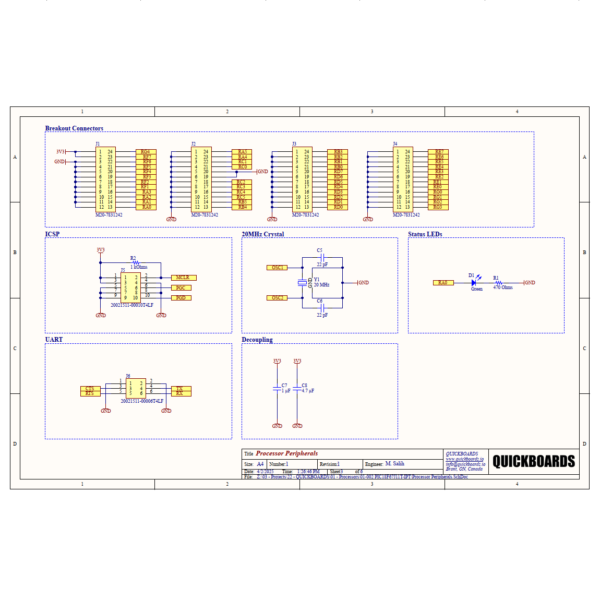

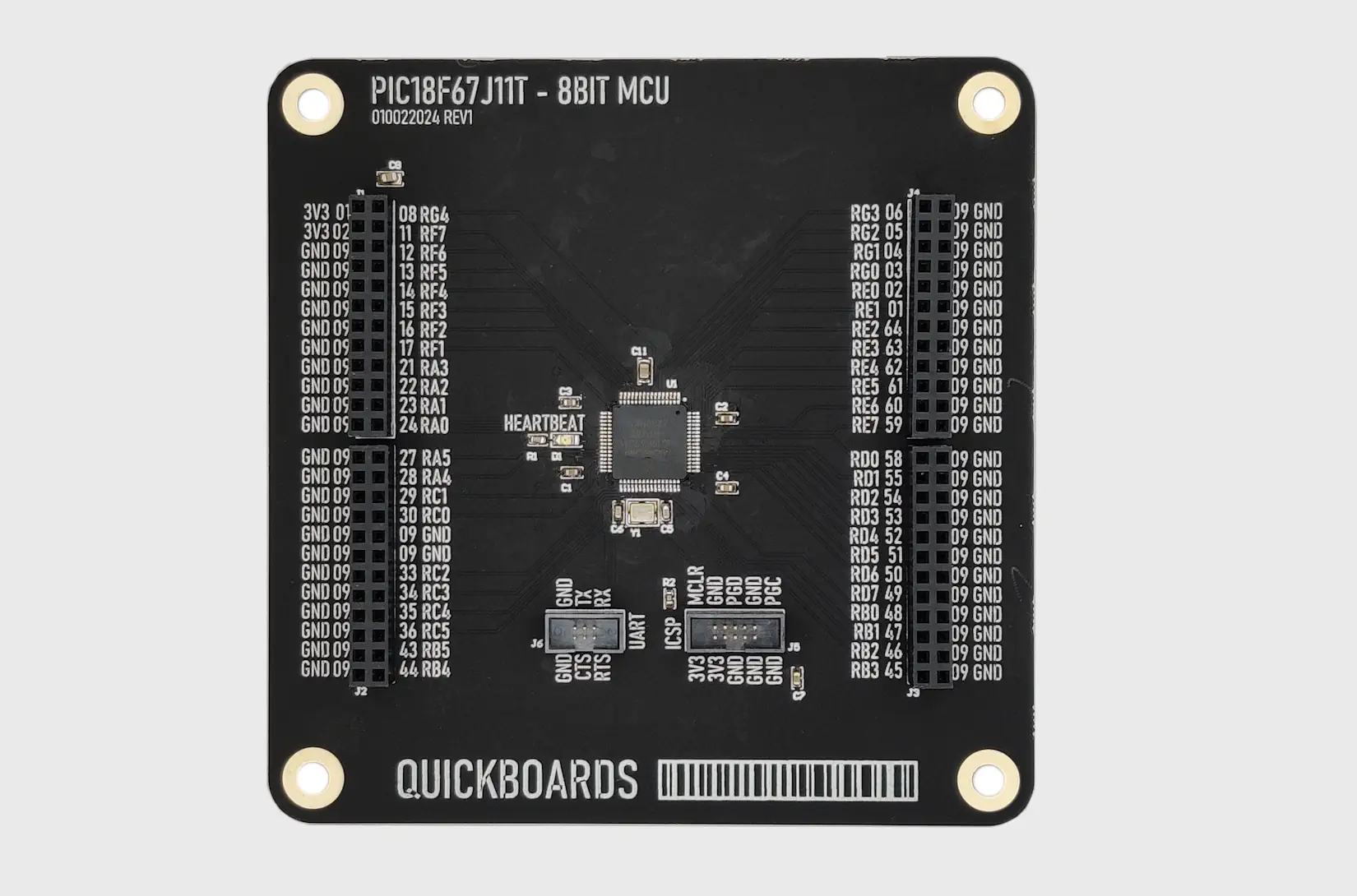

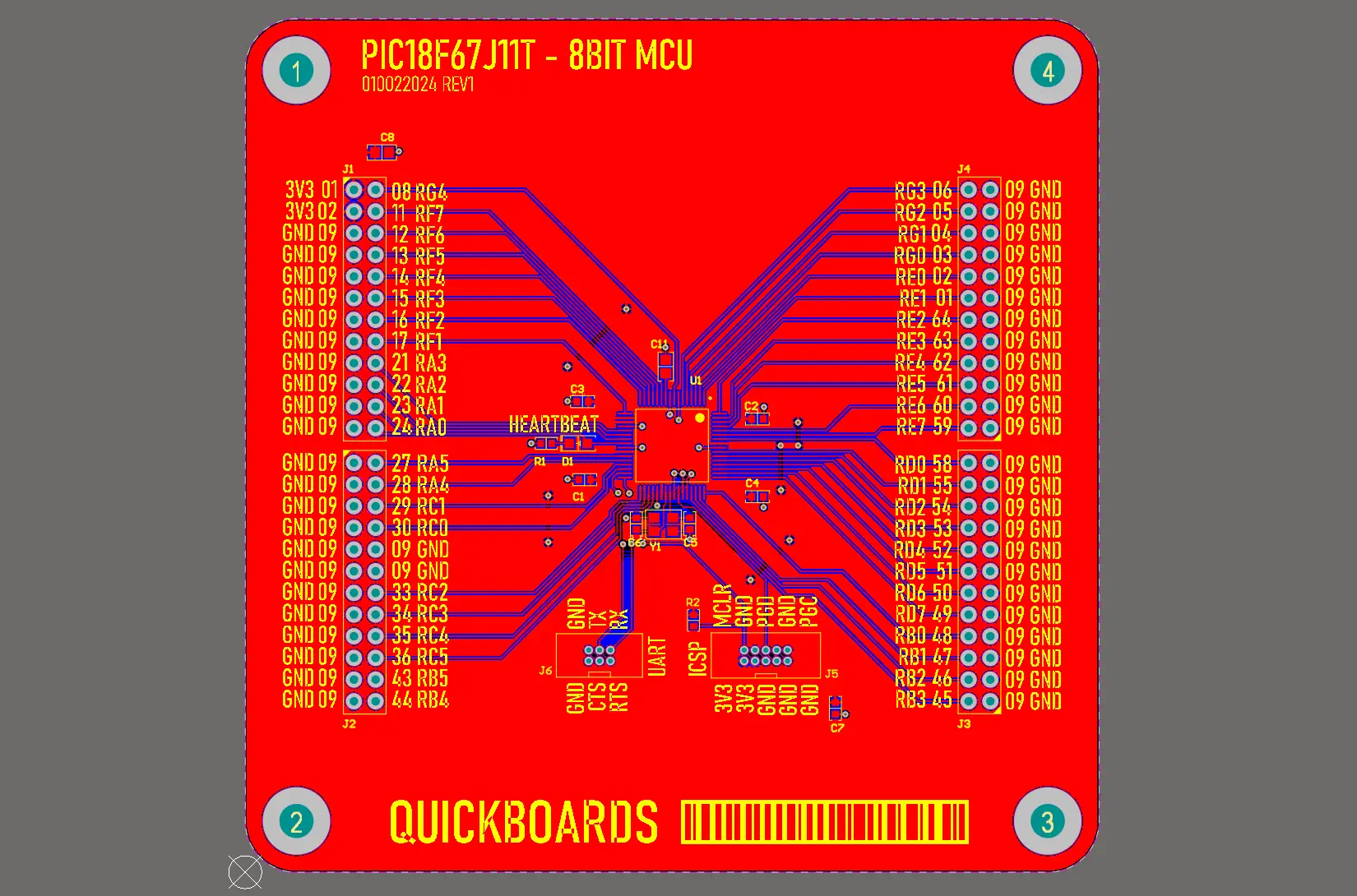

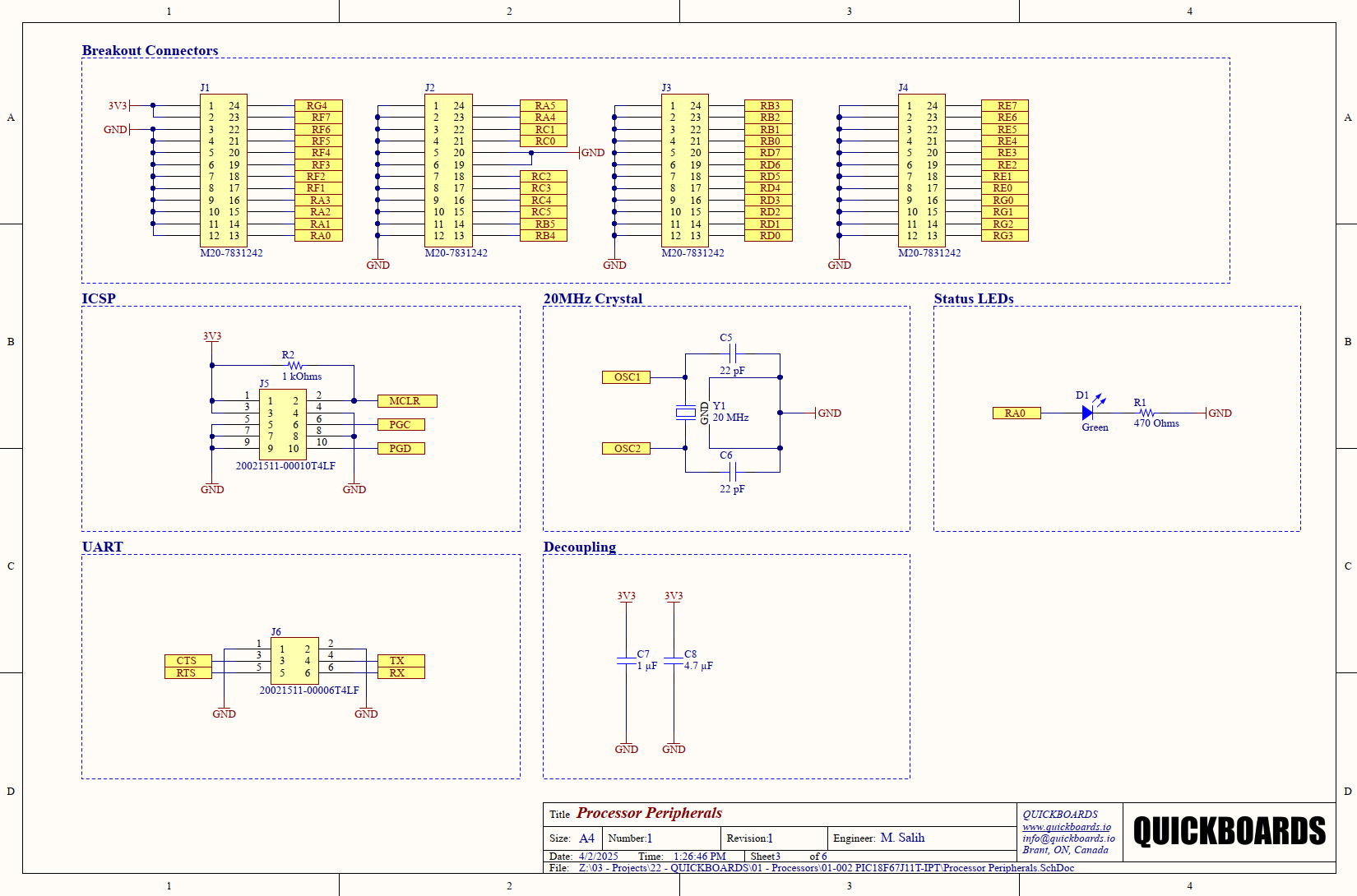

The block comes in a breakout board configuration, simplifying hardware prototyping and system integration. It includes a dedicated UART interface for reliable serial communication and an ICSP (In-Circuit Serial Programming) port for fast programming and debugging.

The PIC18F family is recognized for its rich peripheral set, long-term production availability, and wide adoption in both industrial and consumer electronics. With multiple communication interfaces and flexible performance, this series continues to be a go-to choice for engineers seeking reliable, cost-effective solutions.

Key Features:

• 8-bit PIC18F microcontroller operating at 48 MHz
• 128 KB Flash memory and 3.8 KB RAM
• Breakout board format for quick prototyping
• Dedicated UART communication interface
• ICSP port for programming and debugging
• Extensive communication peripherals for versatile applications

Typical Applications:

• Industrial automation and control systems
• Consumer electronics and embedded appliances
• Robotics and motor control
• IoT nodes and smart sensors
• Data logging and portable devices

By integrating this Quickboards schematic block, engineers can accelerate development timelines, minimize design risk, and build on a production-ready reference design that integrates seamlessly with MPLAB X IDE and XC8 compiler toolchains.
