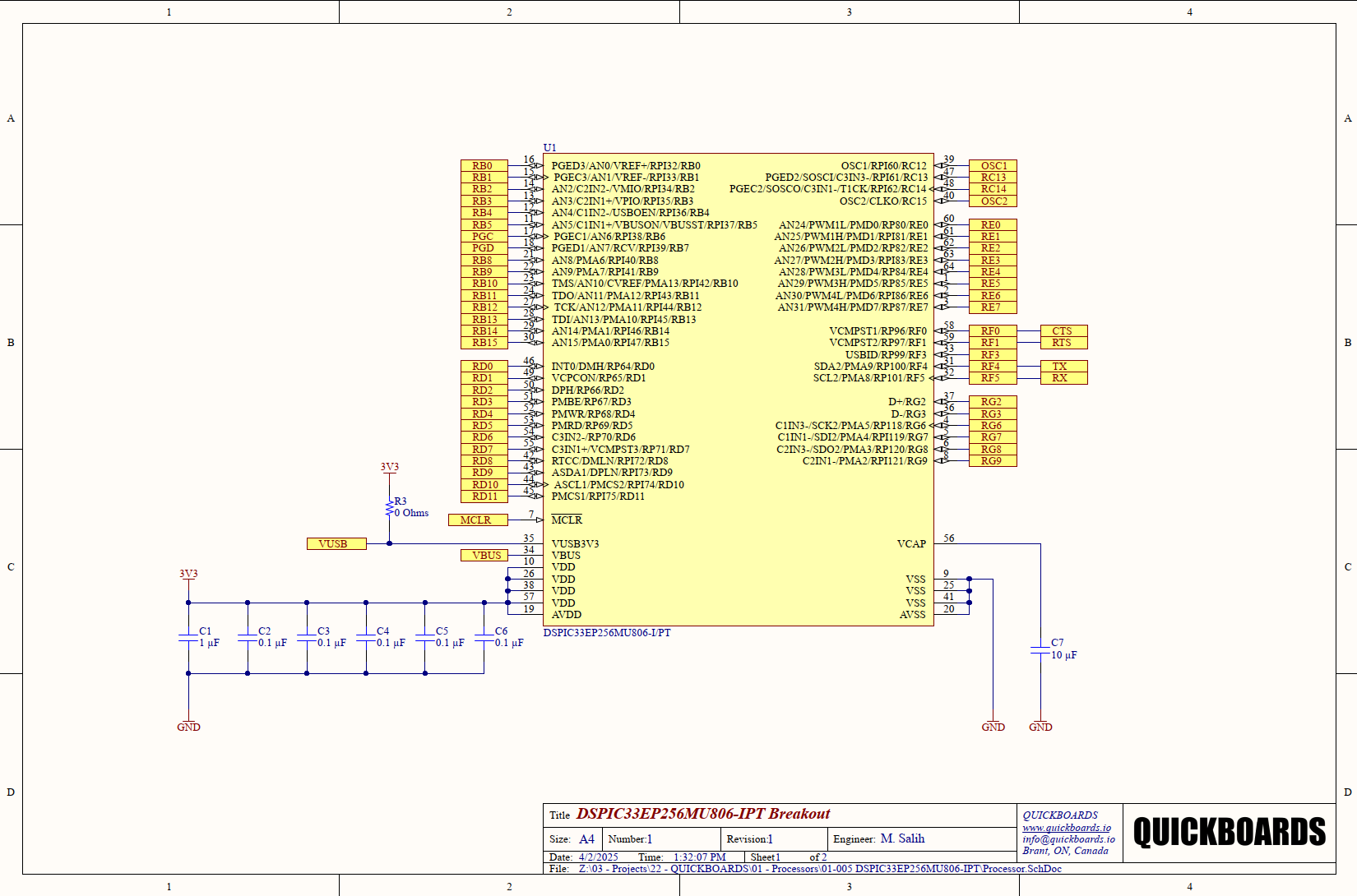

SB010052024 – DSPIC33 SCHEMATIC BLOCK

This schematic block features a 16-bit Digital Signal Controller (DSC) from Microchip Technology’s dsPIC33EP series, engineered for applications that demand real-time control, signal processing, and advanced peripheral integration. Running at up to 60 MIPS, it combines the efficiency of a microcontroller with the processing power of a digital signal processor, enabling high-performance embedded designs.

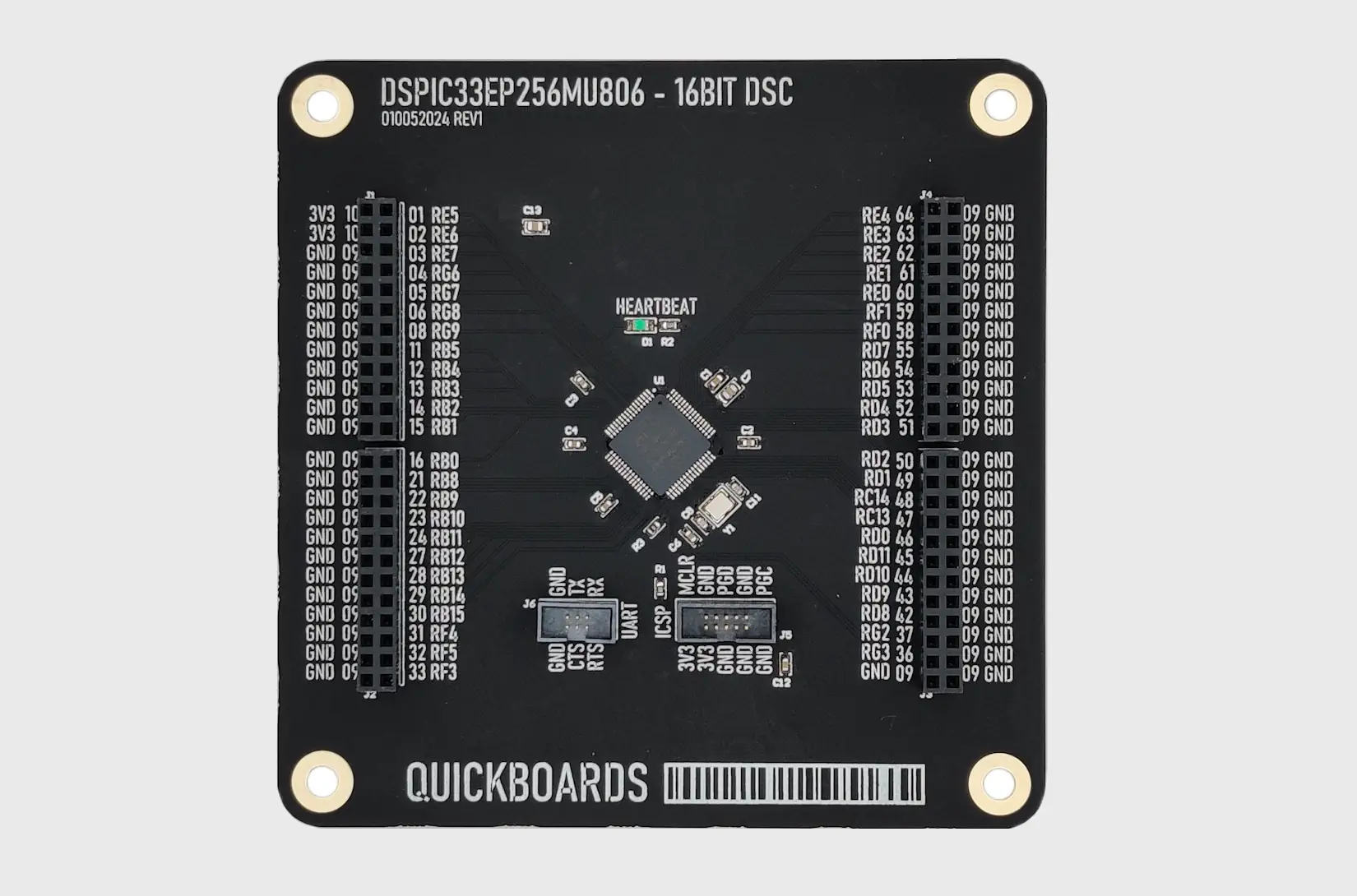

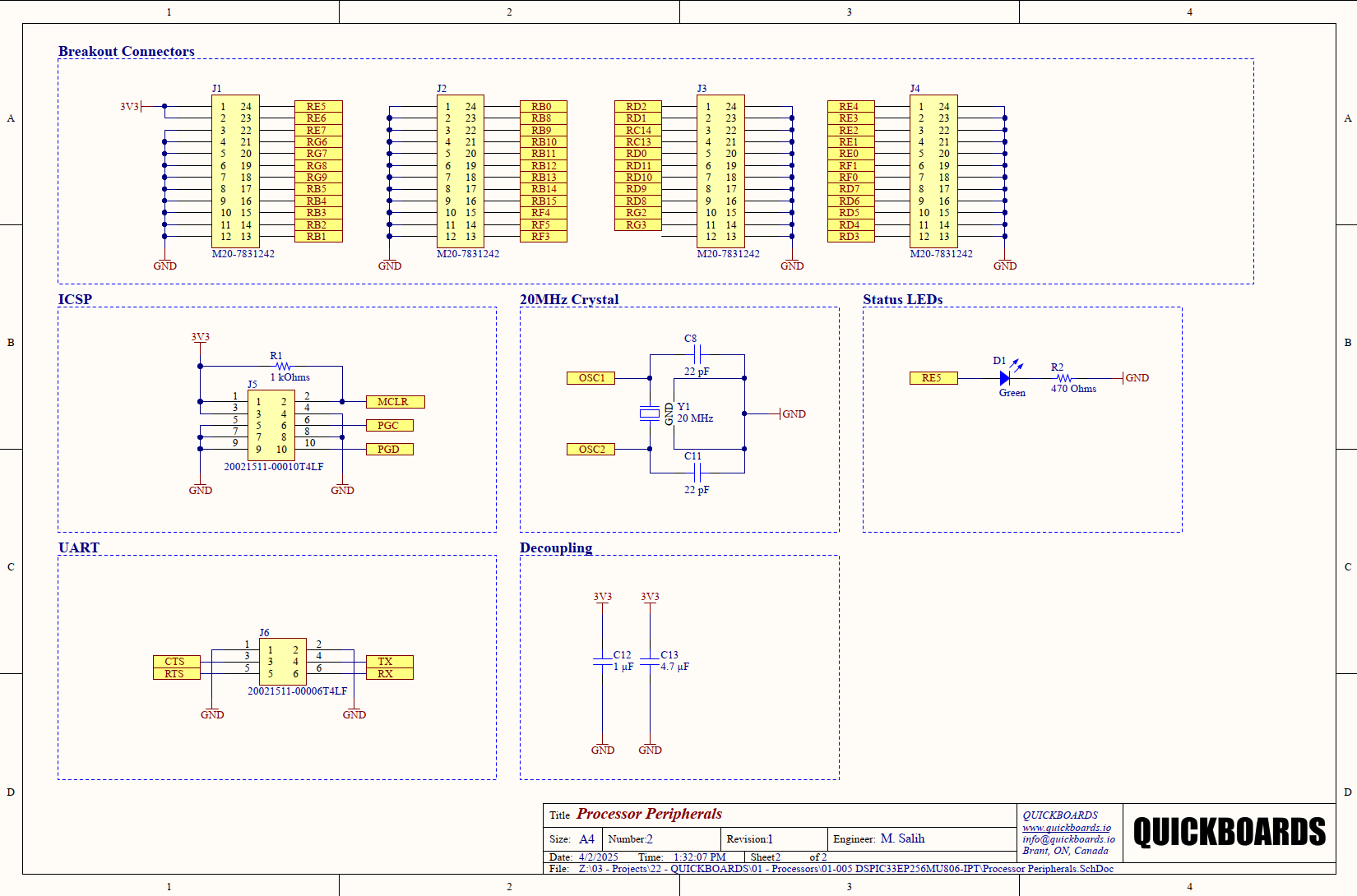

The device includes 256 KB of Flash memory and 53 KB of RAM, giving engineers the resources to run complex algorithms such as motor control, digital filtering, and real-time monitoring. To accelerate prototyping and system integration, this Quickboards breakout block provides a dedicated UART port for reliable serial communication and an ICSP (In-Circuit Serial Programming) port for easy debugging and firmware updates.

With its proven track record in industrial, automotive, and consumer electronics, the dsPIC33EP series remains a trusted choice for long-term production designs requiring precision, speed, and robust connectivity.

Key Features:

• 16-bit dsPIC33EP Digital Signal Controller (DSC)
• Executes up to 60 MIPS for real-time performance
• 256 KB Flash and 53 KB RAM for advanced applications
• Breakout board format for quick prototyping
• UART interface for communication with external systems
• ICSP port for programming and debugging

Typical Applications:

• Motor control and robotics
• Digital power conversion
• Audio and speech processing
• Real-time signal filtering
• Automotive embedded systems
• Industrial automation and control

By using this Quickboards schematic block, engineers can shorten development time, reduce hardware risks, and leverage a proven reference design that integrates seamlessly with Microchip’s MPLAB X IDE and DSP libraries.
