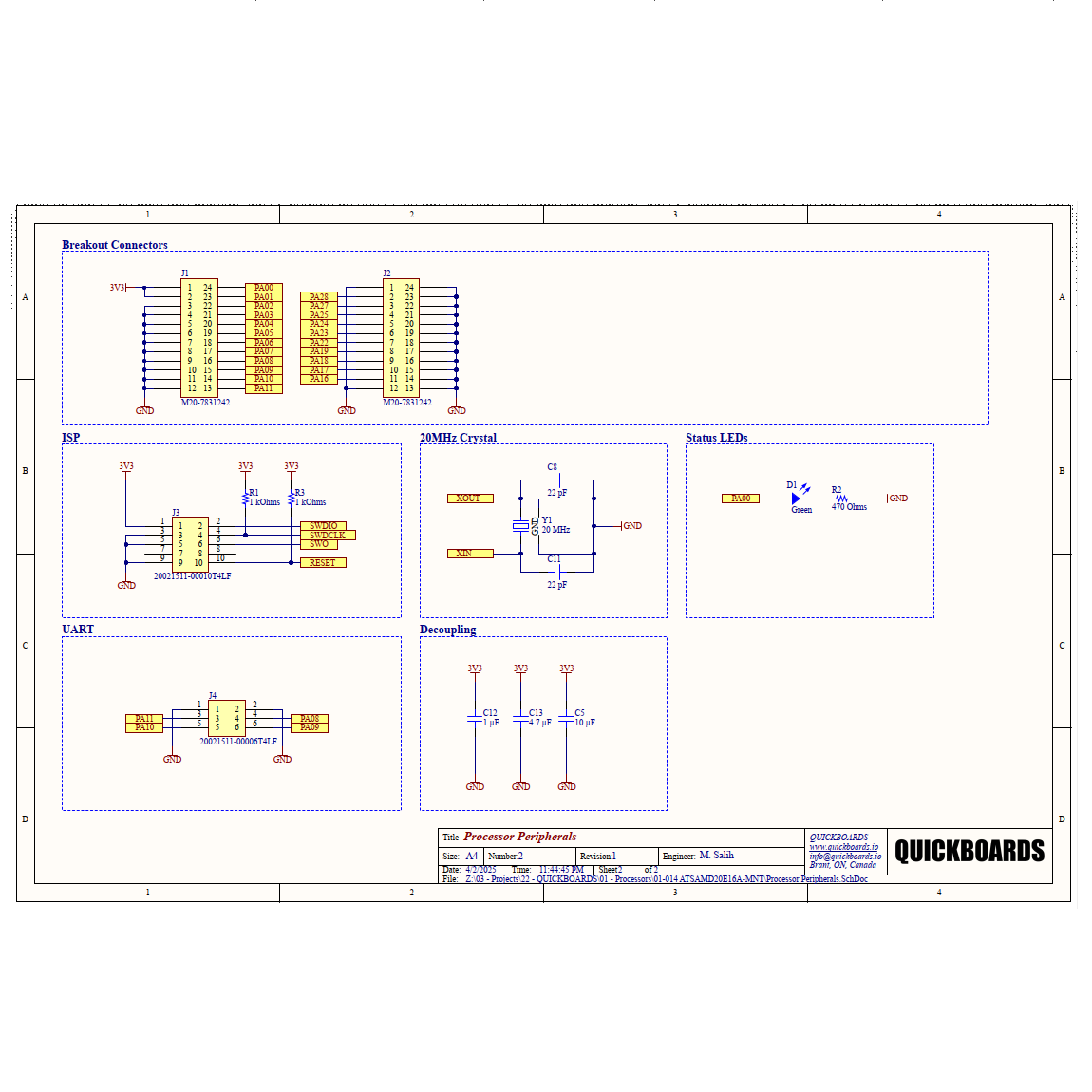

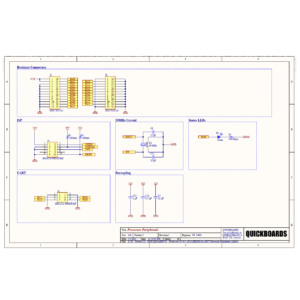

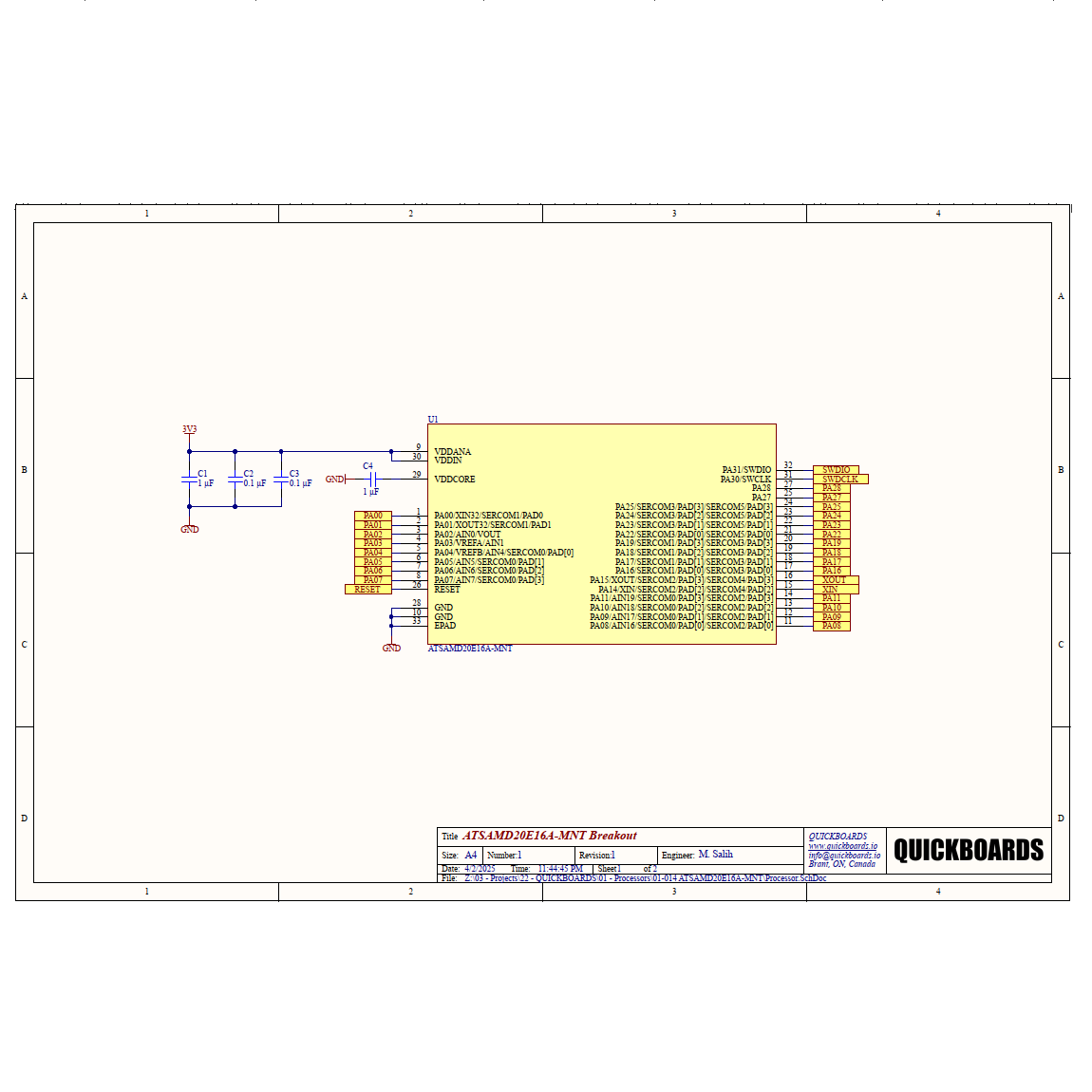

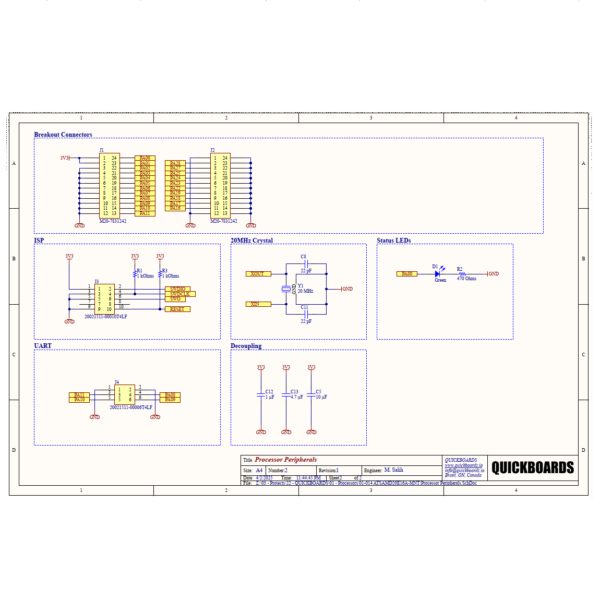

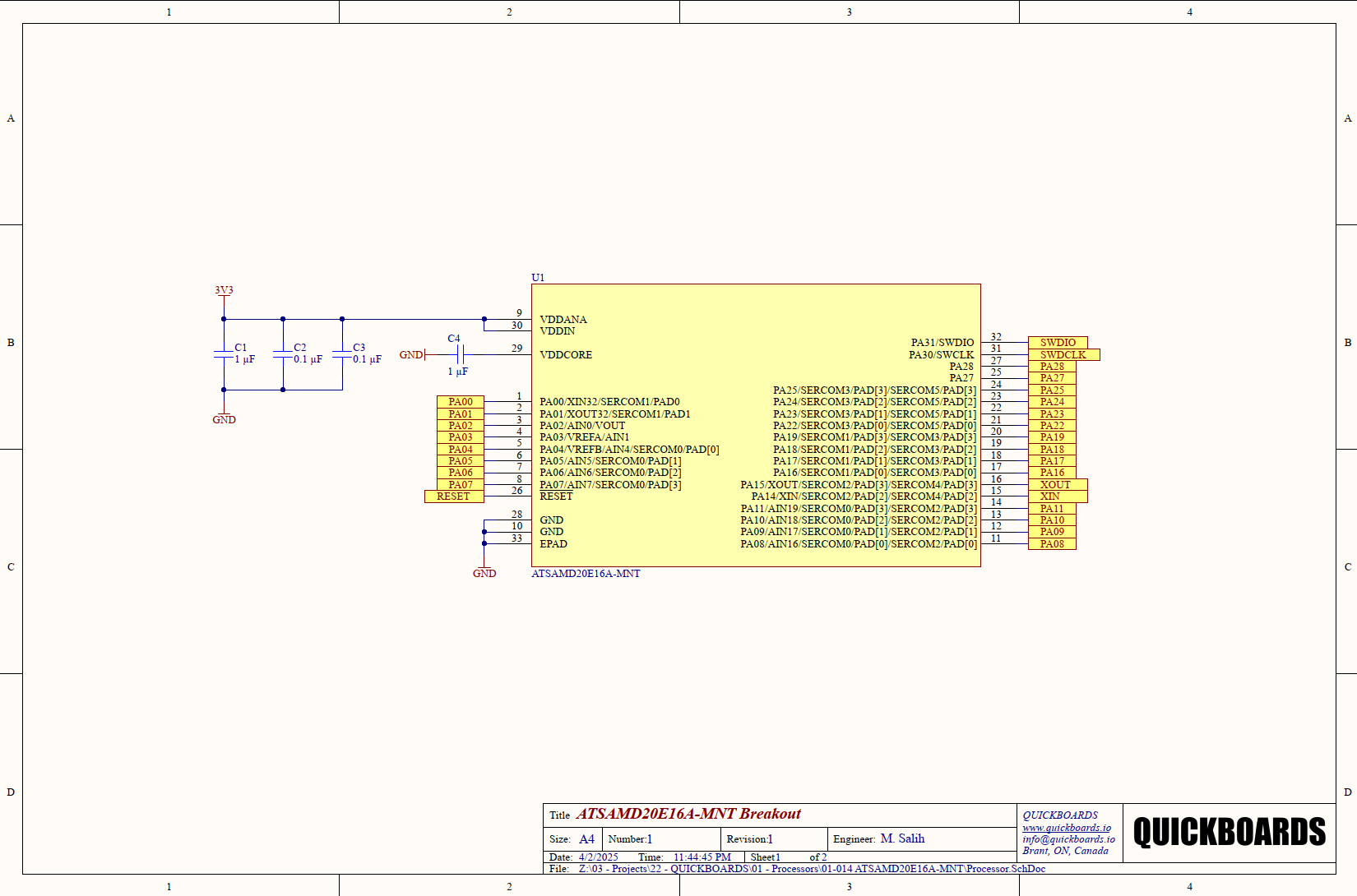

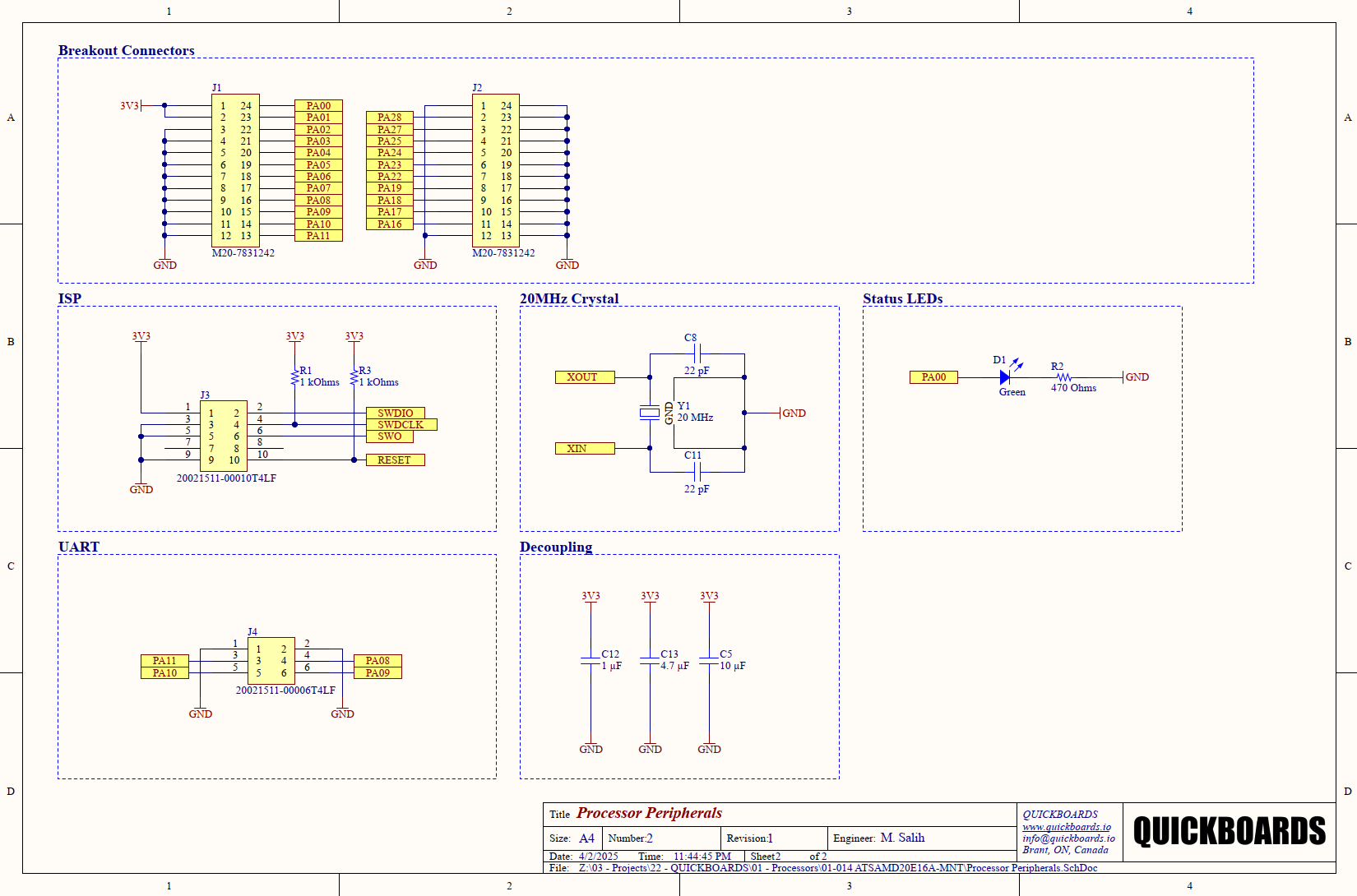

SB010142024 – ATSAMD20 SCHEMATIC BLOCK

This schematic block features a 32-bit microcontroller from Microchip Technology’s SAM D20E series, built on the ARM® Cortex®-M0+ core. Operating at 48 MHz, it delivers an ideal balance of low power consumption and high performance, making it well suited for energy-efficient embedded systems.

The device integrates 64 KB of Flash memory and 8 KB of RAM, providing the resources needed for real-time control, communication protocols, and data handling. Offered in a breakout board format, this block simplifies prototyping with a dedicated UART interface for serial communication and an SWD (Serial Wire Debug) port for straightforward programming and debugging.

As part of the ARM-based SAM family, the D20E series benefits from a mature ecosystem, long-term availability, and compatibility with modern development frameworks, ensuring faster time-to-market for new designs.

Key Features:

• 32-bit SAM D20E microcontroller with ARM® Cortex®-M0+ core
• Operates at up to 48 MHz
• 64 KB Flash memory and 8 KB RAM

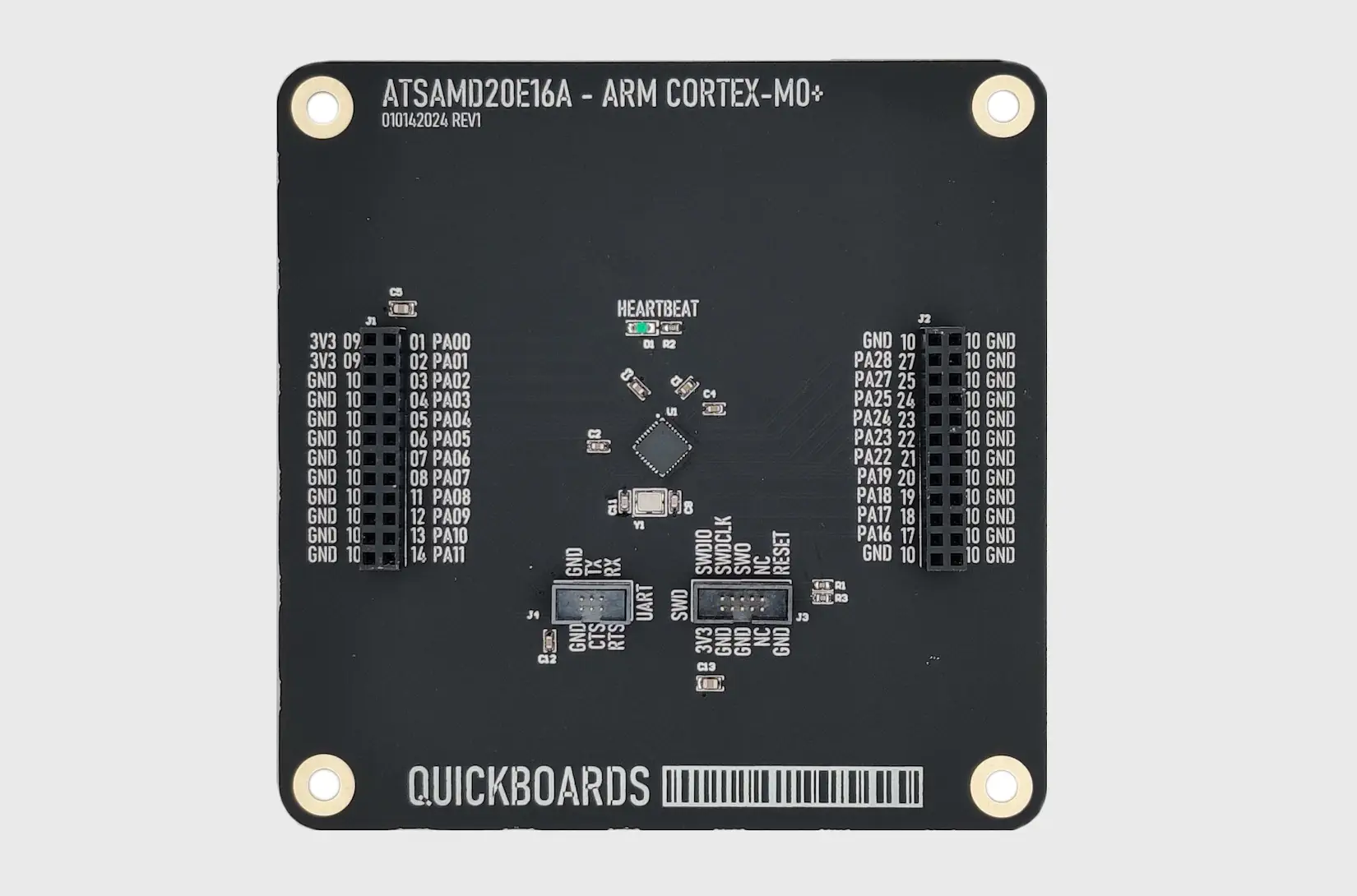

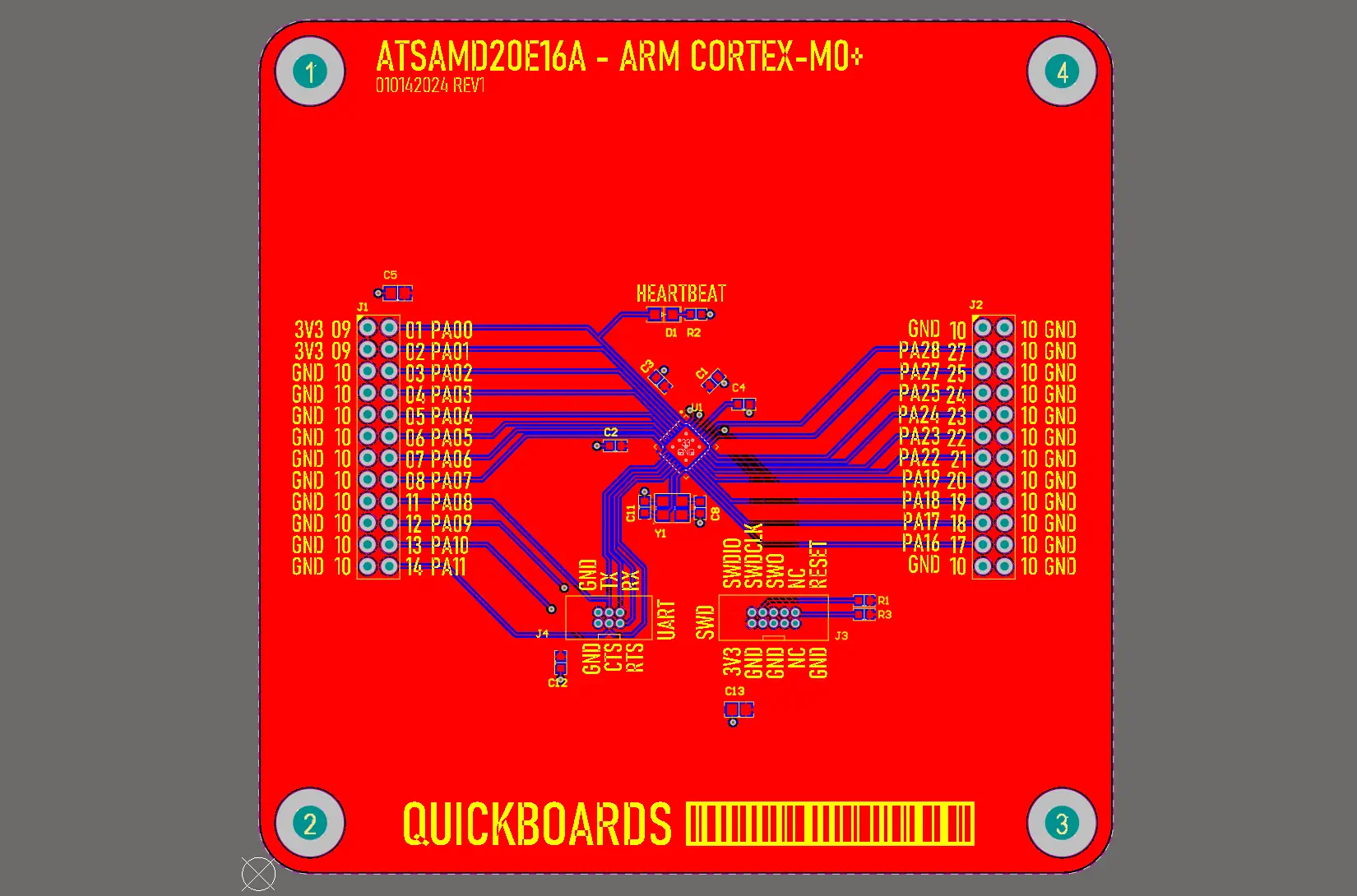

• Breakout board configuration for easy prototyping
• Dedicated UART port for serial communication
• SWD programming and debugging interface
• Low power operation for energy-efficient systems

Typical Applications:

• IoT devices and low-power wireless nodes
• Smart sensors and data loggers
• Consumer electronics and wearables
• Energy monitoring systems
• Home and building automation

By integrating this Quickboards schematic block, engineers can shorten development cycles, reduce risk, and rely on a proven reference design fully compatible with ARM toolchains, Atmel Studio, and MPLAB X.
