SB010032024 – PIC24F SCHEMATIC BLOCK

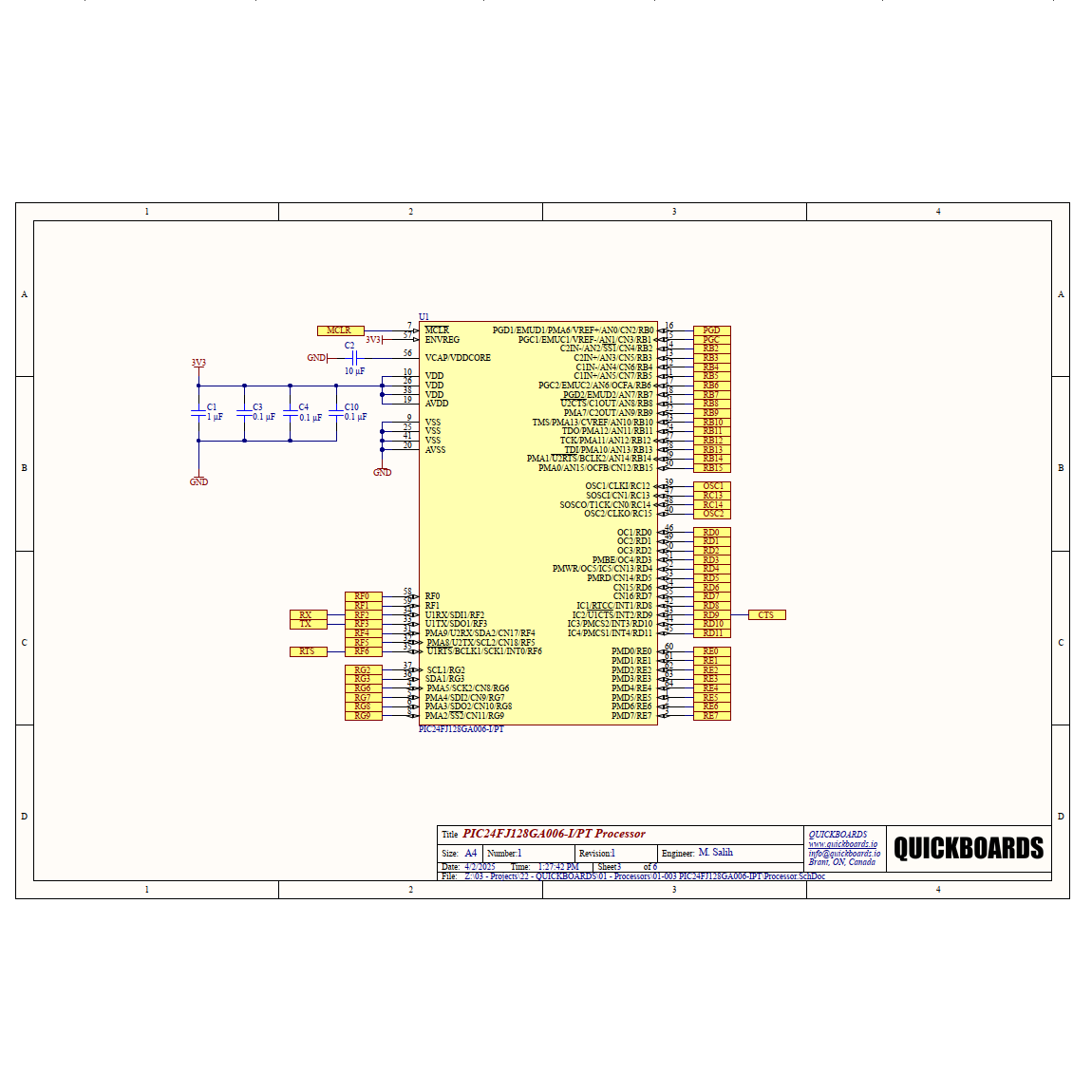

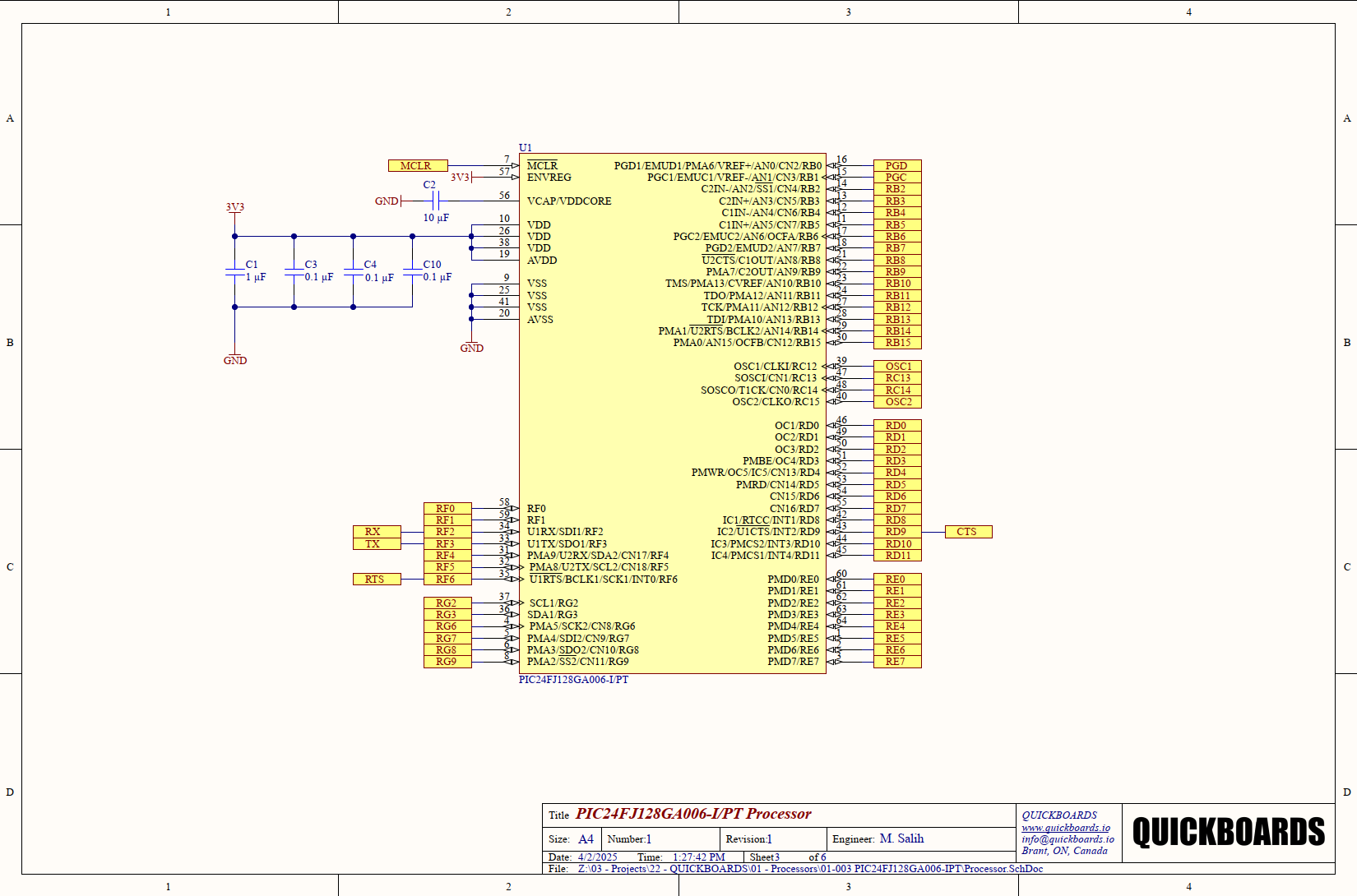

This schematic block features a 16-bit microcontroller from Microchip Technology’s PIC24F series, designed for cost-effective embedded control systems that require a balance of performance, power efficiency, and flexible peripheral options. Operating at 16 MHz, it integrates 128 KB of Flash memory and 8 KB of RAM, making it suitable for handling control tasks, sensor interfaces, and communication protocols.

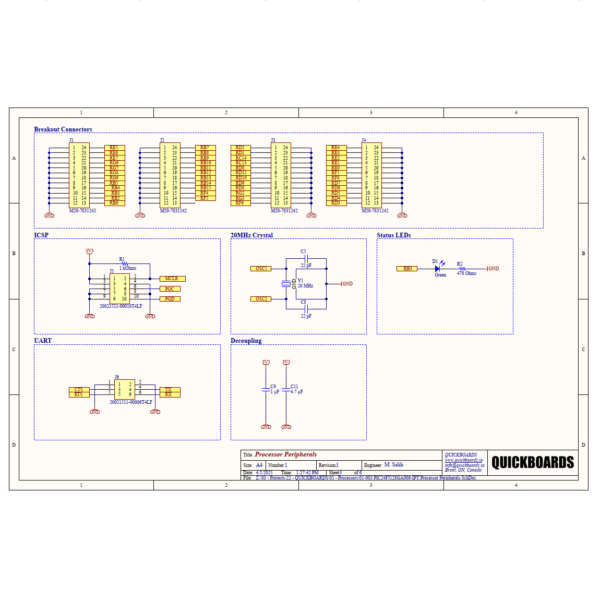

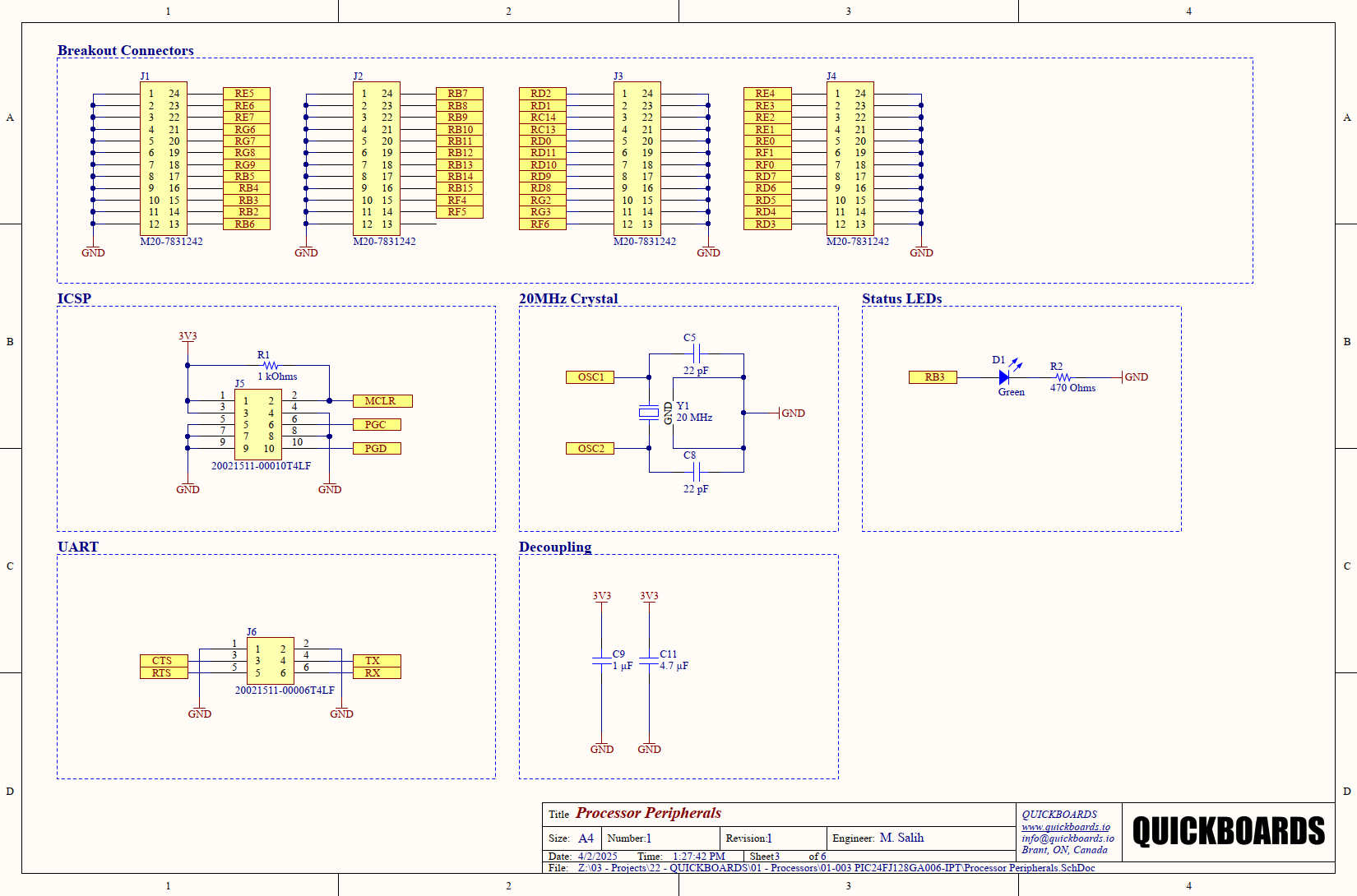

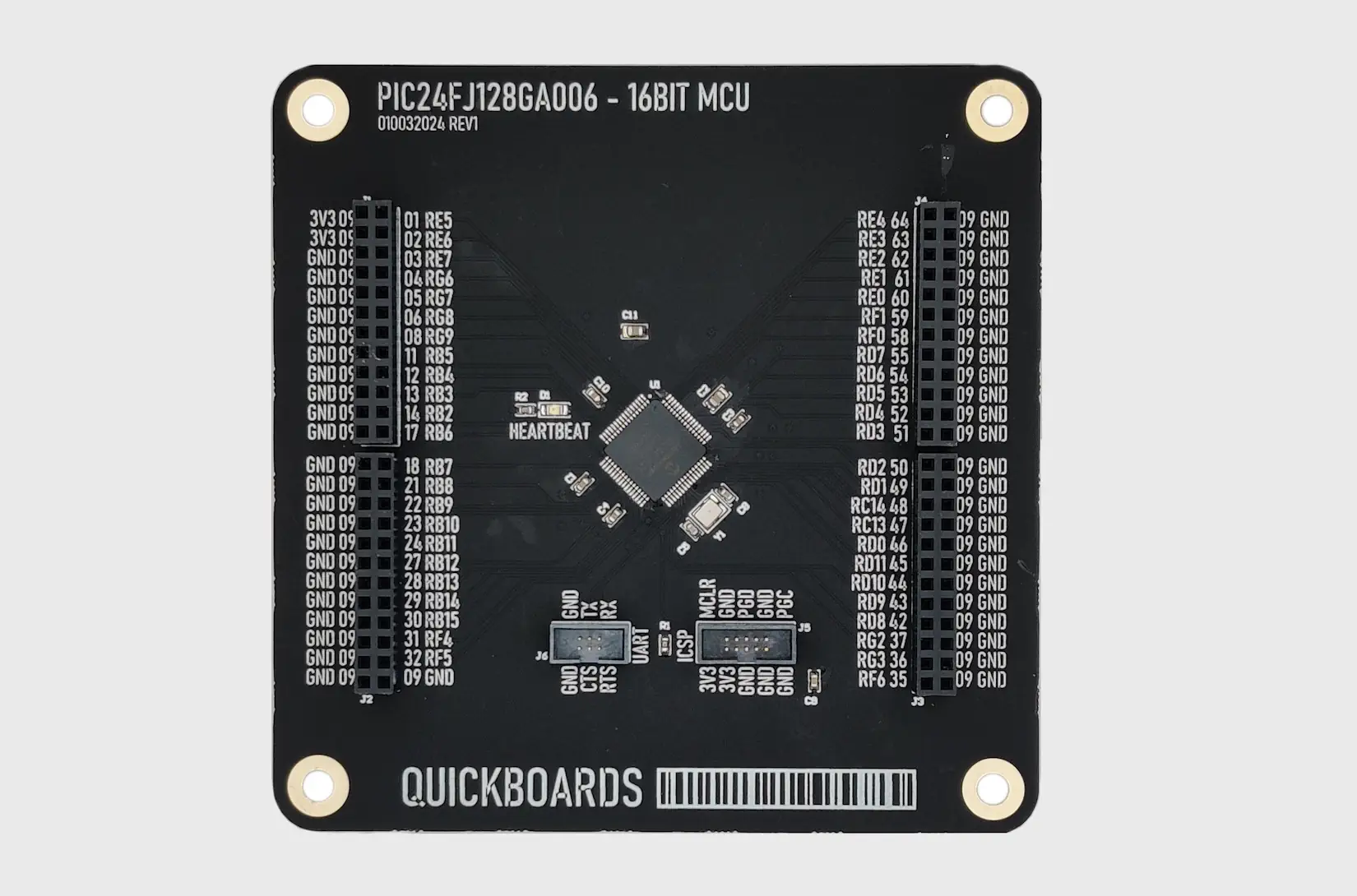

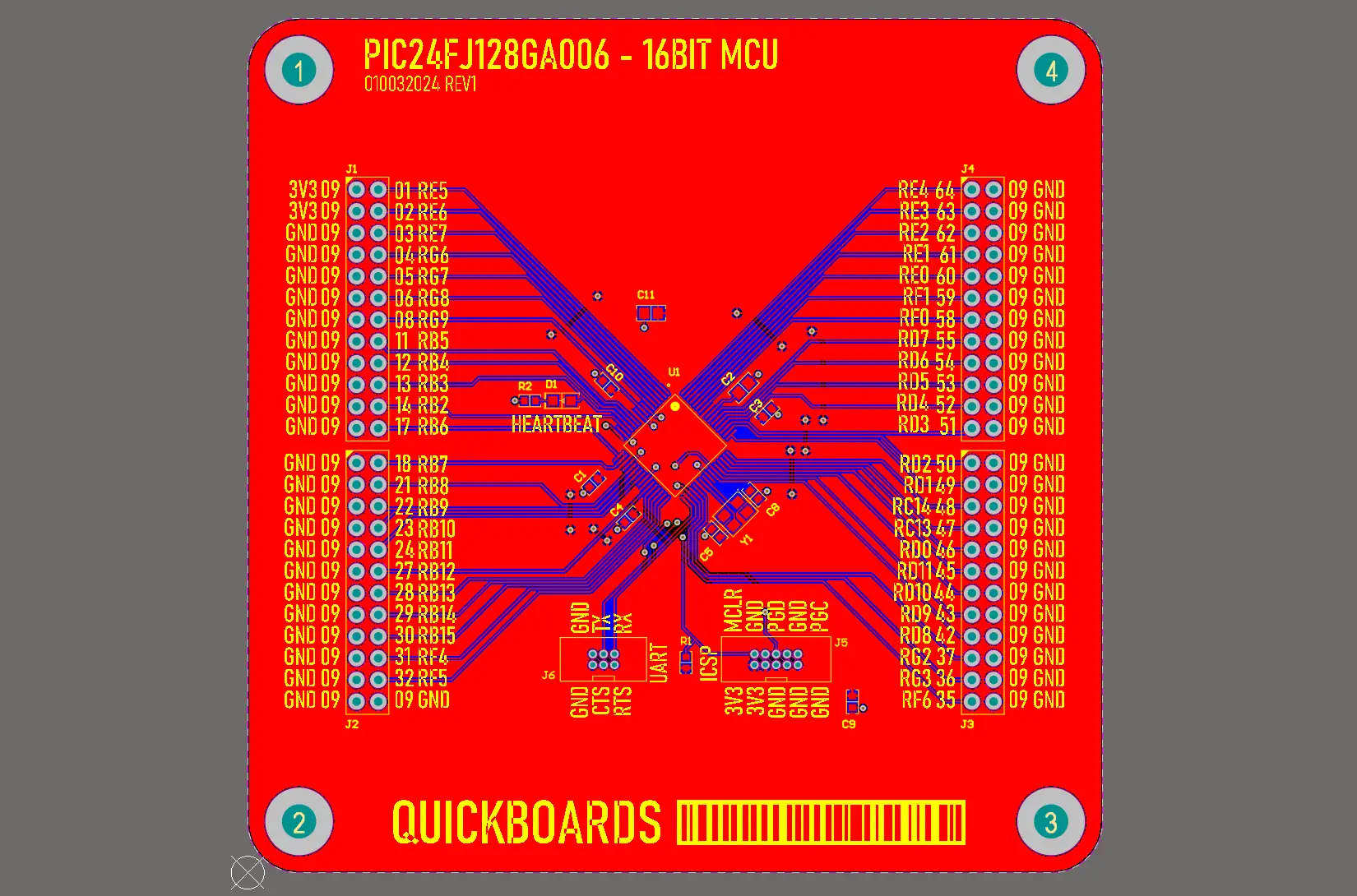

Delivered in a breakout board format, this block simplifies hardware prototyping and integration. It includes a dedicated UART interface for reliable serial communication and an ICSP (In-Circuit Serial Programming) port for convenient programming and debugging.

The PIC24F family is known for its low-power operation, broad peripheral set, and stable long-term production availability, making it a dependable choice for engineers designing embedded products across multiple industries.

Key Features:

• 16-bit PIC24F microcontroller operating at 16 MHz
• 128 KB Flash memory and 8 KB RAM
• Breakout board format for rapid prototyping
• Dedicated UART communication interface
• ICSP programming and debugging support
• Flexible peripheral set for diverse applications

Typical Applications:

• Portable and battery-powered devices
• Consumer electronics and controllers
• Industrial monitoring and automation
• IoT sensors and communication nodes
• Educational and prototyping projects

By leveraging this Quickboards schematic block, engineers can speed up design cycles, reduce hardware risk, and rely on a proven reference design that is fully compatible with MPLAB X IDE and the XC16 compiler toolchain.
