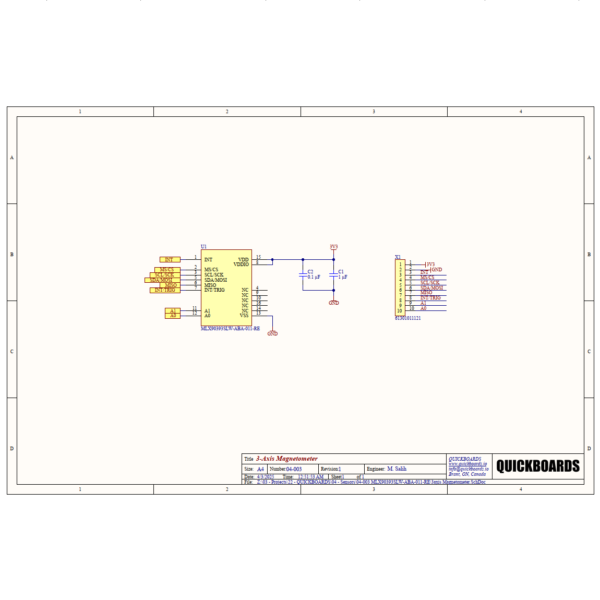

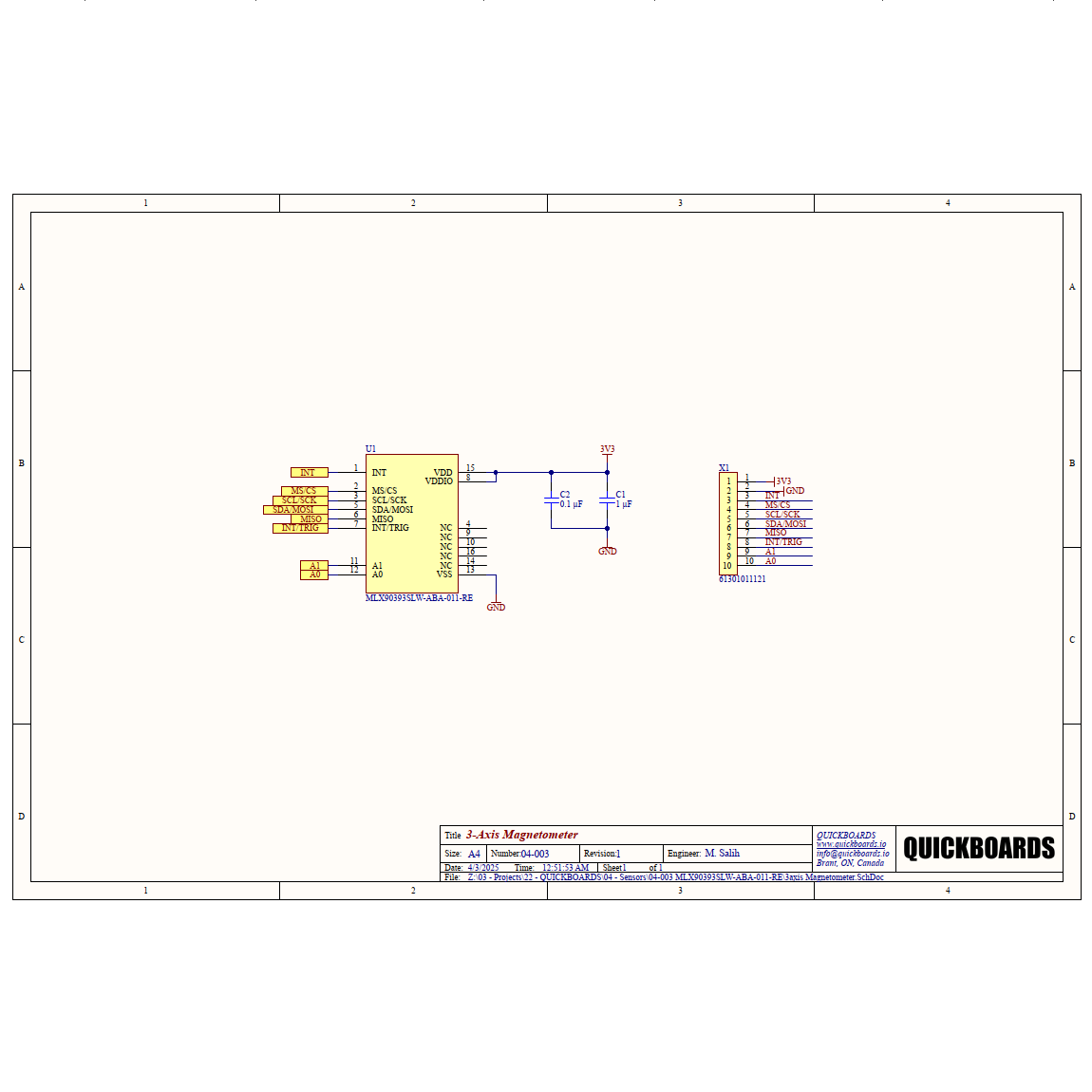

SB040032024 – 3AXIS MAG SCHEMATIC BLOCK

This schematic block features the MLX90393SLW-ABA-011-RE, a Triaxis® Hall-effect sensor from Melexis Technologies NV, designed to sense X, Y, and Z magnetic field components with high accuracy. Offering both I²C and SPI digital interfaces, this device provides maximum flexibility for integration into a wide range of embedded systems.

The MLX90393 is optimized for position sensing, magnetic field measurement, and industrial applications, making it a versatile choice for engineers developing motion, angle, or displacement detection solutions. Its 16-pin QFN package allows for compact board layouts, while its proven design ensures robust performance and long-term reliability.

Integrated into a Quickboards schematic block, this sensor can be rapidly deployed in prototypes and final designs, giving engineers a reference-ready solution that simplifies circuit integration and reduces design cycles.

Key Features:

• 3-axis Triaxis® Hall-effect magnetic field sensor
• Capable of sensing X, Y, and Z components
• Digital output via I²C and SPI interfaces
• Compact 16-QFN package for space efficiency
• High accuracy and stability in position sensing applications
• Provided as a Quickboards schematic block for rapid prototyping

Typical Applications:

• Position and displacement sensing
• Joystick and control interfaces
• Automotive and industrial automation
• Robotics and mechatronics systems
• Magnetic field measurement and mapping
• Consumer electronics with motion or orientation control

By using this Quickboards schematic block, engineers can accelerate development of magnetic sensing solutions, reduce risk, and integrate a proven, production-ready reference design based on the MLX90393.
