SB040012024 – 3AXIS ACCEL SCHEMATIC BLOCK

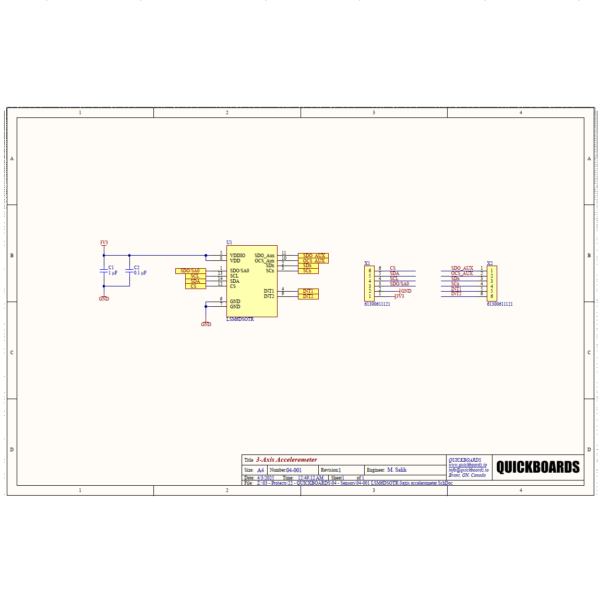

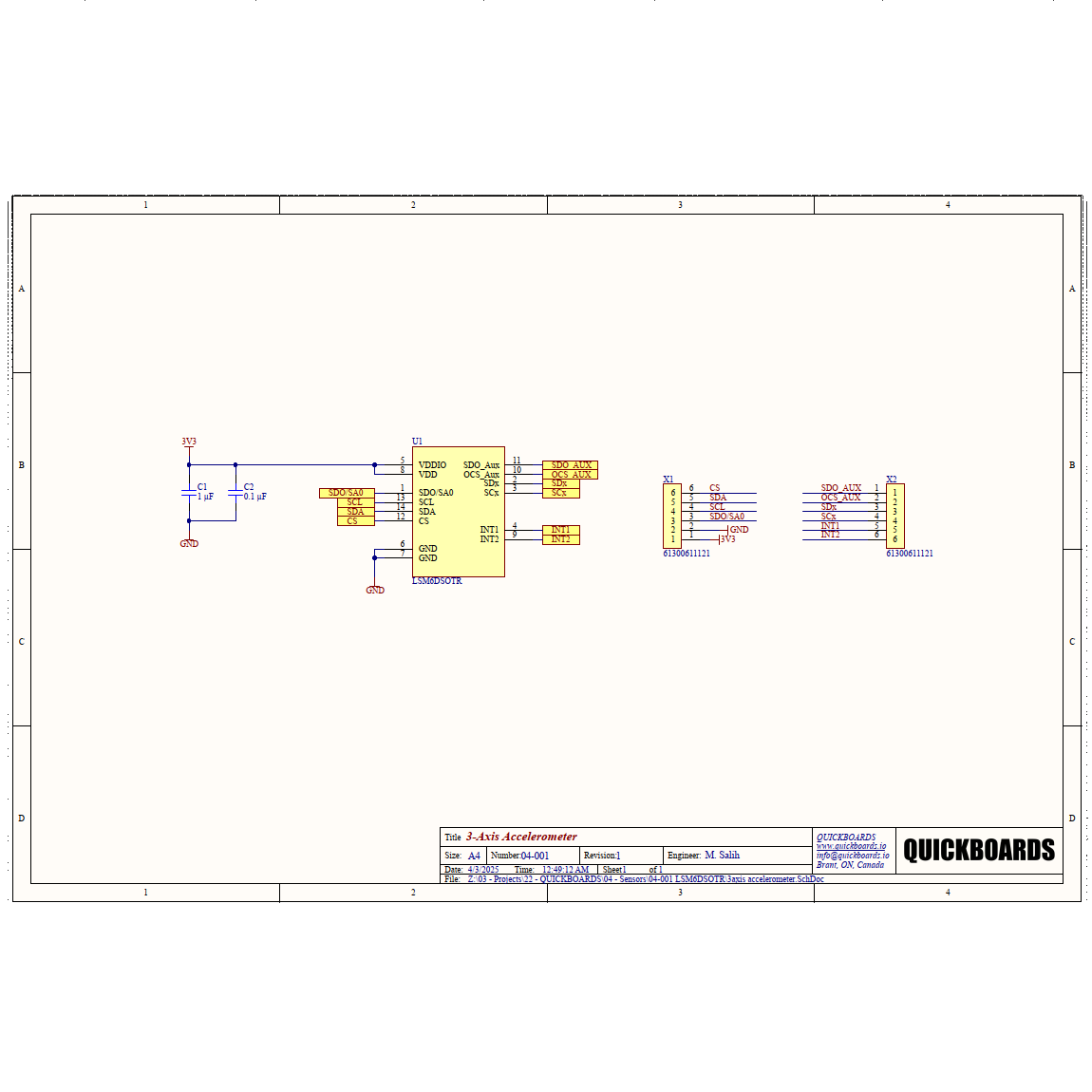

This schematic block features the LSM6DSOTR, a high-performance iNEMO inertial module from STMicroelectronics. It combines a 3D digital accelerometer and a 3D digital gyroscope into a single compact package, delivering accurate six-axis motion sensing for advanced applications.

With its low power consumption and high stability, the LSM6DSO is optimized for use in wearables, smartphones, IoT devices, and industrial applications where precise motion tracking and orientation detection are required. The sensor provides digital output over standard communication interfaces, simplifying integration with microcontrollers and embedded systems.

Packaged as a Quickboards schematic block, this design allows engineers to rapidly prototype motion-enabled systems with a proven reference schematic, reducing development time and risk.

Key Features:

• 3D digital accelerometer + 3D digital gyroscope (6-axis IMU)
• High-performance motion sensing with low power consumption
• Compact package for space-constrained designs
• Digital interface for easy integration with MCUs
• Proven Quickboards schematic block for rapid prototyping

Typical Applications:

• Smartphones and wearable devices
• IoT and connected sensors
• Augmented and virtual reality (AR/VR) systems
• Robotics and motion control
• Industrial monitoring and automation

By using this Quickboards schematic block, engineers can accelerate development of motion-enabled designs, leveraging the LSM6DSOTR’s proven stability and accuracy across consumer, industrial, and IoT applications.
