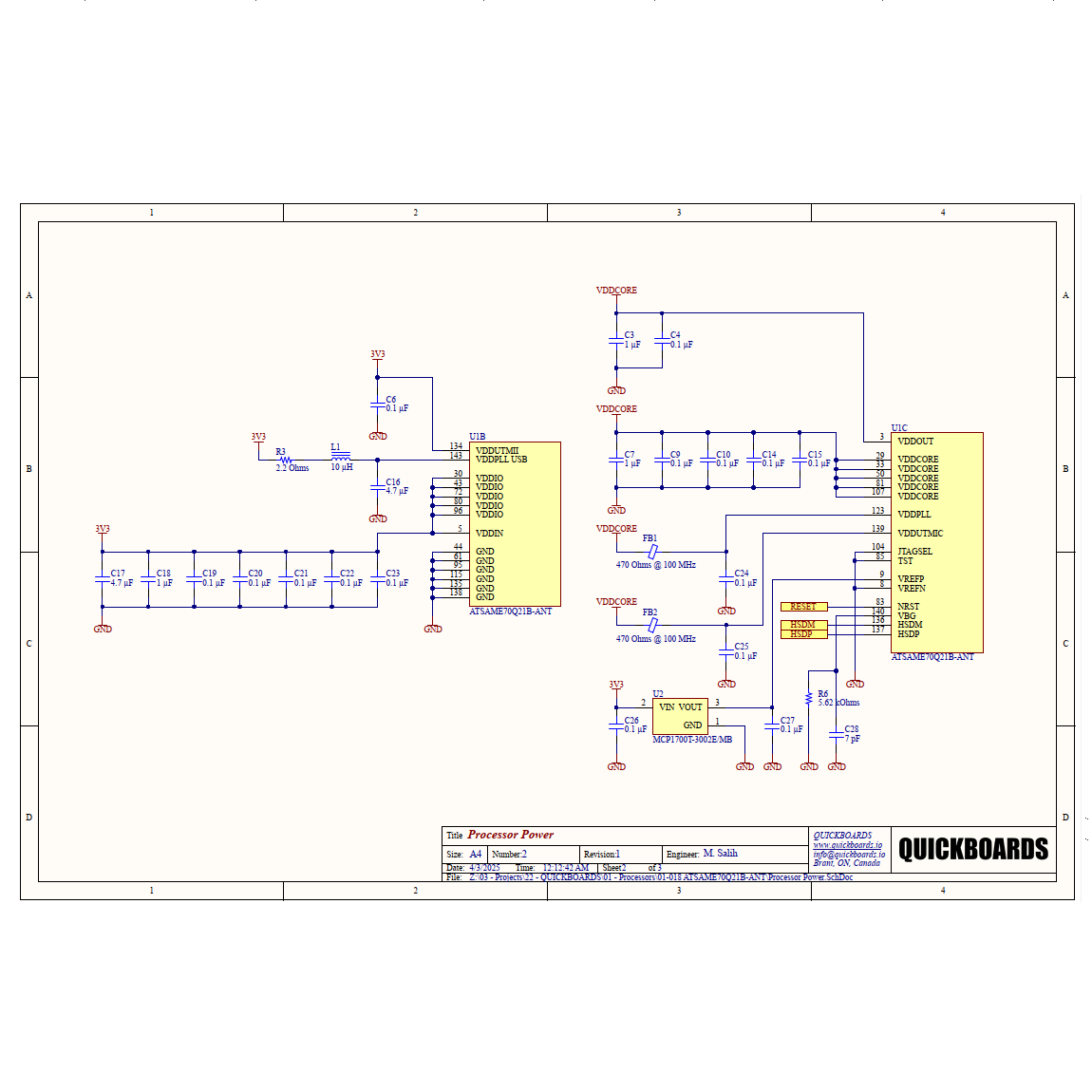

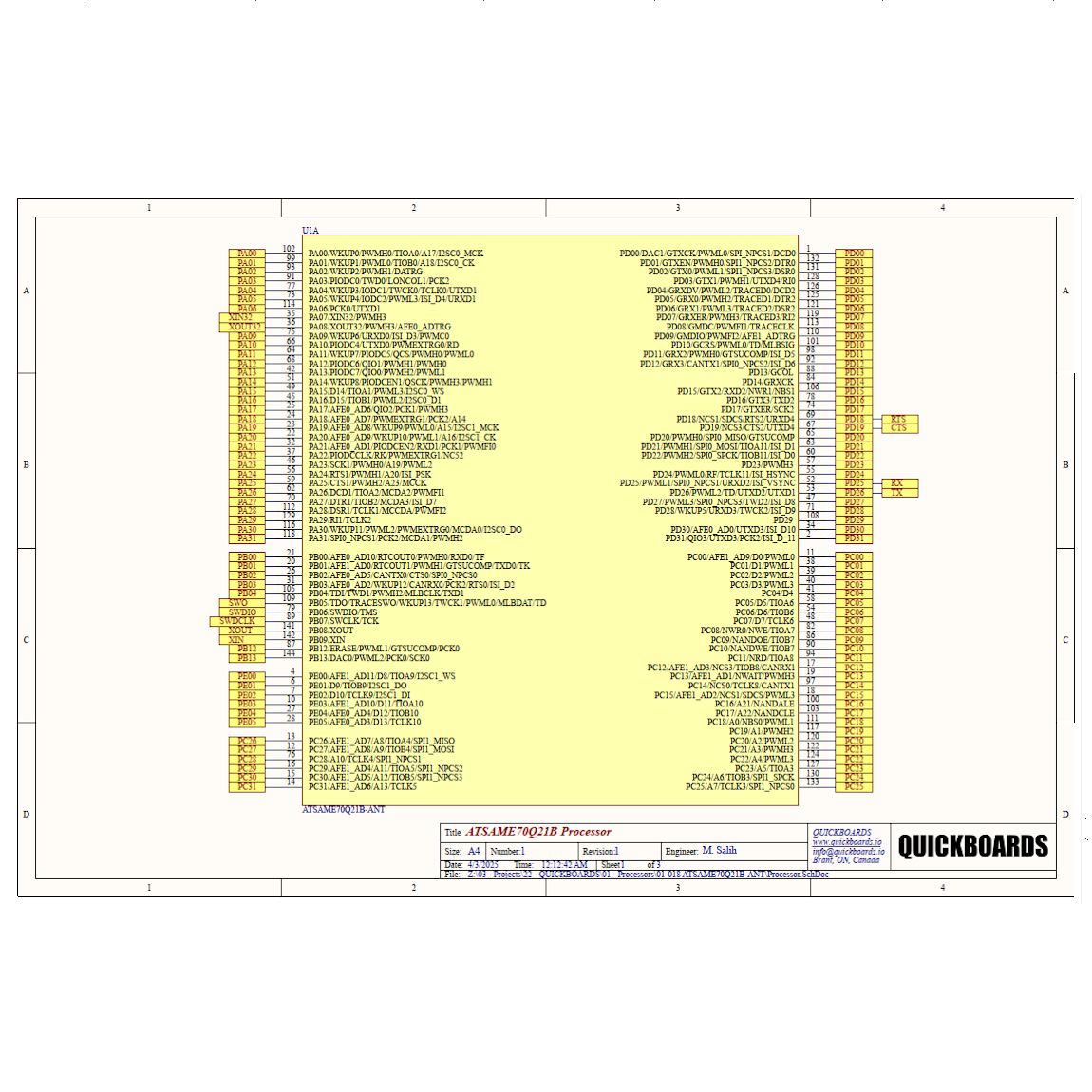

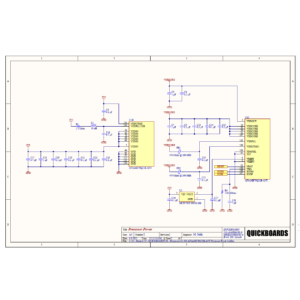

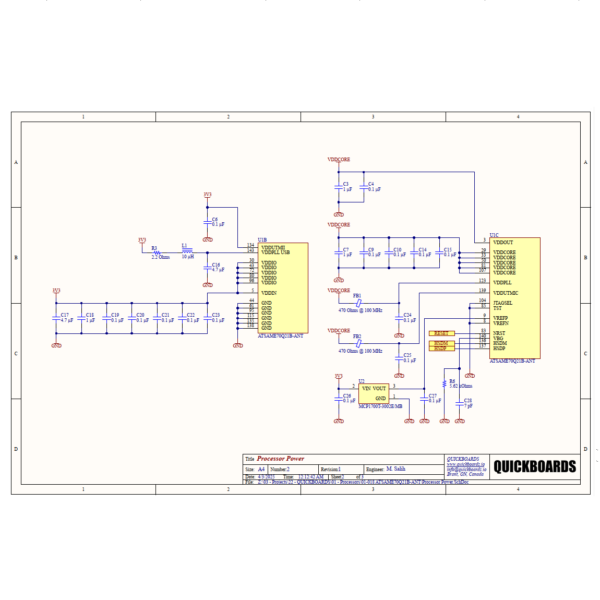

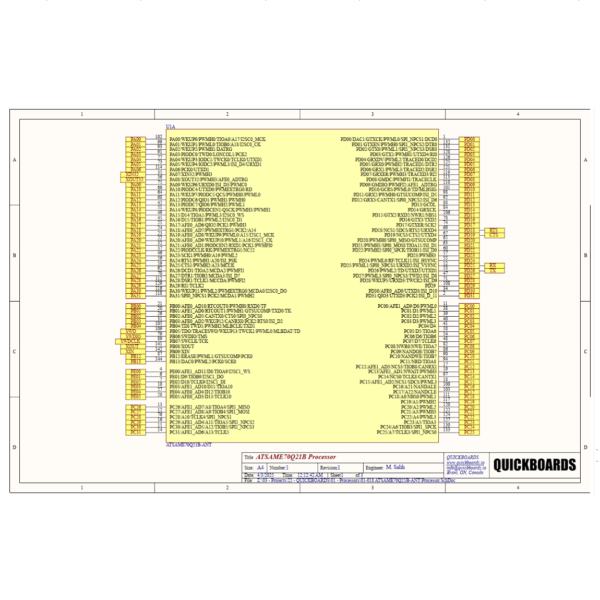

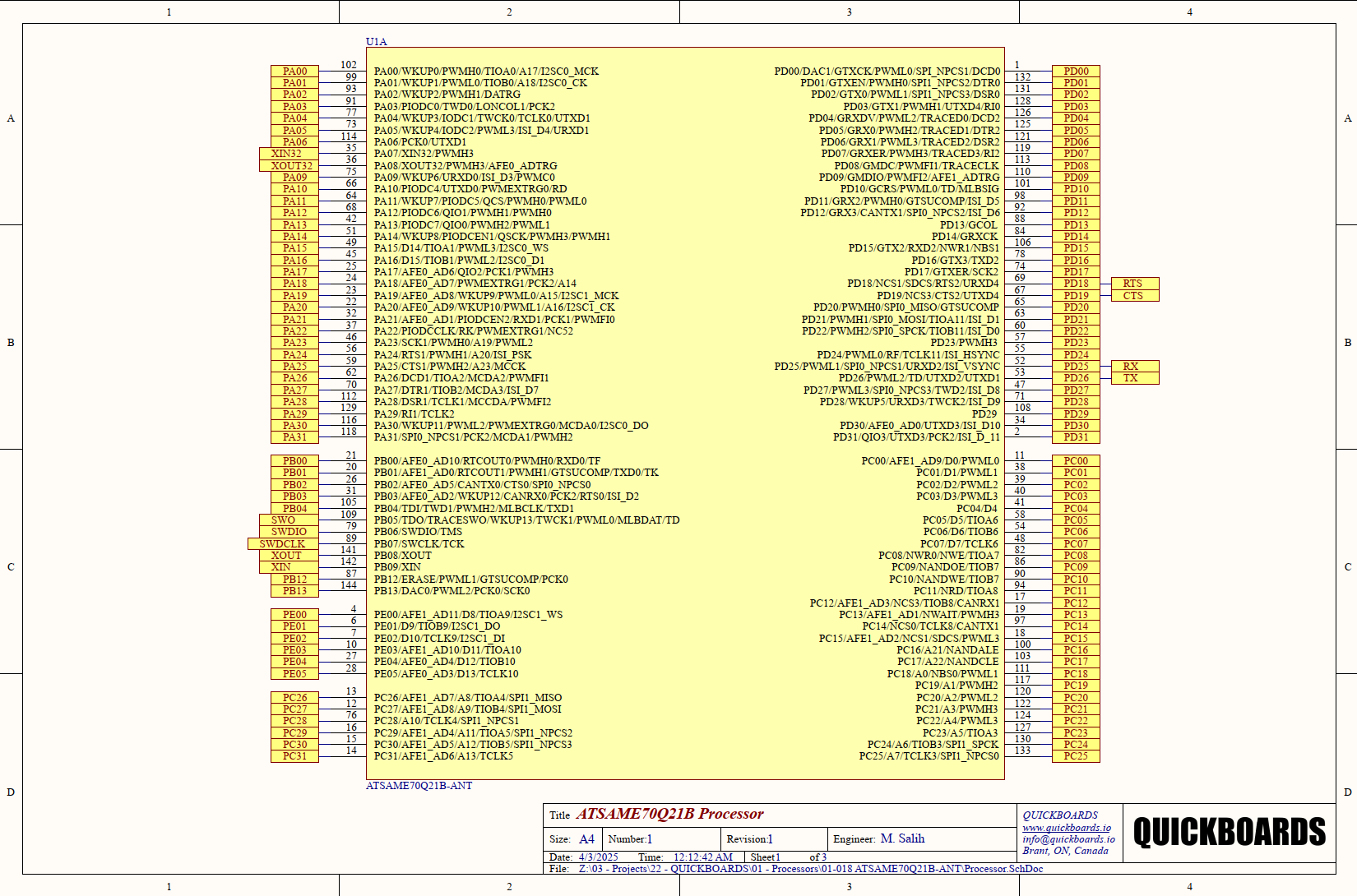

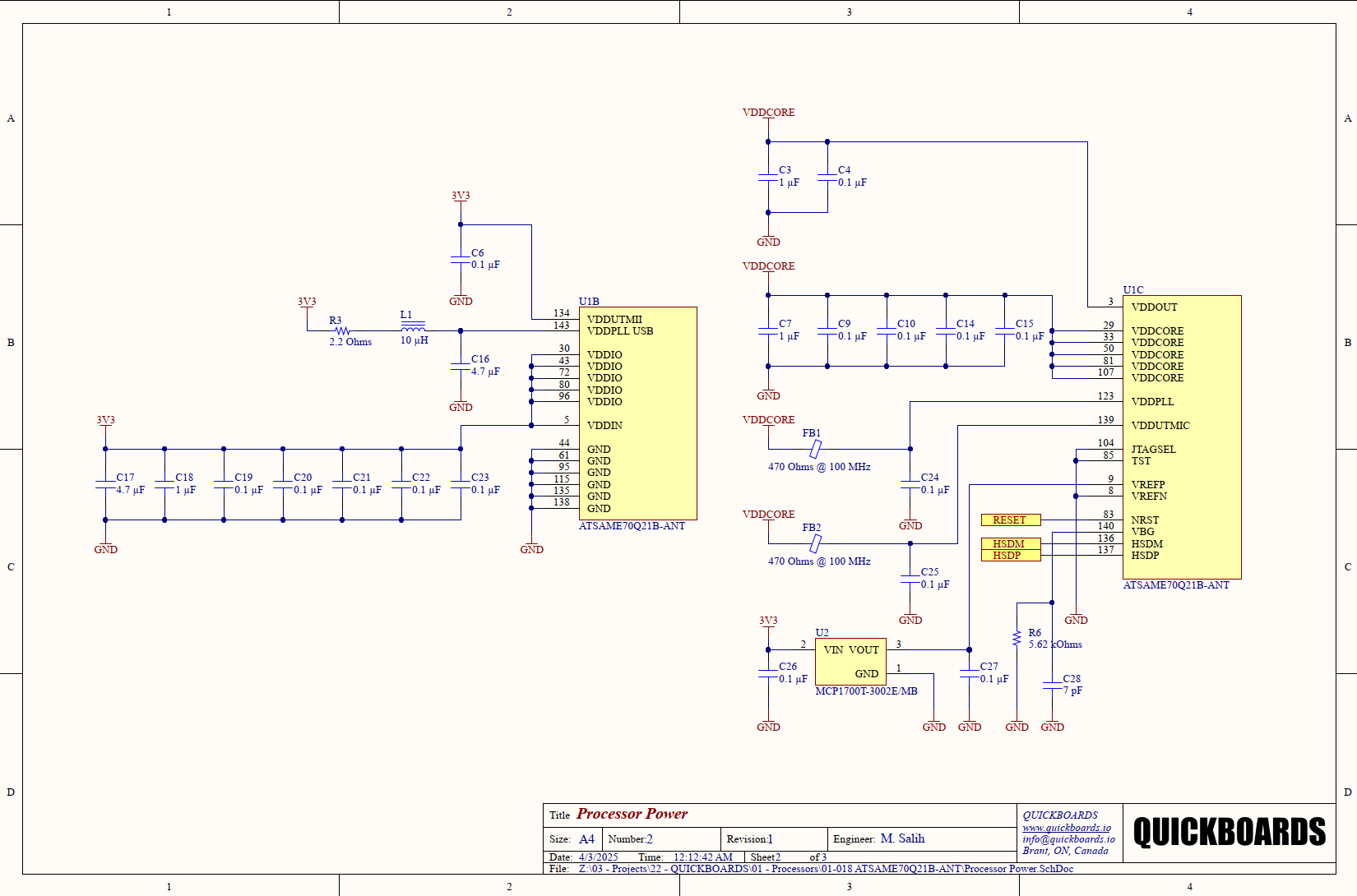

SB010182024 – ATSAME70Q21B-ANT SCHEMATIC BLOCK

This schematic block features a 32-bit microcontroller from Microchip Technology’s SAM E70 series, powered by an ARM® Cortex®-M7 core. Operating at up to 300 MHz, it delivers exceptionally high performance for advanced embedded applications, including real-time data processing, high-speed control, and complex communication stacks.

The device integrates 2 MB of Flash memory and 384 KB of RAM, giving engineers the headroom required for demanding applications such as edge computing, industrial automation, and secure IoT systems. Offered in a breakout board format, this block simplifies development with a dedicated UART interface for serial communications and an SWD (Serial Wire Debug) port for programming and debugging.

With its combination of speed, memory, and connectivity, the SAM E70 family enables engineers to tackle mission-critical embedded designs while ensuring long-term availability and support from Microchip’s ARM ecosystem.

Key Features:

• 32-bit SAM E70 microcontroller with ARM® Cortex-M7 core
• Operates at up to 300 MHz for maximum performance
• 2 MB Flash memory and 384 KB RAM

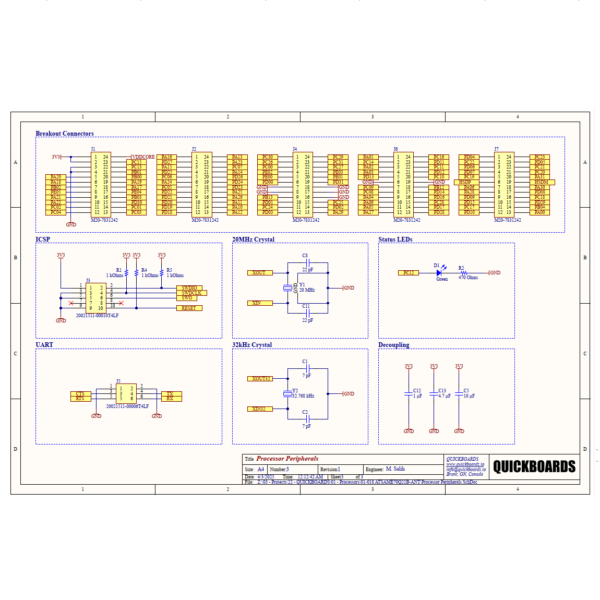

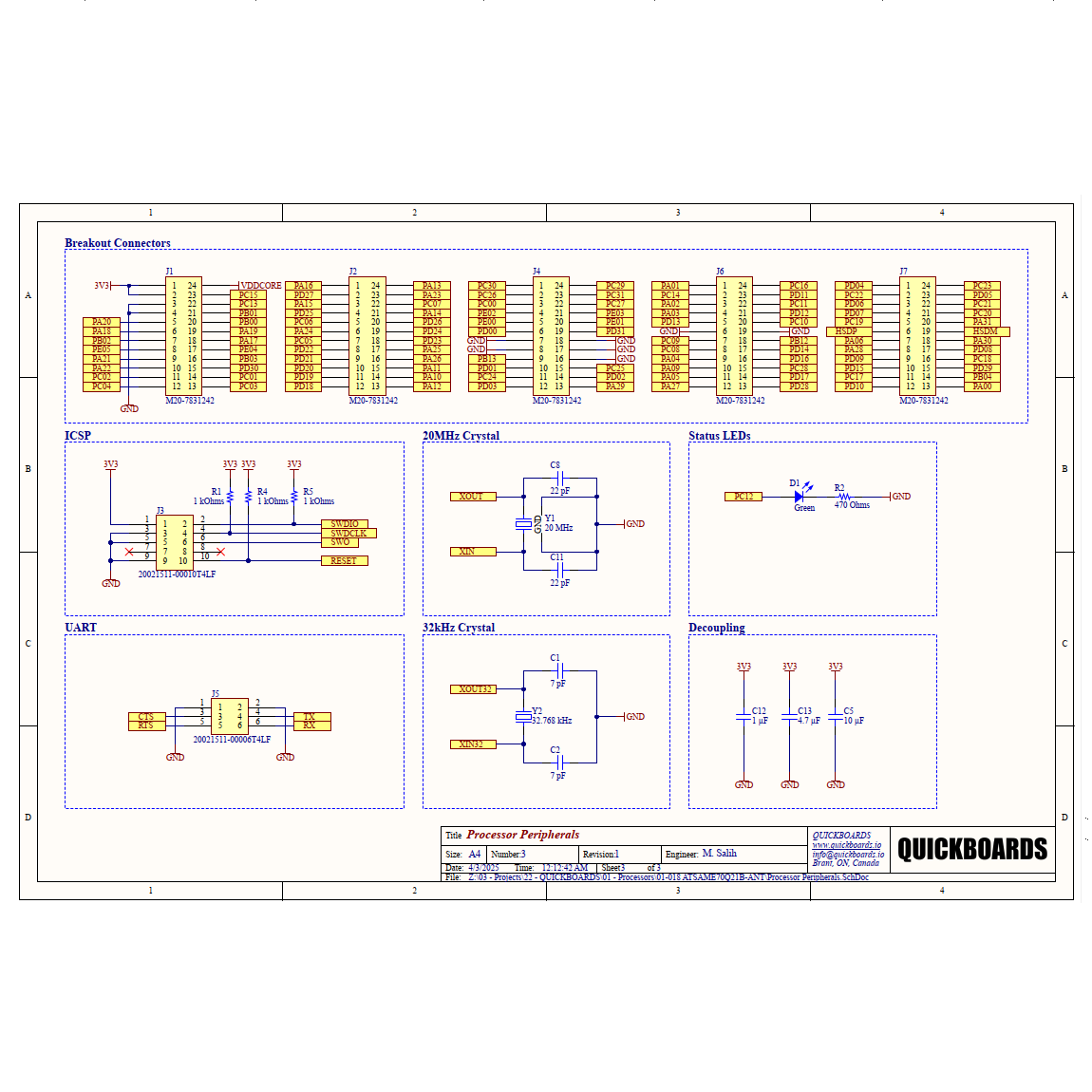

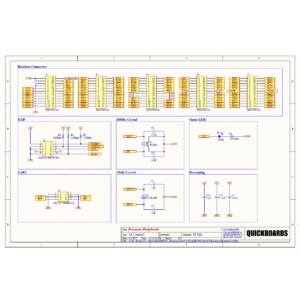

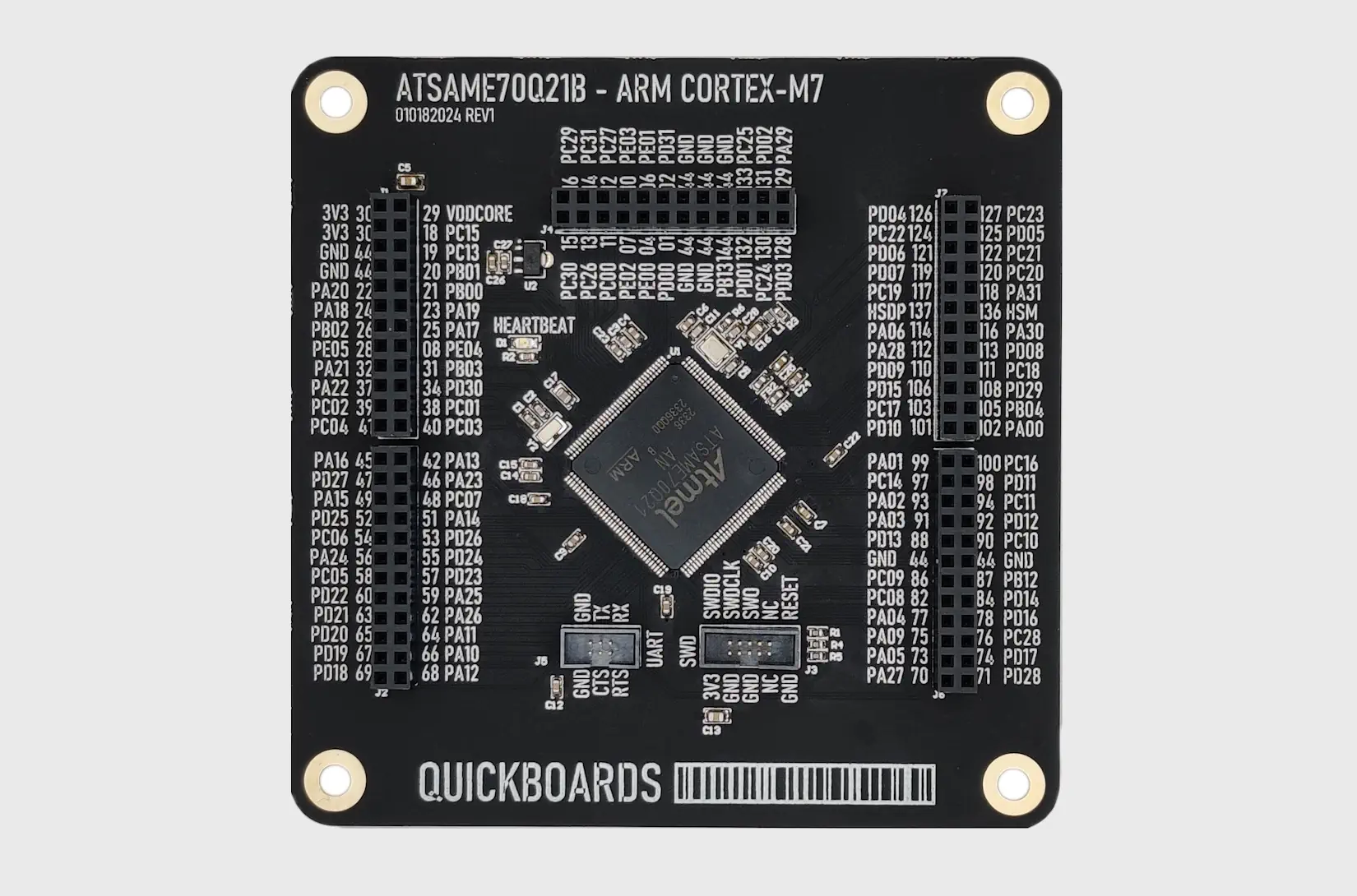

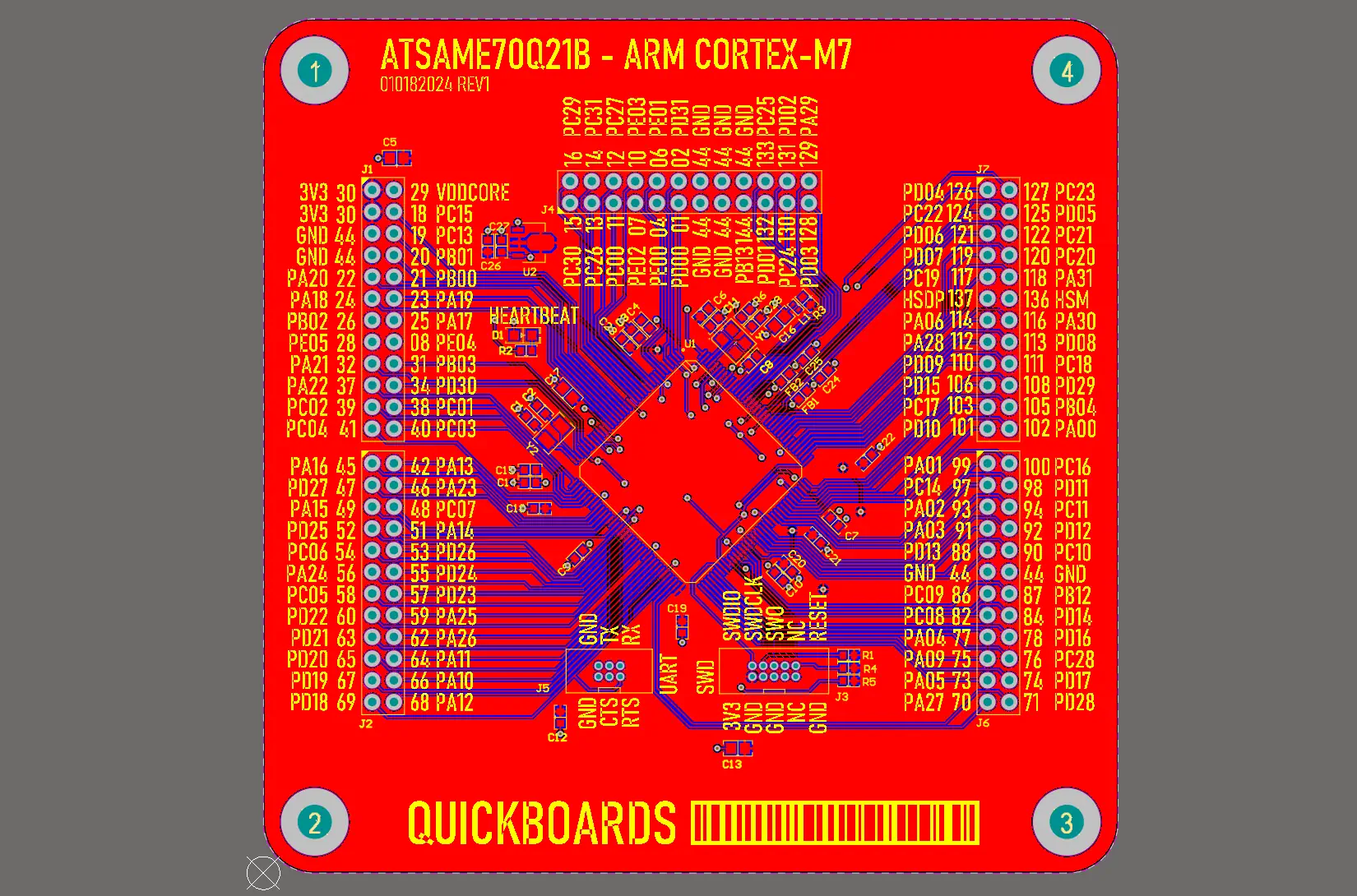

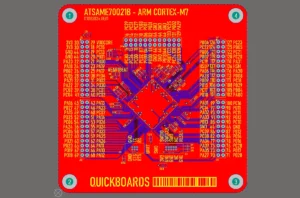

• Breakout board configuration for rapid prototyping

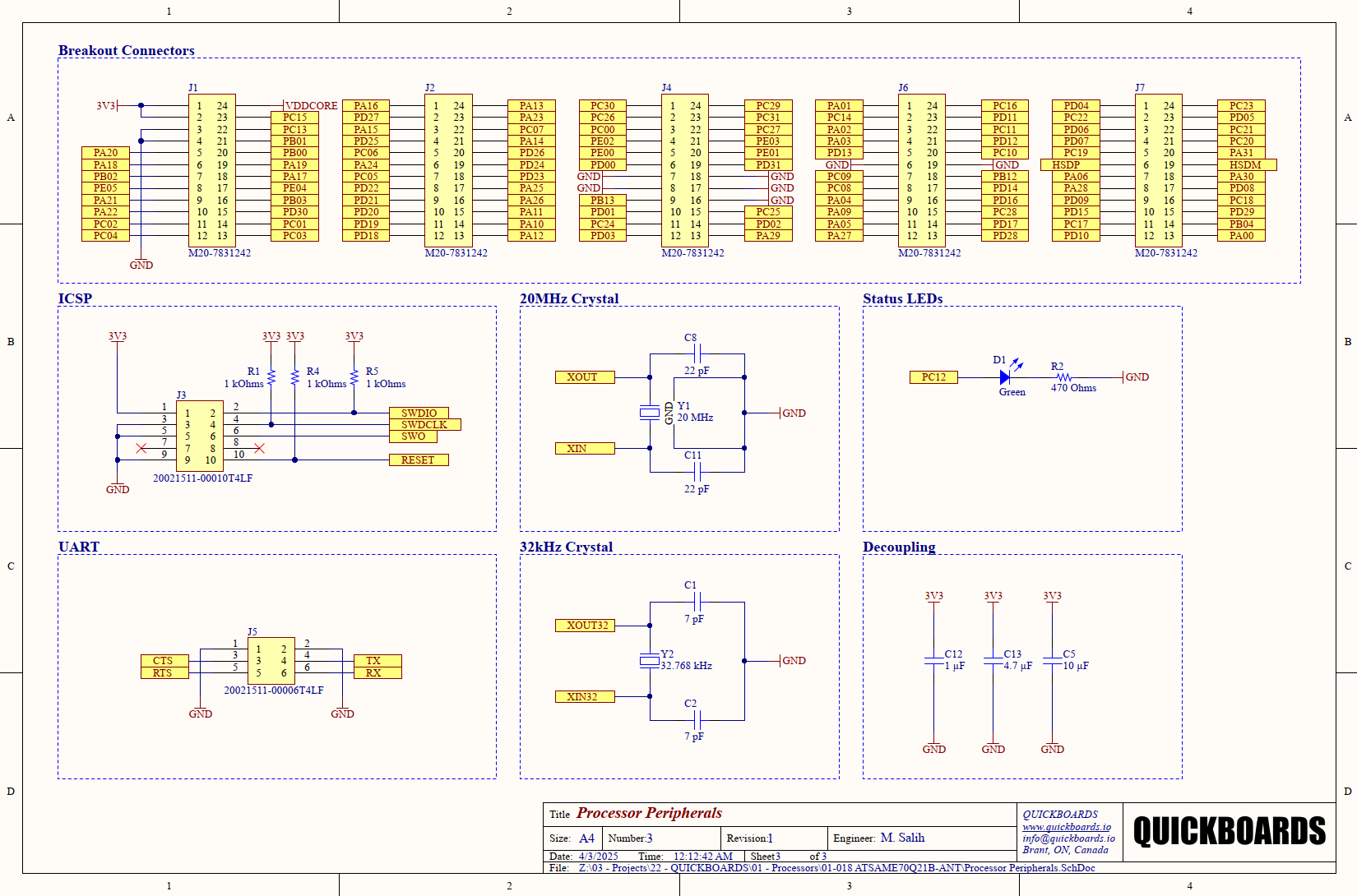

• Dedicated UART interface for communication
• SWD programming and debugging port
• Rich peripheral set with extensive connectivity options

Typical Applications:

• Industrial automation and control systems
• High-performance IoT devices and gateways
• Edge computing and real-time data acquisition
• Robotics and advanced motor control
• Secure communication systems
• Audio, imaging, and signal processing platforms

By leveraging this Quickboards schematic block, engineers can accelerate prototyping, reduce hardware development time, and build upon a proven reference design that integrates seamlessly with MPLAB X IDE, Atmel Studio, and ARM-based development toolchains.
