HB010052024 – DSPIC33 PROCESSOR BLOCK

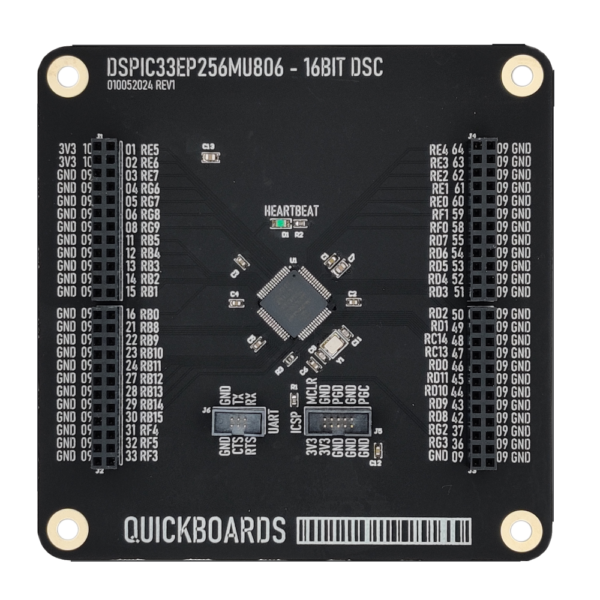

This hardware block features the dsPIC33EP256MU806-I/PT, a 16-bit Digital Signal Controller (DSC) from Microchip Technology’s dsPIC33EP series, integrated into a Quickboards breakout board for high-performance embedded control applications. Operating at 60 MIPS, it includes 256 KB of Flash memory and 53 KB of RAM, providing both real-time responsiveness and DSP-like processing capability.

Housed in a 64-TQFP package and mounted on a Quickboards hardware block, this breakout provides dedicated UART and ICSP programming/debug ports, ensuring straightforward development and testing. With its advanced peripherals, high-speed data handling, and efficient execution, the dsPIC33EP family is ideal for motor control, power electronics, digital signal processing, and industrial automation.

Key Features:

• 16-bit dsPIC33EP DSC breakout board
• 60 MIPS performance for real-time control
• 256 KB Flash memory and 53 KB RAM
• 64-TQFP package integrated on Quickboards hardware block
• Dedicated UART and ICSP programming/debug ports
• Advanced peripherals for motor control and DSP tasks
• Plug-and-play breakout board for fast prototyping

Typical Applications:

• Motor control and power conversion systems
• Industrial automation and robotics
• Embedded control with DSP capabilities
• Automotive and energy management systems
• Signal processing in measurement and monitoring devices

By leveraging this Quickboards hardware block, engineers can accelerate dsPIC-based development, simplify DSP-enabled prototyping, and rely on a production-ready module powered by the Microchip dsPIC33EP256MU806.
