SB040022024 – 3AXIS GYRO SCHEMATIC BLOCK

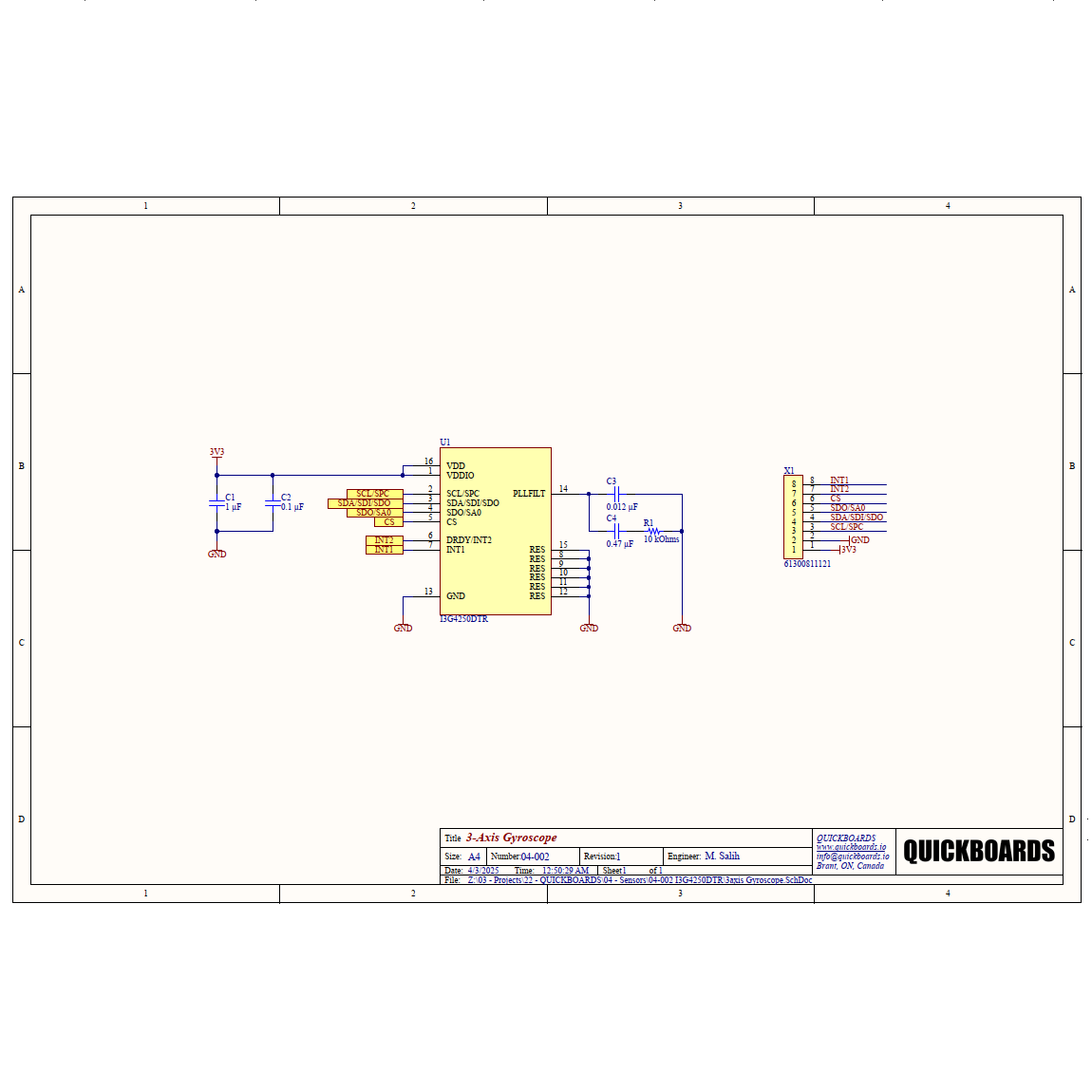

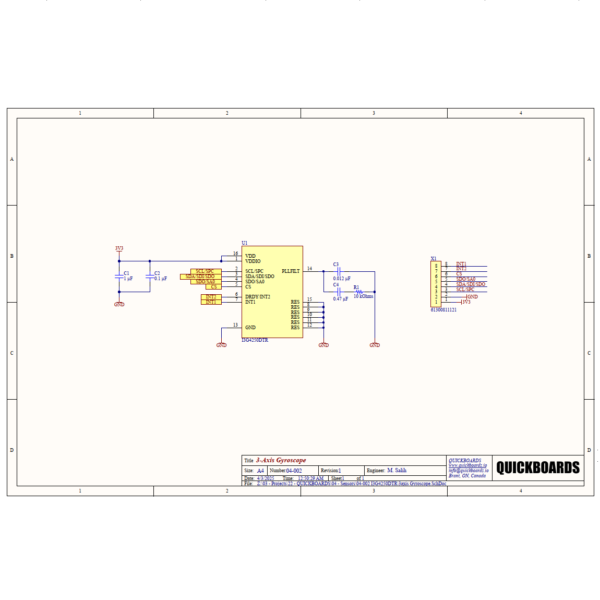

This schematic block features the I3G4250DTR, a 3-axis digital gyroscope from STMicroelectronics, designed for applications that require high stability, accuracy, and low noise performance. As part of ST’s MEMS motion sensor family, it provides precise angular rate measurements over digital output interfaces, making it easy to integrate into modern embedded systems.

Optimized for gaming, virtual reality, robotics, and motion-based controls, the I3G4250D offers excellent temperature stability and drift performance, ensuring accurate motion tracking even in demanding environments. Packaged in a compact 16-lead LGA, it fits seamlessly into space-constrained designs.

With this Quickboards schematic block, engineers gain access to a ready-to-use reference design, reducing development time and enabling faster integration into prototypes and production systems.

Key Features:

• 3-axis MEMS digital gyroscope
• High stability and low noise angular rate sensing
• Digital output for easy microcontroller interfacing
• Compact 16-lead LGA package
• Excellent temperature and drift stability
• Proven Quickboards schematic block for rapid prototyping

Typical Applications:

• Gaming and virtual reality (VR) systems
• Robotics and autonomous navigation
• Augmented reality (AR) devices
• Industrial motion sensing and stabilization
• Consumer electronics with motion control features

By using this Quickboards schematic block, engineers can accelerate design cycles, minimize risk, and rely on a proven motion sensing reference design built on the I3G4250DTR gyroscope.
