SB020022024 – 2-CH BOOST CONV SCHEMATIC BLOCK

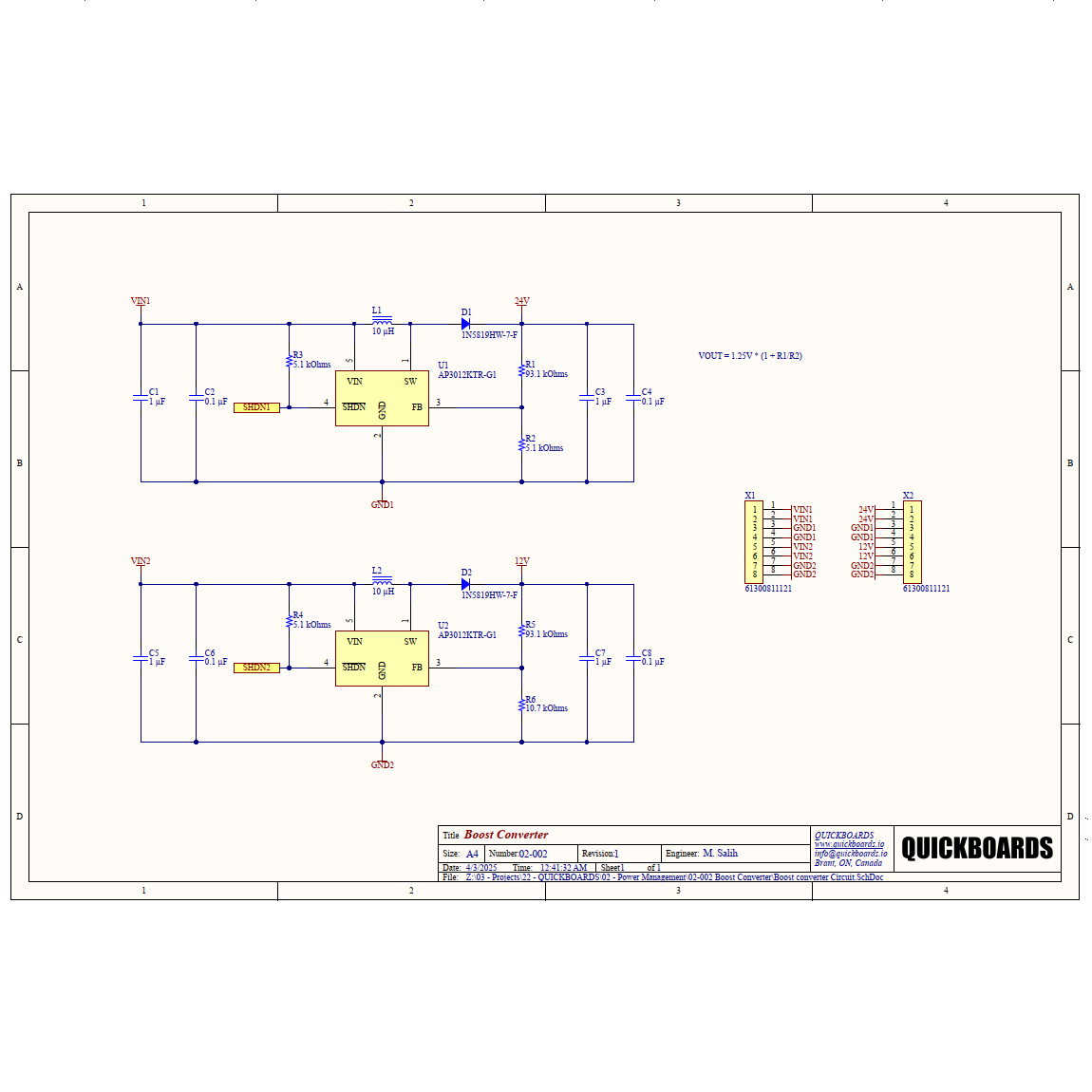

This schematic block features the AP3012KTR-G1, a compact boost switching regulator IC from Diodes Incorporated, configured into a 2-channel boost converter design. It steps up a 5V input to generate fixed 12V and 24V outputs, while also supporting a wide adjustable output voltage range from 1.25V up to 29V. With a 500 mA internal switch current capability, the AP3012 is ideal for powering peripherals, sensors, and sub-systems that require higher voltages from a low-voltage source.

Packaged in a tiny SOT23-5 package, the AP3012 delivers high efficiency and reliable operation in space-constrained designs. Integrated into a Quickboards schematic block, this dual-output configuration provides engineers with a ready-to-use reference design for step-up applications, saving both development time and system complexity.

Key Features:

• Boost switching regulator IC with 2-channel step-up configuration
• Generates fixed 12V and 24V from a 5V input
• Adjustable output voltage range: 1.25V to 29V
• 500 mA internal switch current capability
• Compact SOT23-5 package for space-limited applications
• Quickboards schematic block for fast prototyping

Typical Applications:

• Step-up conversion in embedded and portable devices
• Generating higher rails for sensors and actuators
• Industrial and consumer electronics power supplies
• Battery-powered systems requiring 12V/24V outputs
• LED drivers and small motor control circuits

By using this Quickboards schematic block, engineers can accelerate step-up converter design, reduce risks, and integrate a proven dual-output boost regulator design based on the AP3012KTR-G1.
