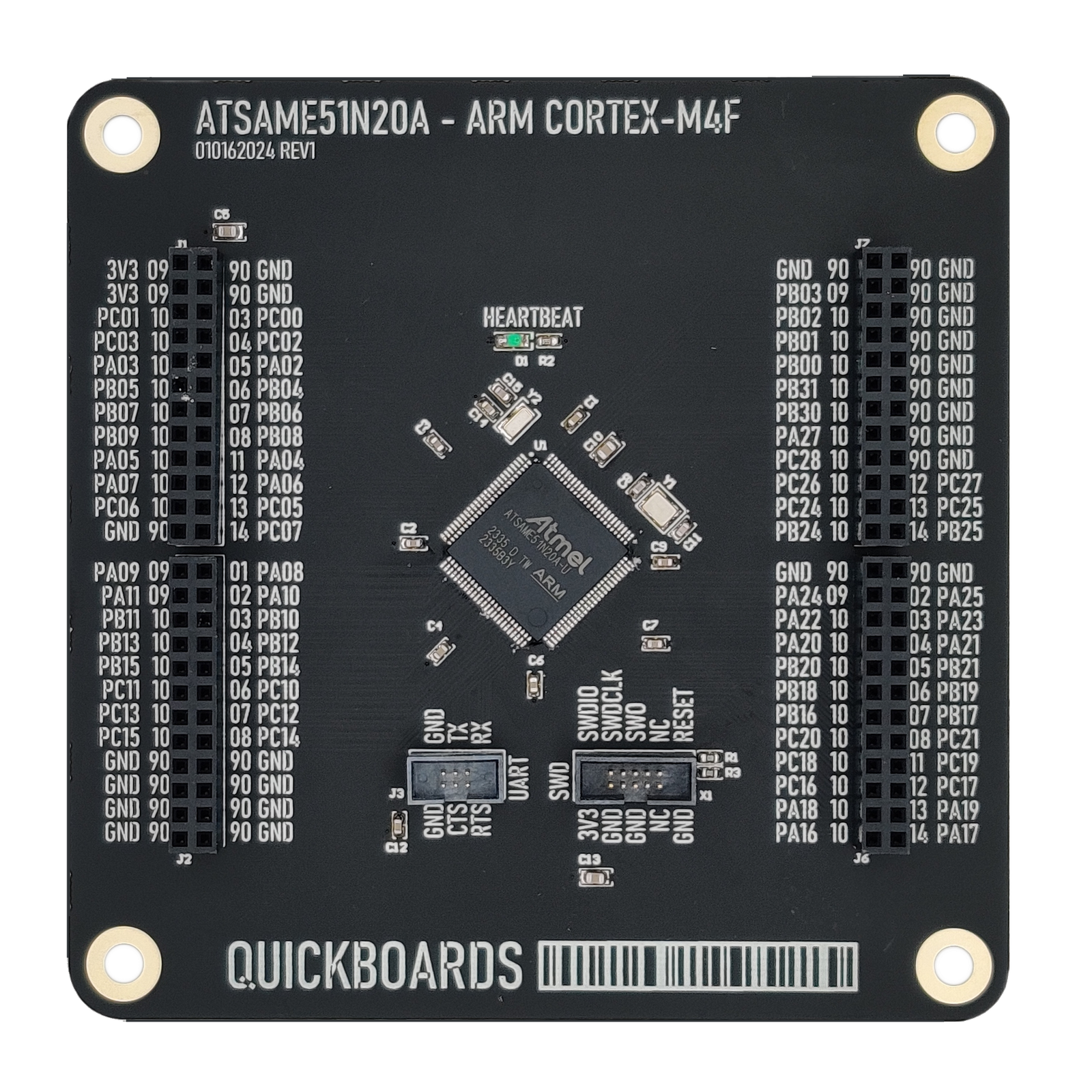

HB010162024 – ATSAME51 PROCESSOR BLOCK

This hardware block features the ATSAME51N20A-AU, a high-performance 32-bit microcontroller from Microchip Technology’s SAM E51 series, integrated into a Quickboards breakout board for advanced embedded development. Powered by an ARM® Cortex®-M4F core running at 120 MHz, it includes 1 MB of Flash memory and 256 KB of SRAM, delivering exceptional performance for demanding applications.

Housed in a 100-TQFP package and mounted on a Quickboards hardware block, this breakout provides dedicated UART and SWD programming/debug ports, ensuring easy programming, debugging, and integration. With its rich set of advanced peripherals, DSP capability, floating-point support, and integrated security features, the ATSAME51 is ideal for IoT, industrial automation, robotics, and secure embedded systems.

Key Features:

• 32-bit ARM® Cortex®-M4F microcontroller breakout board
• Runs at 120 MHz with DSP and floating-point support
• 1 MB Flash memory and 256 KB SRAM
• Advanced peripherals and hardware security features
• 100-TQFP package integrated on Quickboards hardware block
• Dedicated UART and SWD ports for programming and debugging
• Plug-and-play Quickboards breakout for rapid prototyping

Typical Applications:

• IoT devices and secure edge computing
• Robotics and motor control systems
• Industrial automation and monitoring
• Consumer electronics and high-performance controllers
• Embedded systems requiring DSP and floating-point processing

By leveraging this Quickboards hardware block, engineers can accelerate ARM Cortex-M4F development, reduce system complexity, and deploy a production-ready microcontroller module built around the Microchip ATSAME51.
