HB010142024 – ATSAMD20E PROCESSOR BLOCK

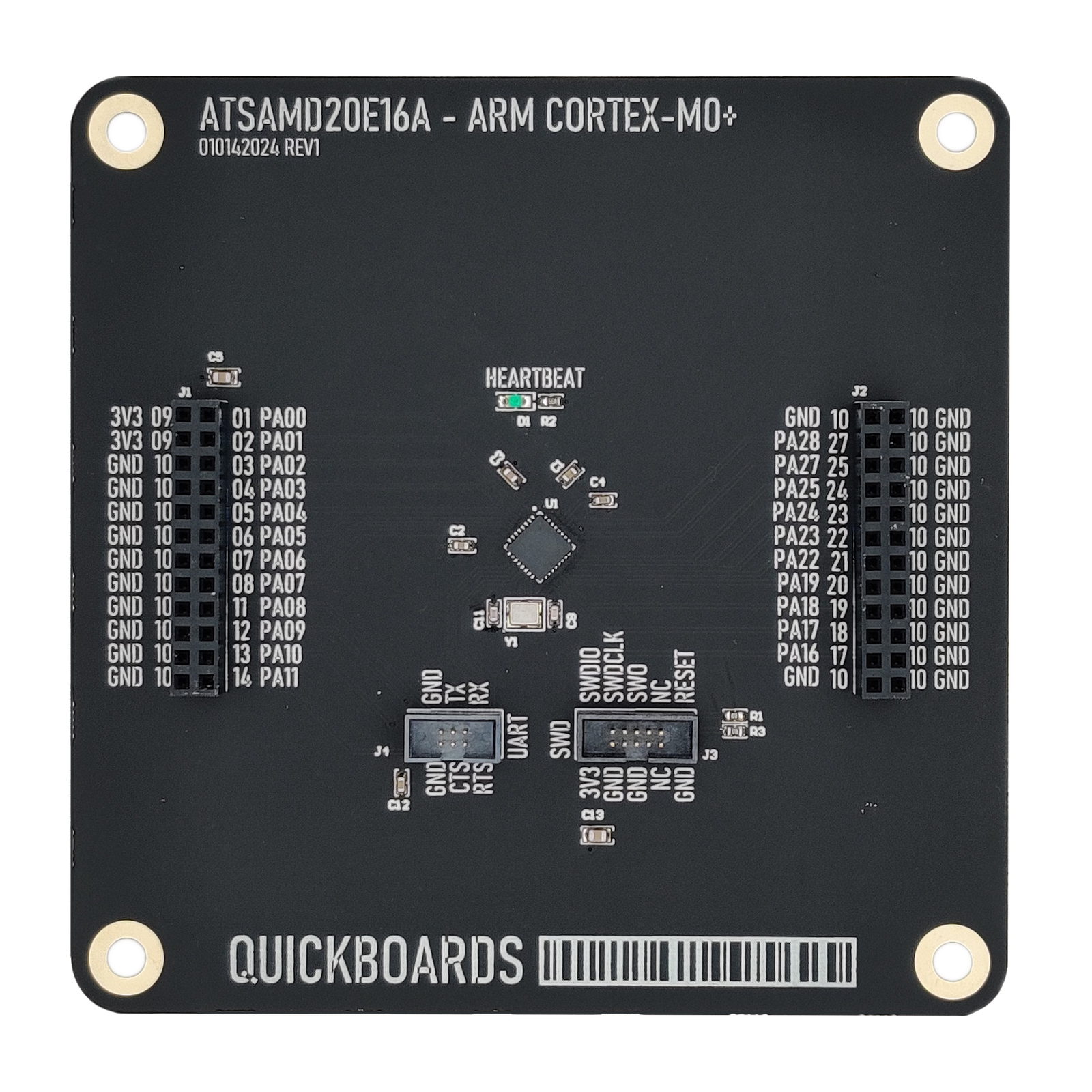

This hardware block features the ATSAMD20E16A-MNT, a 32-bit microcontroller from Microchip Technology’s SAM D20E series, integrated into a Quickboards breakout board for low-power, high-performance embedded development. Built around the ARM® Cortex®-M0+ core running at 48 MHz, it includes 64 KB of Flash memory and 8 KB of SRAM, providing the right balance of speed, efficiency, and memory for modern applications.

Packaged in a 32-QFN and mounted on a Quickboards hardware block, this breakout includes dedicated UART and SWD programming/debug ports, making it simple to program, test, and integrate. With its low power consumption and scalable performance, the ATSAMD20E is well-suited for IoT, consumer electronics, and industrial control systems.

Key Features:

• 32-bit ARM® Cortex®-M0+ microcontroller breakout board
• Operates at 48 MHz with low power consumption
• 64 KB Flash memory and 8 KB SRAM
• Compact 32-QFN package mounted on Quickboards hardware block
• Dedicated UART and SWD programming/debug ports
• Plug-and-play Quickboards hardware block for rapid prototyping

Typical Applications:

• IoT and connected devices
• Consumer electronics and wearables
• Industrial monitoring and control
• Sensor interfacing and automation systems
• Educational and prototyping platforms

By leveraging this Quickboards hardware block, engineers can accelerate ARM Cortex-M0+ development, reduce design complexity, and rely on a production-ready microcontroller module built on the Microchip ATSAMD20E16A.
