HB010022024 – PIC18F PROCESSOR BLOCK

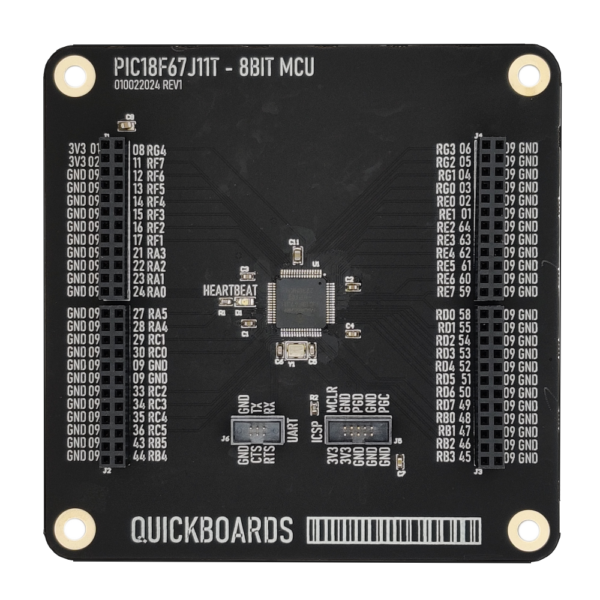

This hardware block features the PIC18F67J11T-I/PT, an 8-bit microcontroller from Microchip Technology’s PIC18F series, integrated into a Quickboards breakout board for embedded system development. Operating at up to 48 MHz, it includes 128 KB of Flash memory and 3.8 KB of RAM, delivering enhanced performance and storage compared to classic 8-bit MCUs.

Housed in a 64-TQFP package and mounted on a Quickboards hardware block, this breakout provides dedicated UART and ICSP programming/debug ports, making it simple to program, test, and integrate. With its multiple communication interfaces (UART, SPI, I²C, CAN) and extended peripheral set, the PIC18F series is well-suited for networked devices, industrial control, and embedded applications requiring reliable connectivity.

Key Features:

• 8-bit PIC18F microcontroller breakout board
• Operates at 48 MHz with 128 KB Flash and 3.8 KB RAM
• 64-TQFP package mounted on Quickboards hardware block
• Dedicated UART and ICSP programming/debug ports
• Multiple communication interfaces (UART, SPI, I²C, CAN)
• Plug-and-play breakout for embedded prototyping

Typical Applications:

• Industrial automation and control systems
• Networking and connected embedded devices
• Consumer electronics and IoT designs
• Robotics and motor control platforms
• Educational and prototyping projects

By leveraging this Quickboards hardware block, engineers can accelerate PIC18F-based development, simplify prototyping, and depend on a production-ready microcontroller module built around the Microchip PIC18F67J11.
