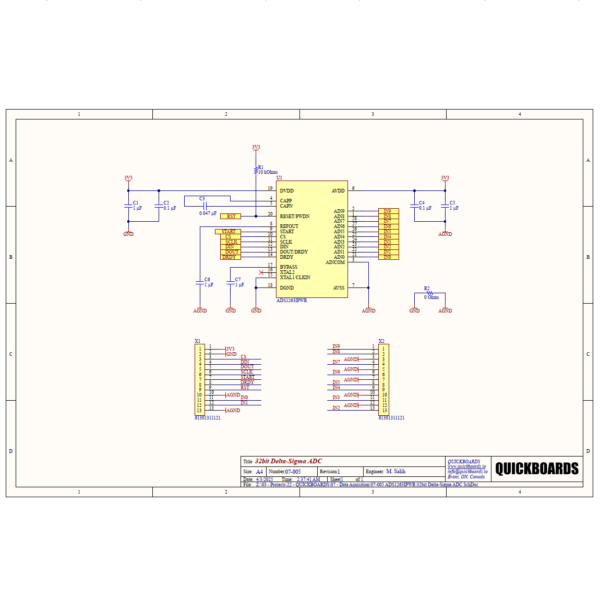

SB070052024 – 32BIT ADC SCHEMATIC BLOCK

This schematic block features the ADS1263IPWR, a 32-bit, 10-channel Delta-Sigma Analog-to-Digital Converter (ADC) from Texas Instruments, engineered for ultra-high precision sensor measurement applications. Operating at a data rate of up to 38.4 kSPS, it delivers exceptionally low noise performance, making it ideal for instrumentation and monitoring systems where accuracy is critical.

The ADS1263 integrates a Delta-Sigma conversion architecture with excellent linearity, precision, and noise rejection. Its 10 analog input channels and advanced digital filter options provide engineers with design flexibility for multiplexed measurement systems. Housed in a 28-pin TSSOP package, it balances compact size with high performance for industrial and scientific applications.

As part of a Quickboards schematic block, this ADC is delivered with a ready-to-use reference design, enabling engineers to rapidly prototype high-accuracy measurement systems while reducing design time and integration risks.

Key Features:

• 32-bit Delta-Sigma ADC with 10 input channels
• Data rate up to 38.4 kSPS
• Low noise and ultra-high precision performance
• Digital filtering for optimized measurement accuracy
• 28-pin TSSOP package for compact designs
• Quickboards schematic block for rapid prototyping

Typical Applications:

• Precision sensor interfacing (temperature, pressure, strain gauges)
• Industrial automation and control systems
• Scientific instrumentation and research equipment
• Energy monitoring and power analysis
• Medical devices requiring high-resolution measurements

By using this Quickboards schematic block, engineers can accelerate high-precision measurement system development, reduce risks, and rely on a proven reference design built on the Texas Instruments ADS1263 ADC.
