Exploring the 5 Microchip Processor Blocks in Quickboards

Microcontrollers form the backbone of embedded systems, powering everything from IoT devices to industrial automation. Quickboards simplifies the development process by offering modular microcontroller blocks that integrate seamlessly into your designs. In this post, we highlight five powerful Microchip-based processor blocks featured in Quickboards and their unique strengths.

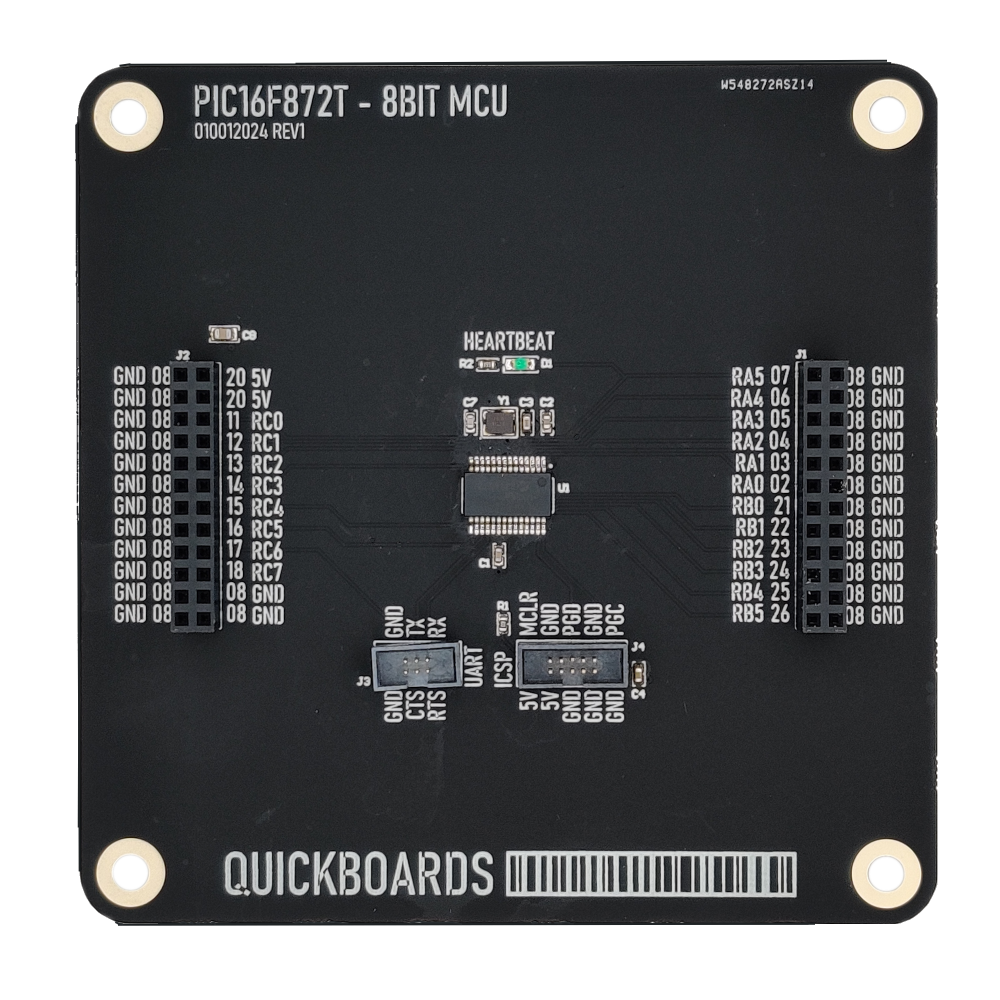

PIC16F872T-I/SS – Compact & Efficient 8-bit MCU

The PIC16F872 is a robust 8-bit microcontroller designed for low-power applications. With its 10-bit ADC, SPI, I²C, and UART interfaces, it is ideal for sensor interfacing, motor control, and simple automation tasks. This processor block is perfect for projects that need reliable performance with minimal power consumption. It delivers approximately 5 MIPS (Million Instructions Per Second) at its maximum clock speed.

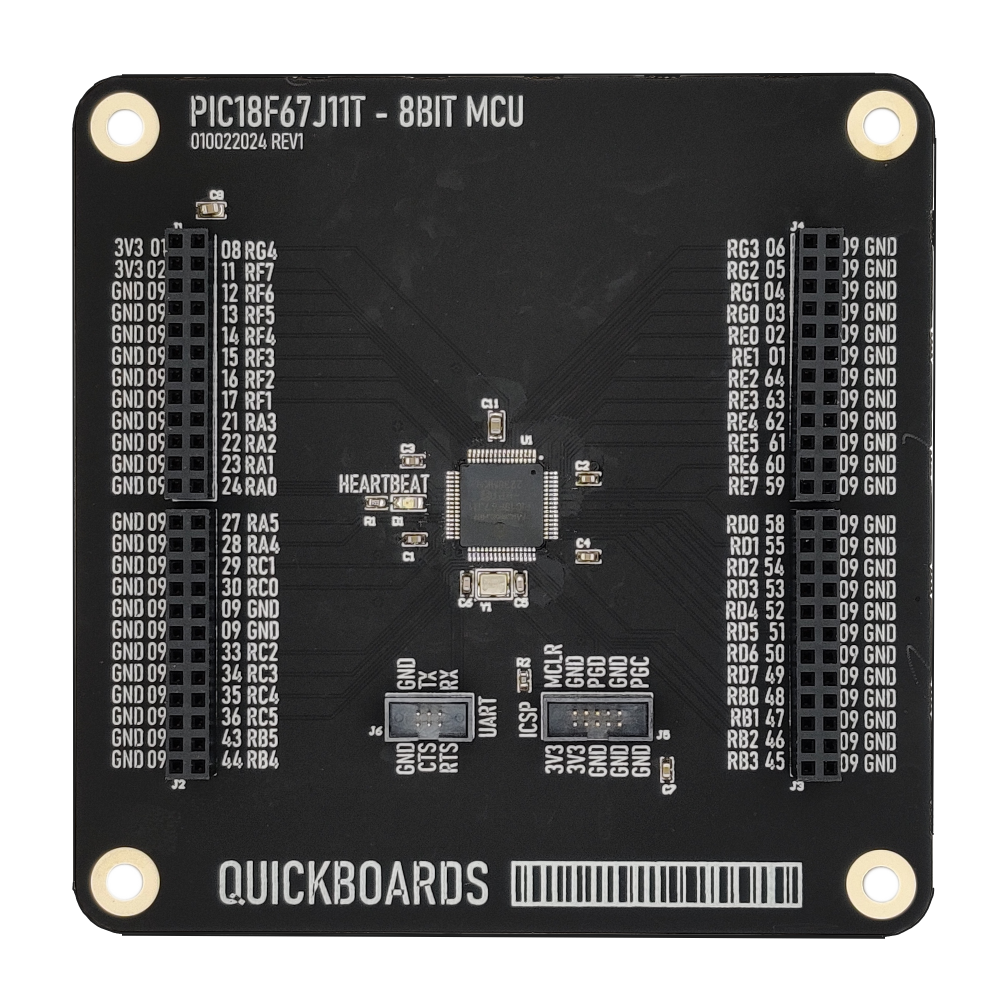

PIC18F67J11T-I/PT – Performance-Driven 8-bit MCU

For applications demanding enhanced memory and performance, the PIC18F67J11 delivers. Featuring a high clock speed, multiple serial communication ports, and extensive I/O, this microcontroller is suited for advanced industrial control systems and complex embedded solutions. It offers up to 16 MIPS at peak performance.

PIC24FJ128GA006-I/PT – Versatile 16-bit MCU

Stepping up to the 16-bit realm, the PIC24FJ128GA006 offers greater processing power and efficiency. With 128KB of Flash memory, USB 2.0 support, and a low-power design, it is well-suited for medical devices, energy-efficient applications, and real-time control systems. This MCU is capable of 16 MIPS, providing a balance between power efficiency and performance.

PIC32MX795F512LT-80I/PT – High-Performance 32-bit MCU

The PIC32MX795F512L provides 32-bit processing power for demanding applications. With 512KB Flash, multiple communication interfaces, and Ethernet support, this microcontroller block excels in high-speed data processing, networked applications, and advanced automation. It delivers up to 100 MIPS, making it ideal for computation-heavy tasks.

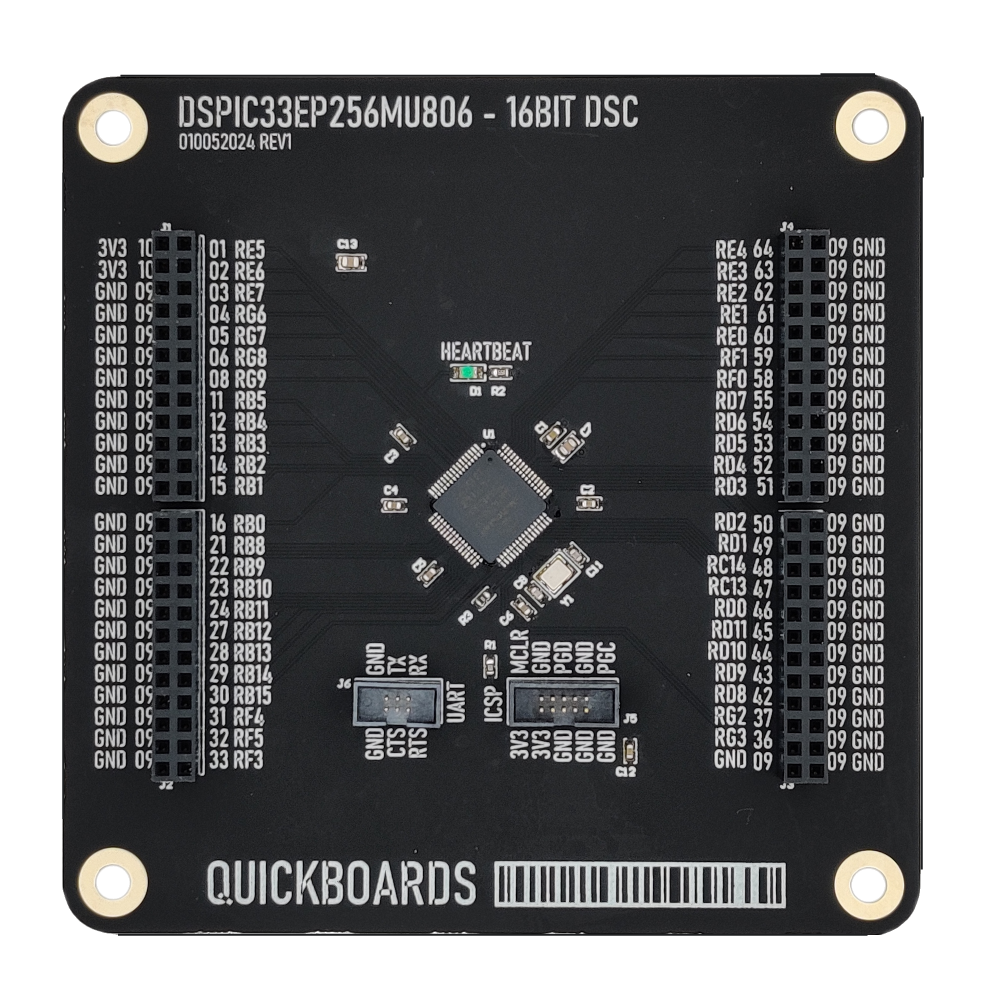

DSPIC33EP256MU806-I/PT – DSP-Enabled 16-bit MCU

For applications requiring real-time signal processing, the dsPIC33EP256MU806 offers a perfect blend of DSP and MCU functionality. With high-speed computation, motor control peripherals, and advanced analog features, it is an excellent choice for audio processing, power electronics, and precision control systems. This processor is capable of 70 MIPS, making it highly suitable for signal-intensive applications.

Modular Integration with Quickboards

Each of these Microchip processor blocks is designed for seamless modular integration. Whether you need a low-power solution, high-speed processing, or advanced signal handling, Quickboards ensures that development is efficient, flexible, and scalable. By leveraging these pre-designed processor blocks, engineers can accelerate prototyping and reduce time-to-market.

Are you ready to streamline your embedded system development? Explore Quickboards and harness the power of these Microchip processor blocks today!

Interested in the schematics? Request below.
