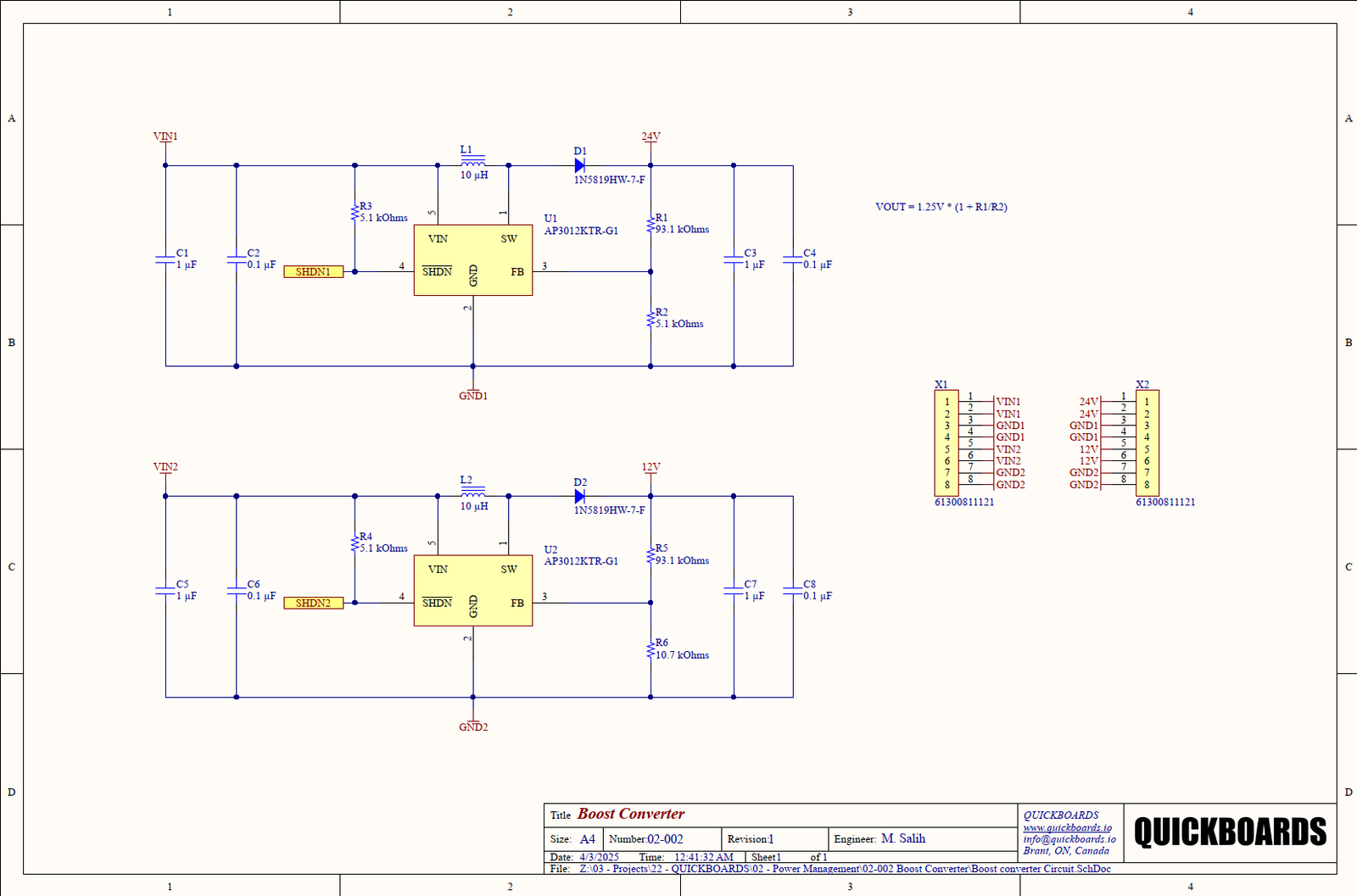

The Quickboards Evaluation Kit provides fully validated, production-ready reference circuits designed for immediate integration into your PCB layout workflow. Downloading the kit grants access to native Altium Designer and KiCad source files—including complete schematics, multi-layer layouts, IPC-compliant footprint libraries, and sample subcircuits such as a DC-DC step-down and step up converters, PIC18F breakout + peripherals, USB-C Power Delivery Sink and a USB-UART Bridge.

Every circuit block is bench-tested to eliminate first-spin PCB errors and built to IPC-2221A and IPC-7351B standards. Files include optimized trace routing, thermal vias, pre-calculated component parameters, and a complete BOM with active DigiKey and Mouser part numbers. Engineers can paste these pre-engineered blocks directly into active projects, eliminating repetitive component creation and cutting initial design setup from days to minutes.
