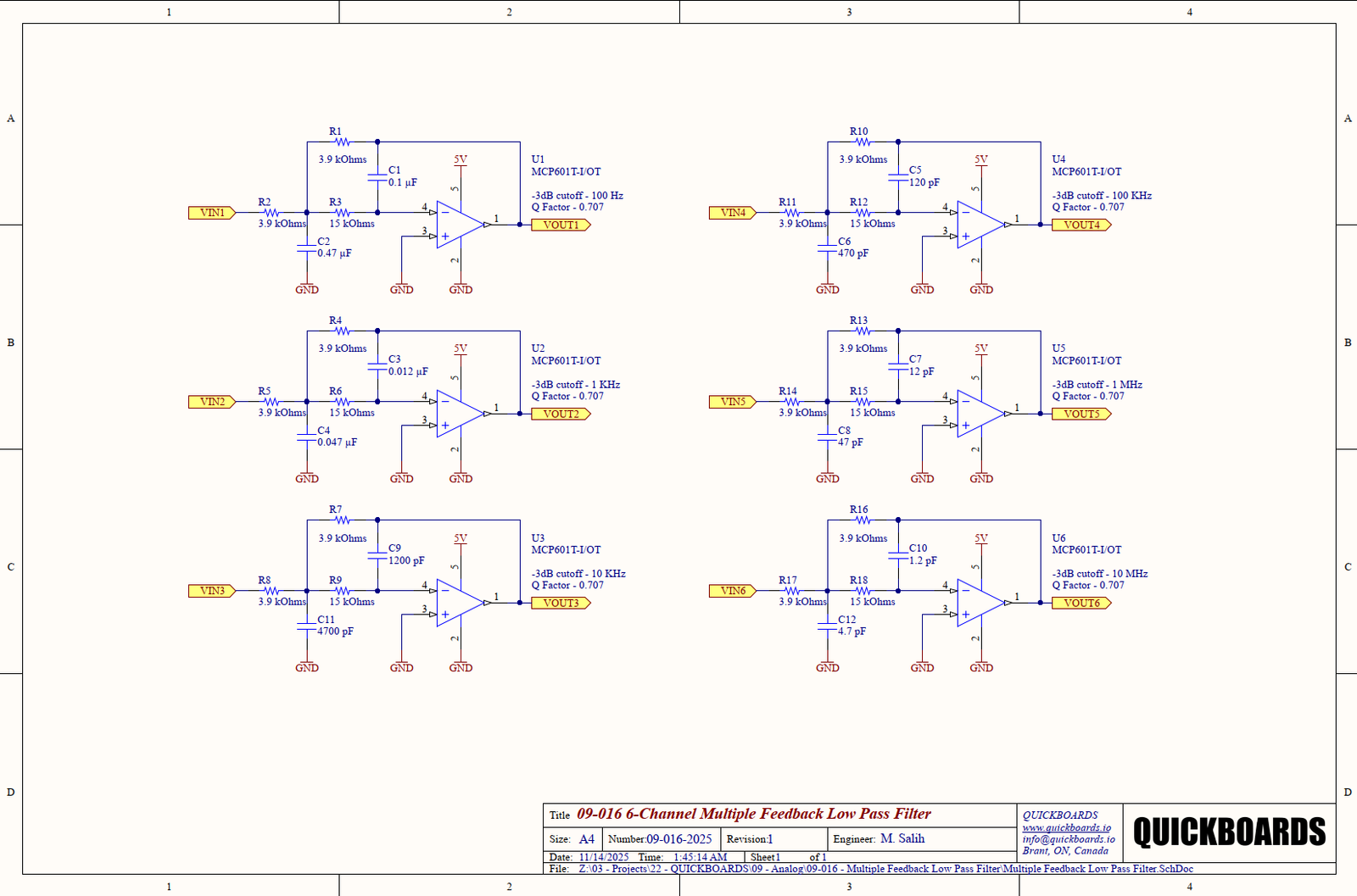

A technical schematic for a 6-channel Multiple Feedback Low Pass Filter. The page features six identical active filter circuits arranged in two columns, labeled VIN1 through VIN6. Each circuit utilizes an MCP601T op-amp with varying capacitor and resistor values to achieve specific -3dB cutoff frequencies ranging from 100 Hz to 10 MHz.

SB090162025 – MCP601T-I/OT MULTIPLE FEEDBACK LOW PASS FILTER SCHEMATIC BLOCK

MCP601T-I/OT — 6CH MFB HPF

SKU: SB090162025 Categories: ,
Primary IC

MCP601T-I/OT
IC Datasheet

https://ww1.microchip.com/downloads/en/DeviceDoc/21314g.pdf
Associated Hardware

HB090162025
