HB010182024 – ATSAME70 PROCESSOR BLOCK

This hardware block features the ATSAME70Q21B-ANT, a high-performance 32-bit microcontroller from Microchip Technology’s SAM E70 series, integrated into a Quickboards breakout board for advanced embedded system development. Built on the powerful ARM® Cortex®-M7 core running at 300 MHz, it includes 2 MB of Flash memory and 384 KB of SRAM, making it one of the most capable MCUs in the SAM family.

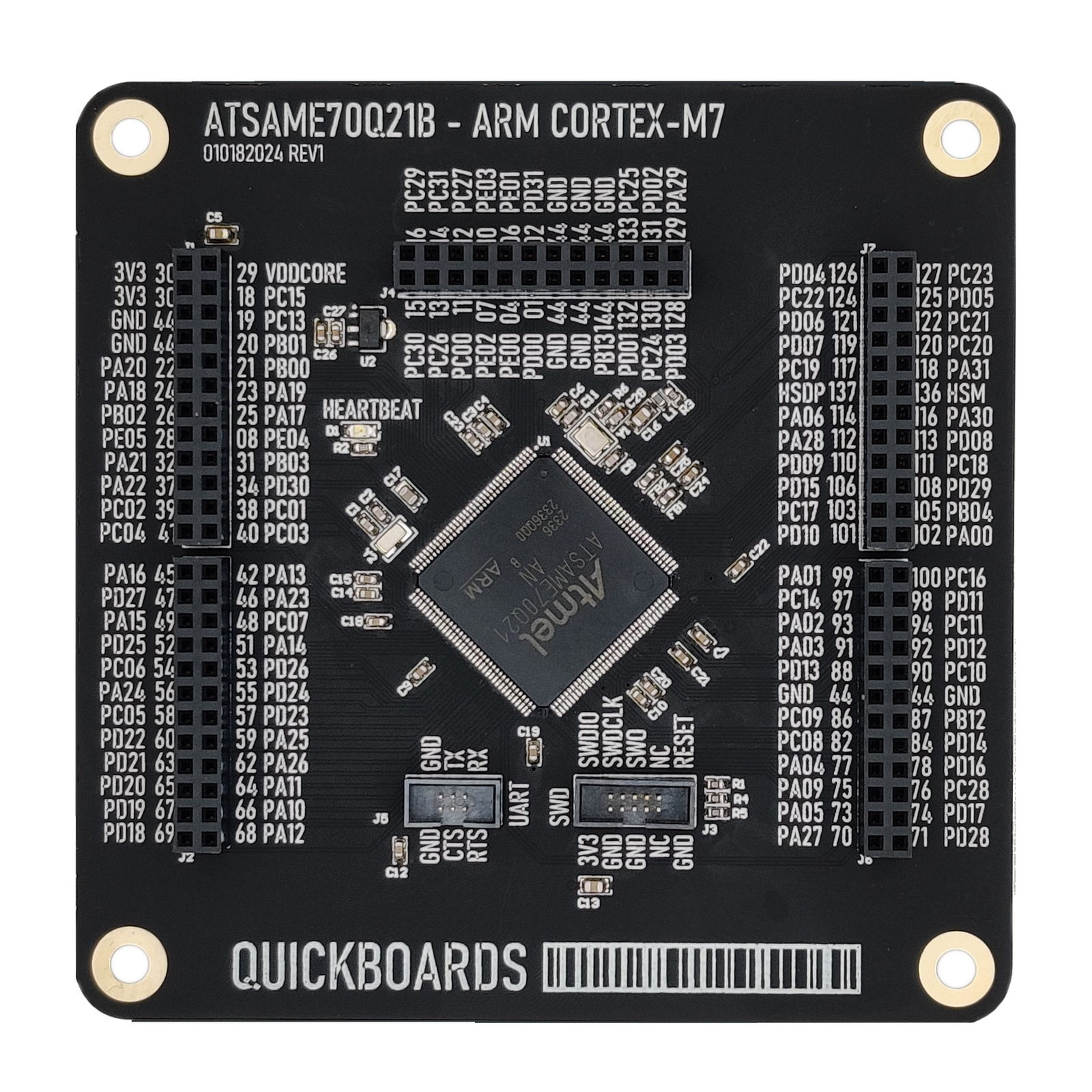

Housed in a 144-LQFP package and mounted on a Quickboards hardware block, this breakout board provides dedicated UART and SWD programming/debug ports for straightforward integration and debugging. Featuring extensive connectivity options, DSP capability, and high-speed performance, the ATSAME70 is an excellent choice for industrial automation, robotics, IoT gateways, and high-end embedded applications.

Key Features:

• 32-bit ARM® Cortex®-M7 microcontroller breakout board
• Operates at 300 MHz for maximum processing power
• 2 MB Flash memory and 384 KB SRAM
• 144-LQFP package integrated on Quickboards hardware block
• Dedicated UART and SWD ports for programming and debugging
• Extensive peripherals and connectivity support
• Plug-and-play Quickboards breakout for prototyping and deployment

Typical Applications:

• Industrial automation and process control
• IoT gateways and connected devices
• Robotics and motor control systems
• High-end consumer and professional electronics
• Embedded platforms requiring maximum performance and connectivity

By leveraging this Quickboards hardware block, engineers can accelerate Cortex-M7 development, simplify prototyping, and rely on a production-ready microcontroller module built around the Microchip ATSAME70.
